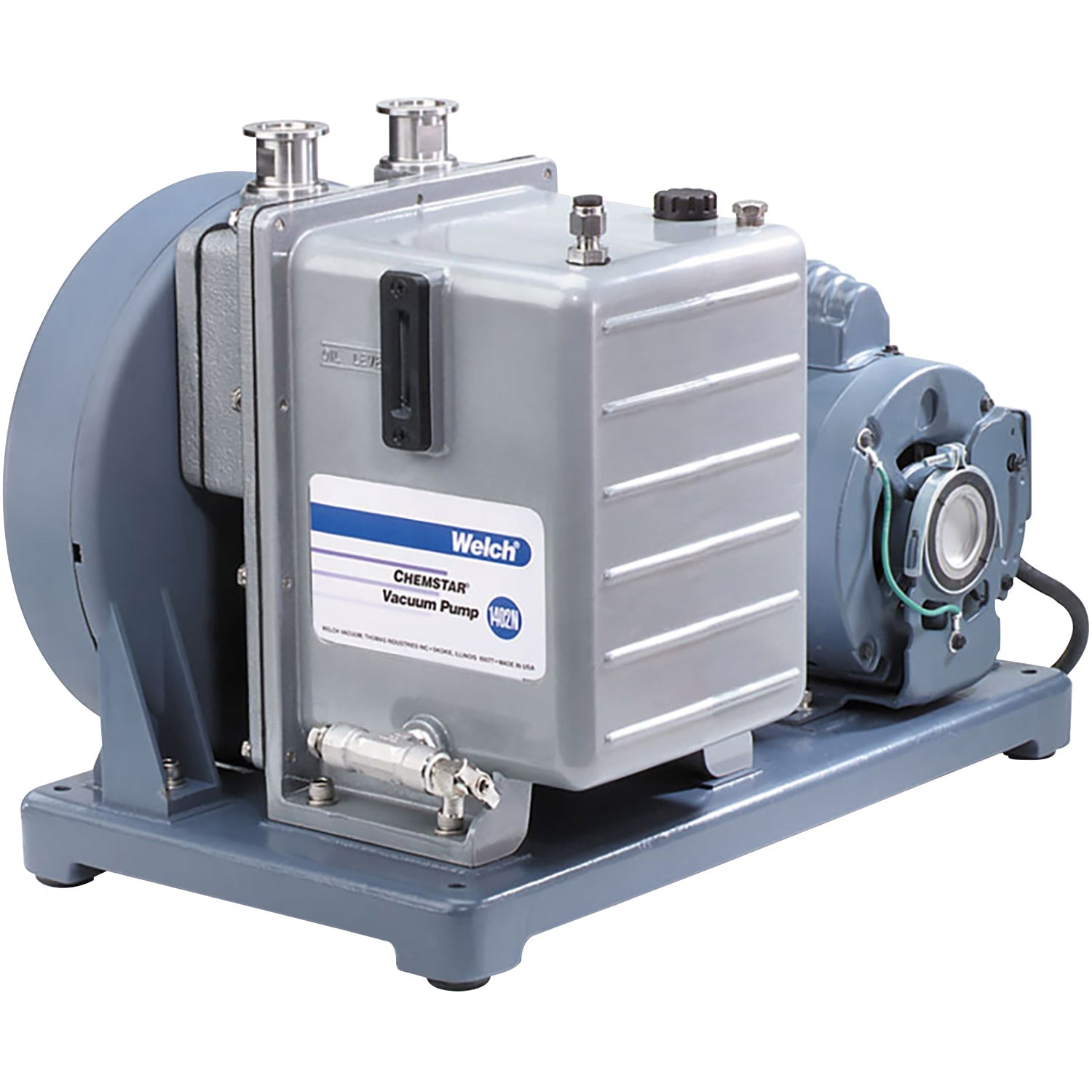

Welch 1402N-60 Chemstar Vacuum Pump

Price Each

Quantity

Action

Price:

$ 3,233.60

 $ 3,760.00
Quantity:
1402N-60
General Description The Chemstar pumps have a Teflon lined oil case and additional chemically resistant parts, making the Chemstar pump the best choice for harsh process emissions where an oil sealed vacuum pump is necessary.                                                    ChemStar high vacuum pump Model 1402N provides versatile effectiveness for corrosive drying operations throughout the laboratory.  With ultimate vacuum <0.001 torr, and maximum 160 lpm flow, Model 1402N is the pump of choice for vacuum ovens (to 250 l), metal glove boxes, and freeze drying of corrosive samples.
What's included 3 liters Gold oil, 8995G-11
Common accessory, not included Exhaust filter 1417P-10
Pumping Speed 5.6 CFM (160 l/min)
Max. Vacuum 0.0013 mbar
Oil Capacity 2.25 qt(2.1 l)
Tubing Needed 13/16"(21 mm)
Exhaust ./ Intake Flange NW 25
Pump RPM 525
Dimensions LxWxH 49x35.3x39.1 cm
Weight 112 lb (51 kg)
Wiring 230V, 60 hz
1402N-60
General Description The Chemstar pumps have a Teflon lined oil case and additional chemically resistant parts, making the Chemstar pump the best choice for harsh process emissions where an oil sealed vacuum pump is necessary.                                                    ChemStar high vacuum pump Model 1402N provides versatile effectiveness for corrosive drying operations throughout the laboratory.  With ultimate vacuum <0.001 torr, and maximum 160 lpm flow, Model 1402N is the pump of choice for vacuum ovens (to 250 l), metal glove boxes, and freeze drying of corrosive samples.
What's included 3 liters Gold oil, 8995G-11
Common accessory, not included Exhaust filter 1417P-10
Pumping Speed 5.6 CFM (160 l/min)
Max. Vacuum 0.0013 mbar
Oil Capacity 2.25 qt(2.1 l)
Tubing Needed 13/16"(21 mm)
Exhaust ./ Intake Flange NW 25
Pump RPM 525
Dimensions LxWxH 49x35.3x39.1 cm
Weight 112 lb (51 kg)
Wiring 230V, 60 hz

Brochures

Accessories

  • Brochure Manual
  • Accessory Welch 1393G ISO Adapter NW25 for 1405, 1402, 1376
  • Accessory Welch 1416C-01
  • Accessory Welch 1416D
  • Accessory Welch Exhaust Filter 1417P-10

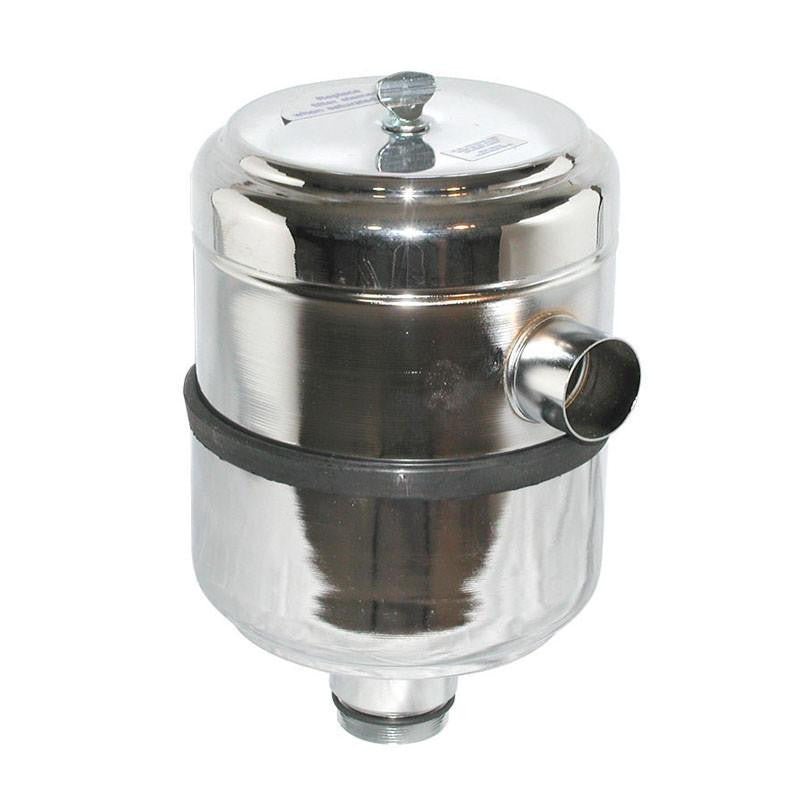

  • Accessory Welch 1417A DIRECTIONAL EXHAUST FILTER
  • Accessory Welch 1401D-01
  • Accessory Welch 1417P-7 Exhaust Filter
  • Accessory Welch 1402K-09 Chemstar MINOR REPAIR KIT, for 1402N Vacuum Pump
  • Accessory Welch 1402K-10 Chemstar MAJOR REPAIR KIT, for 1402N Vacuum Pump
