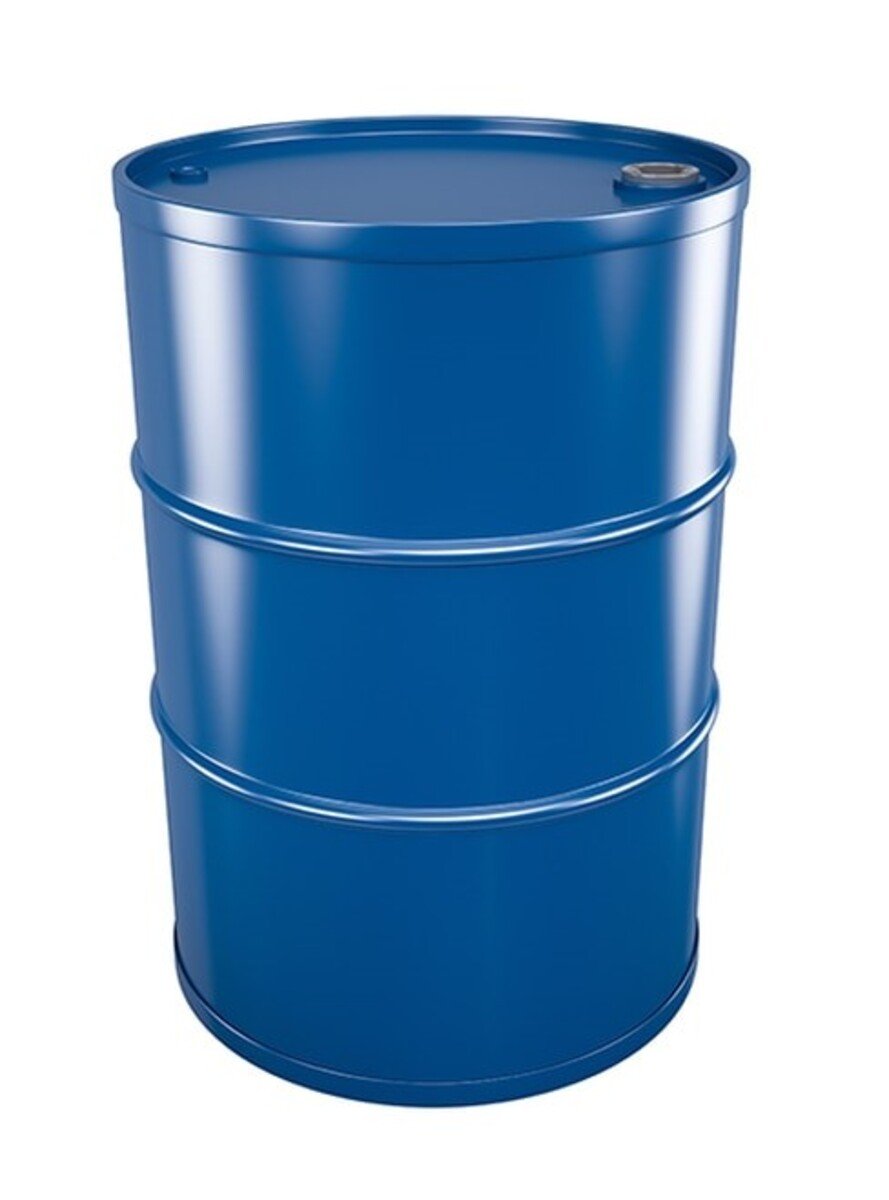

Plus FF Flushing Fluid, 208 Liter (55 gal), PPFF220
Recommended Flushing Fluid Procedure
WARNING: Use P+ FLUSHING FLUID only in pumps made for hydrocarbon oils
- Place a small amount of P+ FLUSHING FLUID in a container and set aside. This is to compare against flushing fluid that is drained from the pump after completing these steps
- Run the pump till it’s up to standard operating temperature, then disconnect from electrical supply.
- Open the drain port to drain the existing hydrocarbon oil while the pump is still warm. Tilt the pump so as much of the used oil is drained from the pump and if possible, rotate the pump mechanism manually to ensure most of the oil has been drained.
- Close the drain and refill the pump with the P+ FLUSHING FLUID as you would do it with your standard oil after a change.
- Connect the pump to electrical supply and other connections (e.g. exhaust filter, etc).
- Turn the pump on and leave it running till it’s up to standard operating temperature (or close to). If pump has a gas ballast, then alternately open and close the valve to help stirring the flushing fluid in the pump.
- Disconnect the pump from electrical supply and drain the P+ FLUSHING FLUID as you would on a normal oil change.
- Take a small amount of the drained P+ FLUSHING FLUID and compare color and sediment levels to the original sample taken in the first step.
- If there is a big discrepancy in color and sediment, you should consider doing a second flushing.
- When the drained P+ FLUSHING FLUID is close to the origin color, then drain it completely and close the drain port.
- Proceed by filling your pump with your new hydrocarbon oil and the pump is ready for use.
General product classifications
| Family | Plus FF |
| Pump models | 005 009 013 017 023 1005 1010 1015 1021 2005 2010 2015 2021 1021SD 2021SD 1005C 1005CP 1010C 1010CP 1015C 1015CP 1021C 1021CP 2005C 2010C 2010CP 2015C 2015CP 2021C 2021CP 1005SD 1010SD 1015SD 1373 1374 1376 1376N 1402N 1397 1398 1399 1400 1400N 1402 1405 2004AC 2008AC 2012AC 2020AC 2005CP 2005C1 2005C2 2005I 2010C1 2010C2 2010I 2015C1 2015C2 2015I 2021C1 2021C2 2021I 2005SD 2010SD 2015SD 2012CP 2020CP 2033 2063 2033C 2063C 2033C1 2033C2 2033CP 2033CP+ 2063CP 2063CP+ 2033SD 2063C2 2063C1 2063SD 8806 8811 8814 8816 8821 8851 8905 8905A 8910A 8907A 8912A 8917A 8915 8920 8915A 8920A 8925A D05 D08 D12 D18 D28 D1.2E D2.5E D1.6B D1.8B D10E D10E 2 SERIES D150 D16A D16AC D16B D16BCS D16E D25 D2A D2AC D4A D4AC D2AL D4AL D8A D8AL D16 D16AL D30A D30AC D60A D60AC D90A D90AC S30A S30AC S60A S60AC S90A S90AC D330K D330DK D4B D8B D5 D5E D650K D650DK D75 D8AC D950K D950DK DS102 DS202 DS302 DS402 DS602 DS42 DUO004A DUO1.5A DUO1.6 DUO3 UNO6 DUO10 DUO10C DUO2.5 DUO2.5C DUO5 DUO20 DUO5C DUO20C DUO30A E1M175 E1M275 E2M175 E1M18 E2M18 E2M275 E1M40 E2M40 E1M80 E2M80 E2M0.7 E2M1 E2M1.5 E2M12 E2M2 E2M28 E2M30 E2M2 E2M5 E2M8 E2M5 EMF10 EMF20 EMF3 EMF30 M12C M16C M2C M4C M6C M8C MF100 MF100A MF100AE MF300 RV12 RV3 RV5 RV8 S16B S4A S8A S8B SV100 SV180 SV100B SV120B SV10B SV16B SV1200 SV16 SV25 SV200 SV25B SV280 SV300 SV300B SV40 SV65 SV40B SV65B SV500 SV630 SV750 SV500B SV630B SV630BF SV750B SV750BF SV585 SV630F U3.6 U4.100 U4.100D U4.100F U4.100G U4.100H U4.165 U4.165E U4.165F U4.190 U4.190E U4.190F U4.20 U4.250 U4.250E U4.250F U4.40 U4.400 U4.630 U4.630D U4.400D U4.70 U4.70D U4.70E U4.70F U4.70G U4.70H UNO004A UNO008A UNO012A DUO008A DUO012A UNO1.5A UNO30M VD301 VD401 VS1501 VS2401 |
| Category | Fluids, Grease, & Oil |
| Subcategory | Flushing Fluid |
| Sub-subcategory | PLUS FF |
| Material | Flushing Fluid |
| Spec dimensions | 23" Dia X 35" Lg |
| Weight | 200.00 kg |
| Country of origin | US |
| Manual page | FLUIDS&OILS-2 |
