Major Repair Kit without Oil Pump Rotor 100000348KITNR
Used on Leybold Trivac D5E
Major Service Kit includes; Vanes, hardware, gaskets, demister filters, springs, O-rings, seals, Valves, spacers, and other components for a major overhaul
General product classifications
Brand | Leybold |
Family | Trivac |
Pump models | D5E |
Category | Repair Kits |
Subcategory | Major Kit |
Country of origin | US |

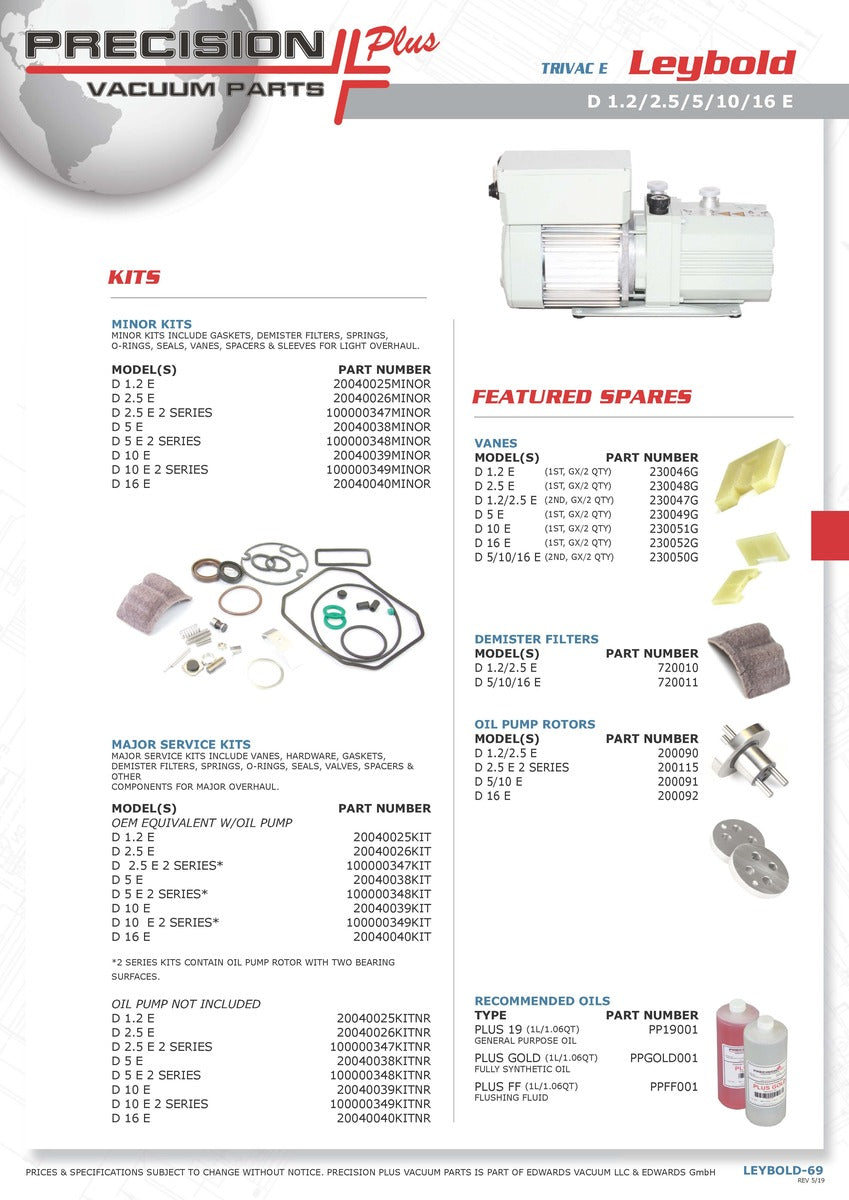

Manual page | LEYBOLD-69 |
Part number alternatives | 100000348MINOR 100000348KIT |
PART NUMBER | DESCRIPTION | QUANTITY |
---|---|---|
490023 | Compression Spring, Leybold, Trivac, Part# 490023 | 1 |
490025 | Compression Spring, Vane, Leybold, Trivac, Part# 490025 | 1 |
490035 | Compression Spring - Leybold, Trivac, Part# 490035 | 1 |
490026 | Compression Spring, Conical, Leybold, Trivac, D2.5E, D5E, Part# 490026 | 1 |
580032 | Valve, Nib, Viton - Leybold, Trivac, Part# 580032 | 1 |
580033 | Tandem Valve, Steel, Leybold, Trivac, D2.5E, D5E, Part# 580033 | 1 |
580035 | Bracket Valve - Leybold, Trivac, Part# 580035 | 1 |
580037 | Valve Holder, Leybold, Trivac, Part# 580037 | 1 |
580041 | Stopper Valve, Steel, Leybold, Trivac, D2.5E, D5E, Part# 580041 | 1 |
640013 | Tube Insert, Leybold, Trivac, Part# 640013 | 4 |
720011 | Demister Filter, Leybold Trivac, Part# 720011 | 1 |
300045 | ring Gasket, Viton-Leybold Trivac, Part# 300045 | 1 |
300044 | Sight Glass Gasket, Leybold, Trivac, D2.5E, D5E, Part# 300044 | 1 |
PL23973146 | Seal, Float, Leybold, Trivac, Part# PL23973146 | 1 |
PL23970436 | O-ring, 27 x 2.5 mm - Viton, Part# PL23970436 | 1 |
PL23970211 | O-ring, 50 x 3 mm - Viton, Part# PL23970211 | 1 |
230050G | Vane, 2nd Stage - GX, Leybold, Trivac, Part# 230050G | 2 |
230049G | Vane, 1st Stage - GX, Leybold, Trivac, Part# 230049G | 2 |
P23955165 | Leybold Gasket, Viton, Part# P23955165 | 2 |
PL20010289 | O-ring, 27 x 3 mm - Viton, Part# PL20010289 | 2 |
490022 | Compression Spring, Leybold, Trivac, D2.5E, D5E, Part# 490022 | 1 |
490020 | Spring, Restrictor Retainer, Leybold, Trivac, D2.5E, D5E, Part# 490020 | 1 |
450031 | Guide Pin, Vane, Stainless Steel-Leybold Trivac, Part# 450031 | 1 |
440022 | Spacer ring, Aluminium, 11.5 x 8 x 1 mm, Leybold, Trivac, Part# 440022 | 1 |
420033 | Flat Washer, Leybold, Trivac, Sogevac, Part# 420033 | 6 |
420032 | Washer, Orifice-Leybold Trivac, Part# 420032 | 1 |
PL40050135 | Valve, Leybold, Trivac, D2.5E, D5E, Part# PL40050135 | 1 |
400066 | Screw M5 x 16 mm, Leybold, Trivac, Part# 400066 | 4 |
400065 | Screw, M5 x 6 mm, Leybold, Trivac, Part# 400065 | 1 |
400064 | Screw, M5 x 10 mm, Leybold, Trivac, Part# 400064 | 2 |
400063 | Screw, M5 x 20 mm, Leybold, Trivac, Part# 400063 | 4 |
400062 | Screw, M5 X 40 mm, Leybold, Trivac, Part# 400062 | 2 |
400060 | Screw, M5 x 90 mm, Leybold, Trivac, Part# 400060 | 2 |
360052 | Coupler, Sleeve, Leybold, Trivac, Part# 360052 | 4 |
PL34861028 | Non - Return Valve, Leybold, Trivac, Part# PL34861028 | 1 |
320160 | O-ring, 8.2 x 2.4 mm - Viton, Part# 320160 | 4 |
320118 | O-ring, 119X3 mm - Viton, Part# 320118 | 1 |
310050 | Shaft Seal, Lip - without Dust Lip- Leybold Trivac, Part# 310050 | 1 |
310049 | Shaft Seal, Lip with Dust Lip, Leybold, Trivac, D2. 5E, D5E, Part# 310049 | 1 |
300050 | Oil Box Gasket, Viton-Leybold Trivac, Part# 300050 | 1 |
300048 | Flat Gasket, Viton- Leybold Trivac, Part# 300048 | 1 |
