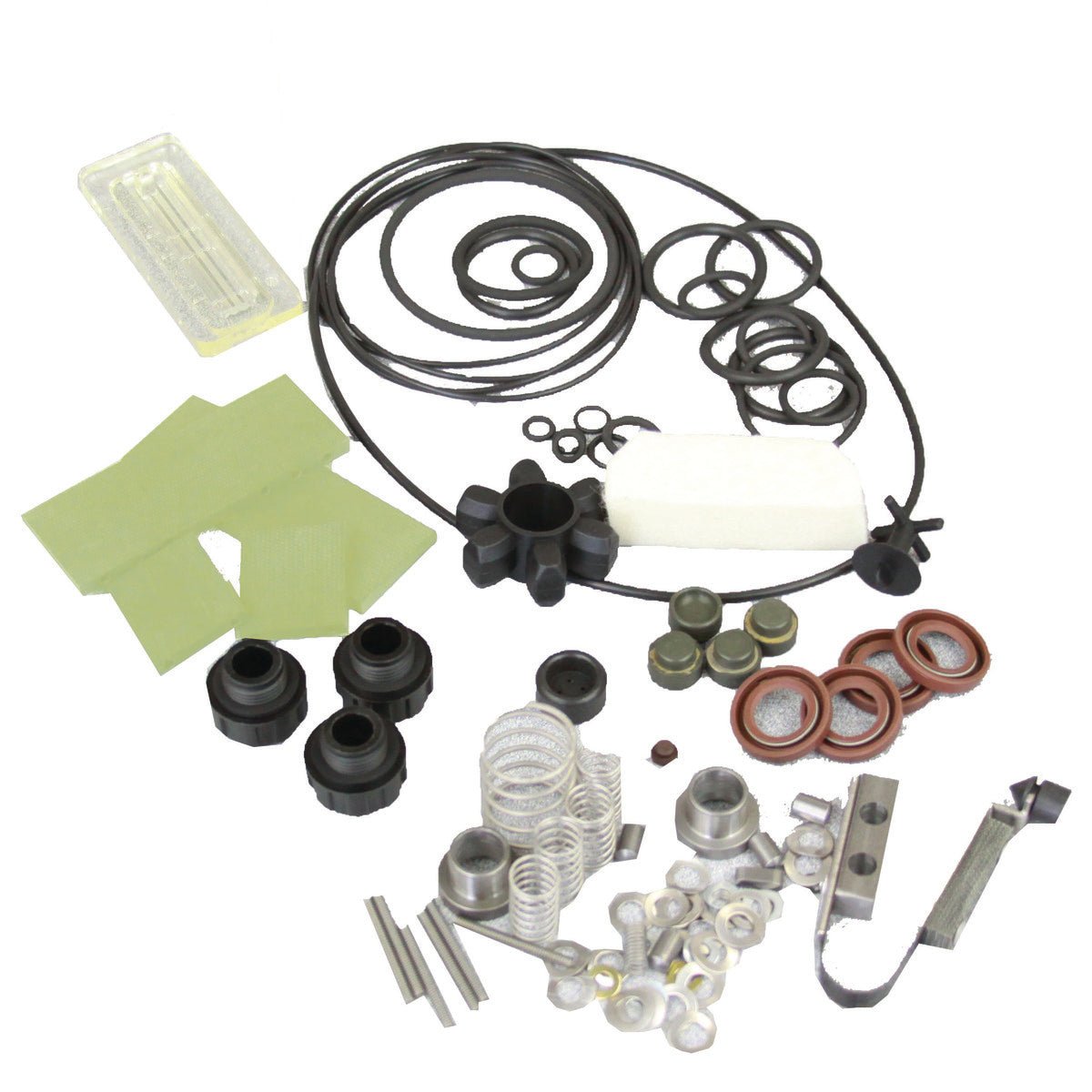

Major Repair Kit with GX Vanes - Alcatel/Adixen 1021SD, 104644FR
Used on Alcatel-Adixen Pascal 1021SD
For complete kit content details see bill of materials below
General product classifications
| Brand | Alcatel-Adixen |
| Family | Pascal |
| Pump models | 1021SD |
| Category | Repair Kits |
| Subcategory | Major Kit |
| Country of origin | US |
| Manual page | ALCATEL-9 |
| PART NUMBER | DESCRIPTION | QUANTITY |
|---|---|---|
| 71161 | C-Clip, Alcatel-Adixen, Precision Scientific, Varian-Agilent, Part# 71161 | 1 |
| 71040 | Centring Pin, Alcatel-Adixen, Precision Scientific, Varian-Agilent, Part# 71040 | 4 |
| 71067 | Shaft Key, Alcatel-Adixen, Precision Scientific, Part# 71067 | 1 |
| 65799 | Spring, Alcatel - Adixen, Precision Scientific, Varian - Agilent, Part# 65799 | 1 |
| 65797 | Spring, Alcatel - Adixen, Precision Scientific, Varian - Agilent, Part# 65797 | 1 |
| 65791 | Valve, Alcatel - Adixen, Precision Scientific, Varian - Agilent, Part# 65791 | 1 |
| 65784 | Alcatel-Adixen,Precision Scientific,Varian-Agilent Sight Glass, Part# 65784 | 1 |
| 65759FR | Alcatel-Adixen, Precision Scientific, Varian-Agilent Vane, 1st Stage - GX, Part# 65759FR | 2 |
| 580031 | Gas Ballast Sleeve, Alcatel-Adixen, Precision Scientific, Varian-Agilent, Part# 580031 | 1 |
| 53040 | Alcatel-Adixen, Precision Scientific, Varian-Agilent Vane Spring, Part# 53040 | 8 |
| 52553 | Elastic Coupler, Alcatel-Adixen, Precision Scientific, Varian-Agilent, Part# 52553 | 1 |
| 52541 | Valve Spring, Alcatel - Adixen, Precision Scientific, Varian - Agilent, Part# 52541 | 4 |
| 420029 | Flat Washer, Steel-Alcatel-Adixen Pascal, Part# 420029 | 2 |
| 40005 | O-ring, 9.25 x 1.78 mm - Viton, Part# 40005 | 1 |
| 53760 | Anti-Suckback Nib, Buna, Alcatel-Adixen, Precision Scientific, Part# 53760 | 1 |
| 250010 | Alcatel-Adixen,Precision Scientific,Varian-Agilent Shouldering Ring, Coated, Part# 250010 | 1 |
| P52700 | Alcatel-Adixen, Precision Scientific, Varian-Agilent Anti-Suckback Lever, Viton, Pat# P52700 | 1 |
| 82604 | Plug, Drain, Plastic, Alcatel-Adixen, Precision Scientific, Varian-Agilent, Part# 82604 | 3 |
| 82063 | Alcatel-Adixen,Precision Scientific,Varian-Agilent Shaft Seal, Viton, Part# 82063 | 4 |
| 390007 | Valve Disk, Alcatel - Adixen, Precision Scientific, Varian - Agilent, Part# 390007 | 4 |
| 720007 | Felt Pad, Alcatel-Adixen, Precision Scientific, Varian-Agilent, Part# 720007 | 1 |
| 320035 | O-ring, 17.12 x 2.62mm - Viton, Part# 320035 | 3 |
| 320036 | O-ring, 12.1 x 2.7 mm - Viton, Part# 320036 | 1 |
| 79537 | O-ring, 7.5 x 1.5 mm - Viton, Part# 79537 | 1 |
| 82004 | O-ring, 5.7 x 1.9 mm - Viton, Part# 82004 | 3 |
| 82007 | O-ring, 10.77 x 2.62 mm - Viton, Part# 82007 | 1 |
| 82014 | O-ring, 34.1 x 3.6 mm - Viton, Part# 82014 | 1 |
| 82025 | O-ring, 29.3 x 3.6 mm - Viton, Part# 82025 | 4 |
| 320067 | O - ring, 63.09 x 3.53 mm - Viton, Part# 320067. | 1 |
| 320109 | O-ring, 33 x 2.5 mm - Viton, Part# 320109 | 1 |
| 340024 | Anti-Suckback Device, Viton-Alcatel-Adixen, Precision Scientific, Varian-Agilent Pascal, DD Series, P/PX Series, PC/PCX Series, SD Series, CD Series, CP Series, Part# 340024 | 1 |
| 79513 | O-ring, 90 x 2 mm - Viton, Part# 79513 | 4 |
| 79509 | O-ring, 28 x 3 mm - Viton, Part# 79509 | 1 |
| 79148 | O-ring, 165 x 3 mm - Viton, Part# 79148 | 1 |
| 73460 | Wave Washer, M6, Alcatel-Adixen, Precision Scientific, Varian-Agilent, Part# 73460. | 19 |
| 73453 | Wave Washer, M5, Alcatel-Adixen, Precision Scientific, Varian-Agilent, Part# 73453 | 1 |
| 73452 | Wave Washer, M4 -Alcatel-Adixen, Precision Scientific, Varian-Agilent Pascal, Chemical Series, DD Series, P/PX Series, PC/PCX Series, SD Series, CD Series, Part# 73452 | 4 |
