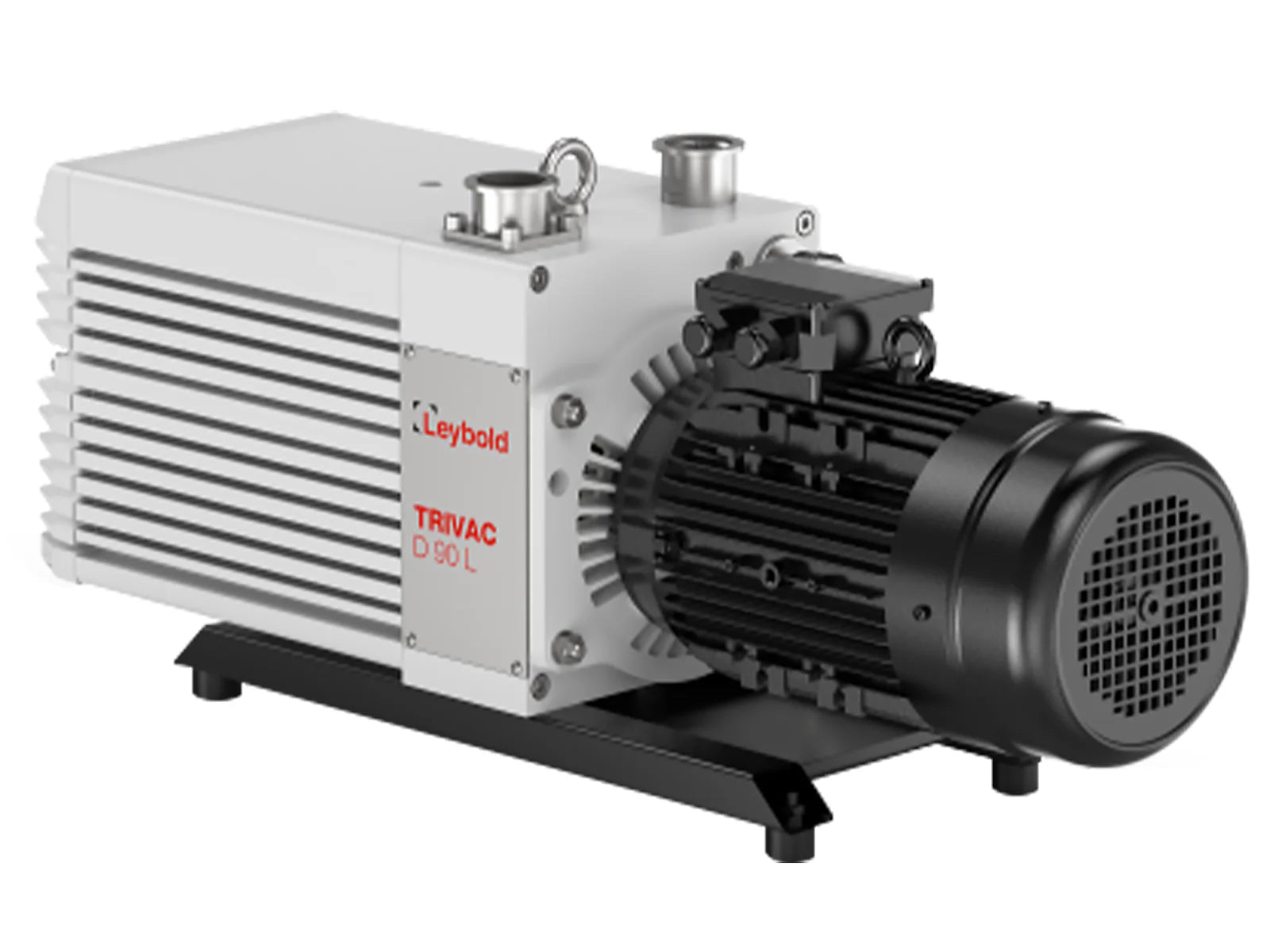

1019090V01 Leybold TRIVAC D90L Rotary Vane Vacuum Pump 110 m³/h 3~ Motor
The Leybold TRIVAC D90L (part number 1019090V01) is a high-capacity, dual-stage oil-sealed rotary vane vacuum pump from the robust TRIVAC L series. With a pumping speed of 55.9 CFM (95 m³/h) at 60 Hz and an ultimate vacuum of 2.2 × 10⁻³ Torr (3 × 10⁻³ mbar), it is designed for demanding industrial and laboratory applications requiring high throughput and reliable medium vacuum.
This pump features an integrated anti-suckback valve, gas ballast for improved vapor handling, and a rugged construction built for continuous duty.
Key Features & Benefits
- Dual-stage rotary vane design for deep ultimate vacuum
- High pumping speed for fast evacuation
- Integrated anti-suckback valve for pump protection during power loss
- Gas ballast for excellent water vapor tolerance
- Robust industrial-grade construction with long service life
- KF40 (DN 40 ISO-KF) inlet and outlet flanges
- Air-cooled with low maintenance requirements
Technical Specifications
| Specification | Value |
|---|---|
| Model | Leybold TRIVAC D90L |
| Part Number | 1019090V01 |
| Pump Type | Dual-stage oil-sealed rotary vane |
| Pumping Speed (60 Hz) | 55.9 CFM (95 m³/h) |
| Ultimate Pressure (without gas ballast) | 2.2 × 10⁻³ Torr (3 × 10⁻³ mbar) |
| Inlet / Outlet Flange | KF40 (DN 40 ISO-KF) |
| Motor | 3-Phase, 230/460V, 50/60 Hz |
| Motor Power | 2.6 kW (approx. 3.5 HP) |
| Oil Capacity (min / max) | 3.6 – 4.8 liters |
| Noise Level | 60 dB(A) |
| Cooling Method | Air-cooled |
| Weight | Approx. 96 kg (211 lbs) |
Ideal Applications
- Backing turbomolecular and diffusion pumps
- Industrial vacuum processes
- Vacuum drying and degassing
- Freeze drying and vacuum sterilization
- Refrigeration system evacuation
- Epoxy degassing and vacuum distillation
- Large laboratory vacuum systems
The Leybold TRIVAC D90L is a powerful and reliable workhorse vacuum pump, ideal for applications requiring high pumping speed and robust performance in demanding environments.
