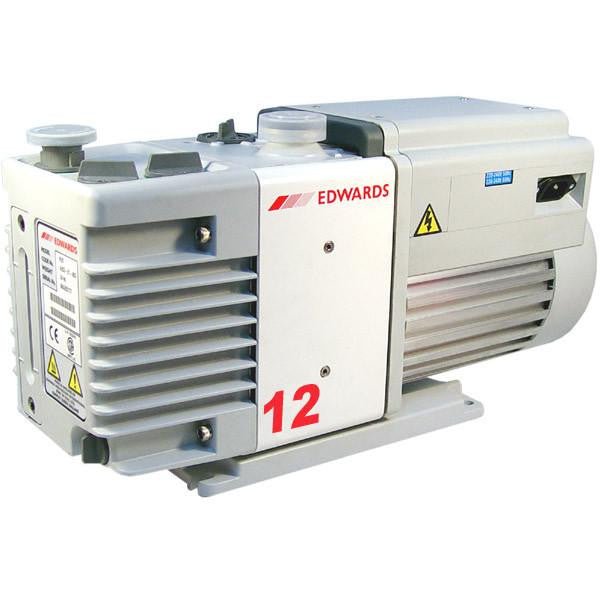

Edwards RV12 Rotary Vane Vacuum Pump – 8.4 CFM, 115/230V 1-Phase 50/60Hz (Factory Set to 115V for USA) (A65501906)
Edwards RV12 Two Stage Rotary Vane Vacuum Pump – 8.4 CFM
The Edwards RV12 (part number A65501906) is a versatile two-stage oil-sealed rotary vane vacuum pump from the highly regarded RV series. This single-phase model is factory set to 115V for USA operation (switchable to 230V) with 50/60 Hz compatibility, making it plug-and-play ready for most North American laboratories and light industrial facilities.
With a pumping speed of 8.4 CFM (14.2 m³/h) at 60 Hz and an excellent ultimate vacuum of 2 × 10⁻³ mbar, the RV12 offers high throughput, outstanding vapor handling, and quiet performance. The RV series is known for its ability to deliver excellent ultimate vacuum in both high-vacuum and high-throughput modes, with or without gas ballast.
Key Features and Benefits
- Two-stage rotary vane design for high pumping speed and low ultimate pressure
- High pumping speed: 8.4 CFM (14.2 m³/h) at 60 Hz
- Quiet operation at 48 dB(A) at 50 Hz — ideal for laboratory environments
- Single-phase motor: 115/230V, 50/60 Hz, factory set to 115V for USA
- Excellent vapor tolerance with adjustable gas ballast
- Advanced lubrication system for reliable long-term performance
- NW25 (KF25) inlet flange for easy system integration
- Compact, rugged design suitable for benchtop or freestanding use
- Convection cooled with high-efficiency motor
Technical Specifications
| Specification | Value |
|---|---|
| Pumping Speed (60 Hz) | 8.4 CFM / 14.2 m³/h |
| Pumping Speed (50 Hz) | 7.0 CFM / 12.0 m³/h |
| Ultimate Vacuum (without gas ballast) | 2 × 10⁻³ mbar / 1.5 × 10⁻³ Torr |
| Motor Power | 0.55 kW |
| Voltage / Frequency | 115/230V, 1-phase, 50/60 Hz (factory set to 115V) |
| Noise Level | 48 dB(A) at 50 Hz |
| Inlet / Outlet Flange | NW25 (KF25) |
| Max Water Vapor Pumping Rate | 290 g/h (with gas ballast) |
| Oil Type (supplied) | Ultragrade 19 |
| Weight | Approx. 32–35 kg (70+ lbs) |
| Operating Temperature Range | 12 – 40°C |
Why Choose the Edwards RV12? The RV series stands out for its versatility, high vapor handling capability, and reliability. The A65501906 version is specifically configured for easy use in the USA with 115V power. It is an excellent choice for a wide range of applications requiring consistent performance and low noise.
Applications
- Laboratory vacuum systems
- Mass spectrometry and analytical instruments
- Vacuum drying and degassing
- Vacuum ovens and freeze dryers
- Refrigeration and air conditioning service
- Light industrial processes
- General roughing and backing pump duties
What's Included
- Edwards RV12 Rotary Vane Vacuum Pump (A65501906)
- Ultragrade 19 vacuum pump oil (initial charge)
- NW25 centering ring and O-ring
For corrosive or aggressive vapor applications, consider the PFPE-prepared RV12F variant (A65509906).
The Edwards RV12 two-stage rotary vane vacuum pump (A65501906) delivers reliable high performance, excellent vapor handling, and quiet operation for laboratory and light industrial vacuum needs.
