Direct Drive Vacuum Pumps

Direct drive vacuum pumps are a popular choice for laboratories and industrial applications that require compact size, fast evacuation times, and quiet operation. Unlike belt-driven pumps, direct drive models connect the motor shaft directly to the pump mechanism, allowing higher RPM operation (typically 1,400–1,800 RPM).

Why Choose Direct Drive Vacuum Pumps?

• More compact and lightweight design
• Faster pump-down speed on small to medium volumes
• Quieter operation compared to many older pumps
• Lower initial cost and simpler installation (no belt or pulley maintenance)
• Excellent for clean, low-vapor applications

How Direct Drive Vacuum Pumps Work

In a direct drive rotary vane pump, the electric motor is coupled directly to the pump rotor. This design eliminates the belt and pulley system, resulting in higher rotational speeds. The pump uses precision vanes that slide in a rotor to create vacuum through oil-sealed compression. Modern models like the Welch CRVpro series include advanced features such as anti-suck-back valves, thermal protection, and improved oil circulation.

Key Advantages of Direct Drive Design

• Smaller footprint — ideal for space-limited labs and benchtop use
• Quick vacuum pull-down — reaches target vacuum faster on smaller systems
• Reduced maintenance (no belt tensioning or replacement)
• Energy efficient for intermittent use
• Very quiet running — great for shared laboratory environments

Direct Drive vs Belt Drive Comparison

• Direct Drive (Welch CRVpro, Edwards RV): More compact, faster on small volumes, lower upfront cost, quieter, but runs hotter and may need more frequent oil changes under heavy vapor load.
• Belt Drive (Welch DuoSeal): Slower RPM, cooler running, superior vapor handling, longer oil life, and exceptional longevity (often 10–20+ years). Belt Driven Vacuum Pumps

Popular Direct Drive Models We Carry

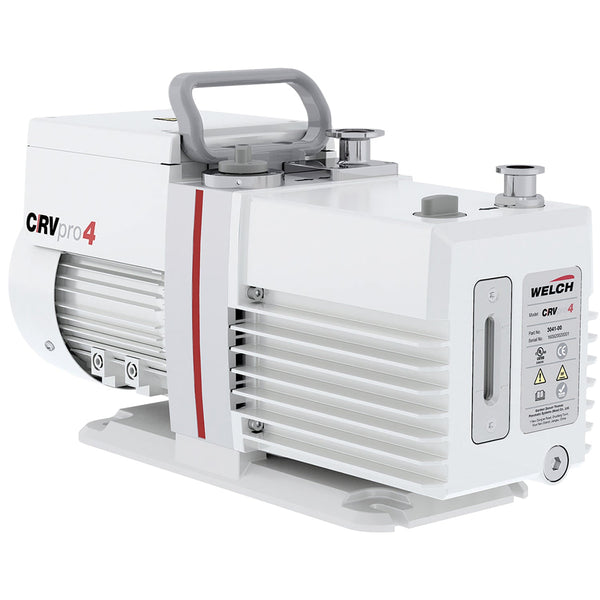

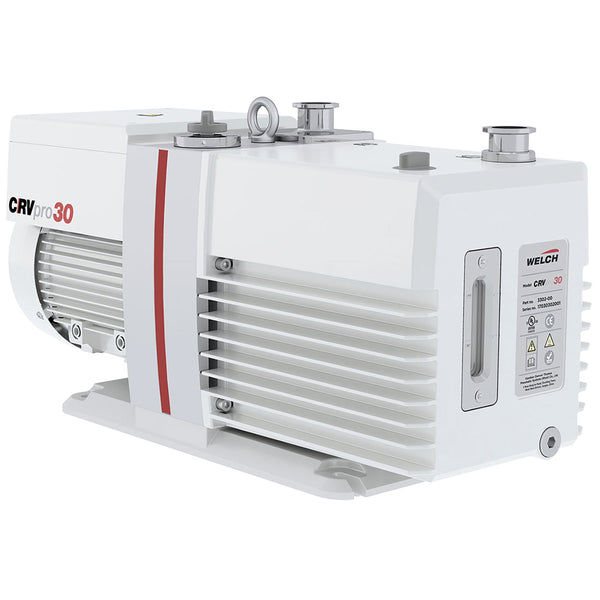

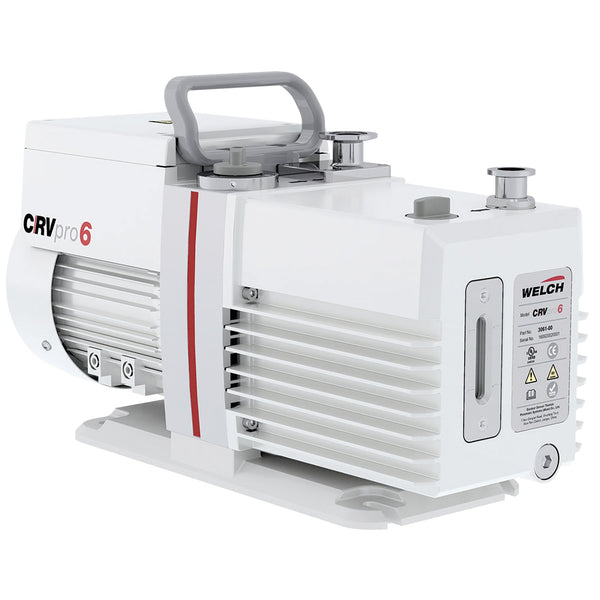

• Welch CRVpro Series – Advanced, reliable direct drive pumps (CRVpro 2, 4, 6, 8, 16, 24, 30, 48, 65)
• Edwards RV Series – Robust two-stage rotary vane pumps (RV3, RV5, RV8, RV12)
• Explosion-Proof & PFPE-Prepared Options – Available for hazardous or corrosive environments

Best Applications by Model Size

• Small (CRVpro 2–8, RV3–RV5): Rotary evaporators, vacuum ovens, Schlenk lines, degassing, small freeze dryers
• Medium (CRVpro 16–30, RV8–RV12): Larger lab systems, vacuum distillation, mass spectrometry backing
• High Flow (CRVpro 48–65, Edwards E2M series): Industrial processes, vacuum furnaces, and high-throughput applications

Maintenance Tips for Longevity

• Change oil regularly (every 1,000–3,000 hours or 3–6 months)
• Use manufacturer-recommended vacuum oil (or PFPE for chemical service)
• Monitor for oil mist and install exhaust filters when needed
• Keep inlet traps/filters clean to protect the pump from contaminants

Whether you're looking for a reliable benchtop pump or a high-flow industrial solution, Chemtech Scientific offers genuine Welch CRVpro and Edwards direct drive vacuum pumps, along with full repair service, parts, and technical support.

Academic & Research Discounts Available — Contact us for special pricing.
