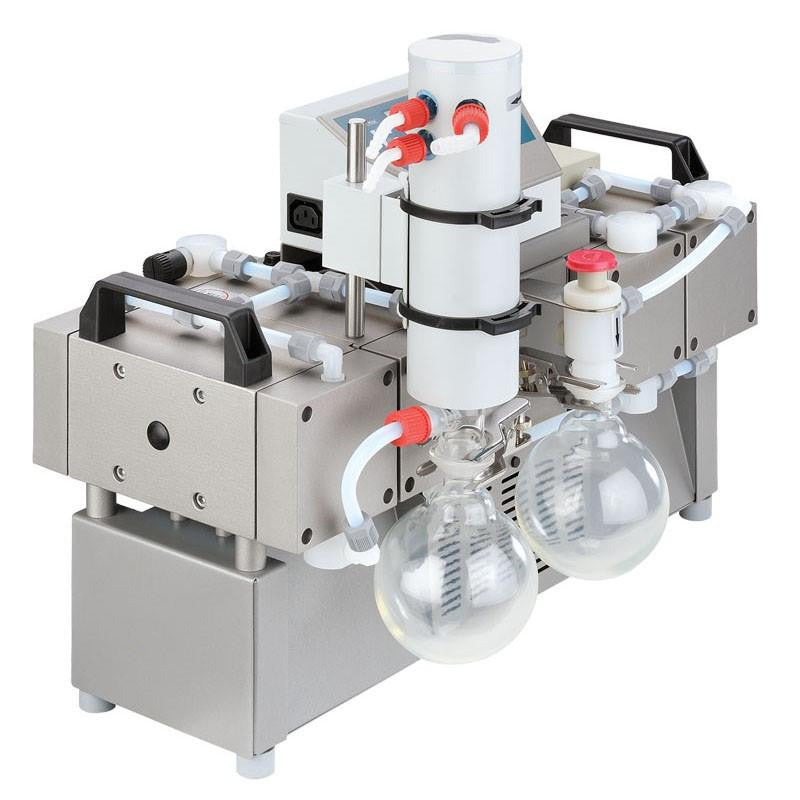

Welch-Ilmvac 2230 Variable Speed Evaporator Auto Sensing Vacuum System

Price Each

Quantity

Action

Price:

$ 10,113.60

 $ 11,760.00
Quantity:

The Welch-Ilmvac 2230B-01 is a powerful, dry, chemical duty vacuum pump with a built in controller and automatic evaporation machine. The sophisticated controller of the Ilmvac Variable Speed Evaporator Vacuum System automatically sense vapor and remains at the correct pressure until evaporation is complete, eliminating bumping of product.

The flow of 151 lit/min, along with the deep ultimate vacuum of 1.5 Torr, makes this pump the perfect solution for a large rotary evaporator. The Evaporator Vacuum System can be used for any harsh chemical service, but the higher flow makes it an excellent pump for large rotovaps/distillations/evaporations or networked vacuum systems.

The Evaporator Vacuum System is designed for quick and easy, infrequent maintenance.

What's included Evaporation and exhaust glassware included
Common accessory, not included 1/4" Vacuum hose
Pumping Speed 151 Lit/min.
Max. Vacuum 1.5 Torr (2 mbar)
Tubing Needed 1/4" ID
Inlet Connection UNIBARB
Exhaust 1/4" OD
Dimensions LxWxH inches 21.2x13x18
Weight 81 lb
Wiring 115V, 60 hz

The Welch-Ilmvac 2230B-01 is a powerful, dry, chemical duty vacuum pump with a built in controller and automatic evaporation machine. The sophisticated controller of the Ilmvac Variable Speed Evaporator Vacuum System automatically sense vapor and remains at the correct pressure until evaporation is complete, eliminating bumping of product.

The flow of 151 lit/min, along with the deep ultimate vacuum of 1.5 Torr, makes this pump the perfect solution for a large rotary evaporator. The Evaporator Vacuum System can be used for any harsh chemical service, but the higher flow makes it an excellent pump for large rotovaps/distillations/evaporations or networked vacuum systems.

The Evaporator Vacuum System is designed for quick and easy, infrequent maintenance.

What's included Evaporation and exhaust glassware included
Common accessory, not included 1/4" Vacuum hose
Pumping Speed 151 Lit/min.
Max. Vacuum 1.5 Torr (2 mbar)
Tubing Needed 1/4" ID
Inlet Connection UNIBARB
Exhaust 1/4" OD
Dimensions LxWxH inches 21.2x13x18
Weight 81 lb
Wiring 115V, 60 hz
