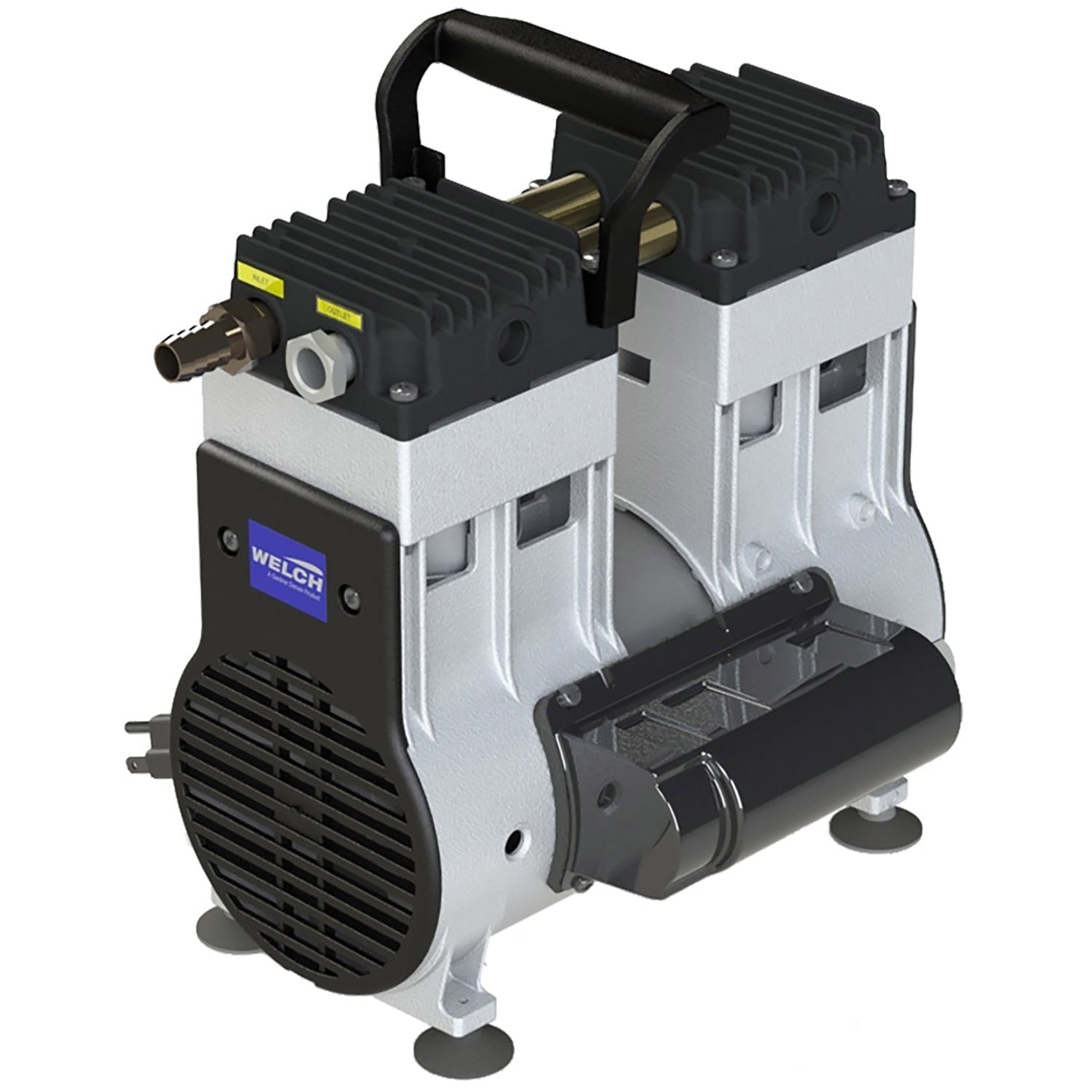

Welch 2595B-01 Wob-l Dry Vacuum Pump
Wob-l Dry Pump, 115V 60 Hz, 1 Ph, 300 lpm, 60 Torr
The Welch model 2595B-01 is the highest flow Welch WOB-L piston vacuum pump. At 10 CFM, the Welch 2595B-01 is an economic choice for high flow applications without sacrificing quality.
Specidfications
| Welch Model 2595 |
| Free Air Displacement |
| CFM (L/min.) @60Hz 10.6 (300) |
| M3 (L/min.) @50Hz 15.0 (250) |
| Ultimate Pressure |
| Torr 60 |
| (mbar) (80) |
| Maximum Vacuum In.Hg. 27.6 |
| Motor Horsepower |
| Horsepower 1/3 |
| (watts) (250) |
| Tubing needed |
| I.D. in Inches 5/8 |
| (I.D. in Millimeters) (10) |
| Intake & Exhaust Thread NPT 1/2 |
| Weight lbs 22.5 |
| (Kg.) (10.3) |
| Overall Dimensions |
| L in Inches (cm) 11.8 (30) |
| W in Inches (cm) 7.8 (19.8) |
| H in Inches (cm) 12.8 (32.5) |
| Shipping Weight |
| lbs 27.5 |
| (Kg.) (12.5) |
| Shipping Dimensions |
| L in Inches (cm) 19.5 (49.5) |
| W in Inches (cm) 20.5 (52.0) |
| H in Inches (cm) 16.0 (40.6) |
| Catalog Number |
| Catalog Number Wired for 115V, 60Hz, 1Ph with N.American 115V Plug 2595B-01 |
| Catalog Number Wired for 230V, 50/60Hz, 1Ph with Schuko cord set 2595C-02 |
