Welch 2567B-50 WOB-L Vacuum Pump

Price Each

Quantity

Action

Price:

$ 1,161.00

 $ 1,350.00
Quantity:

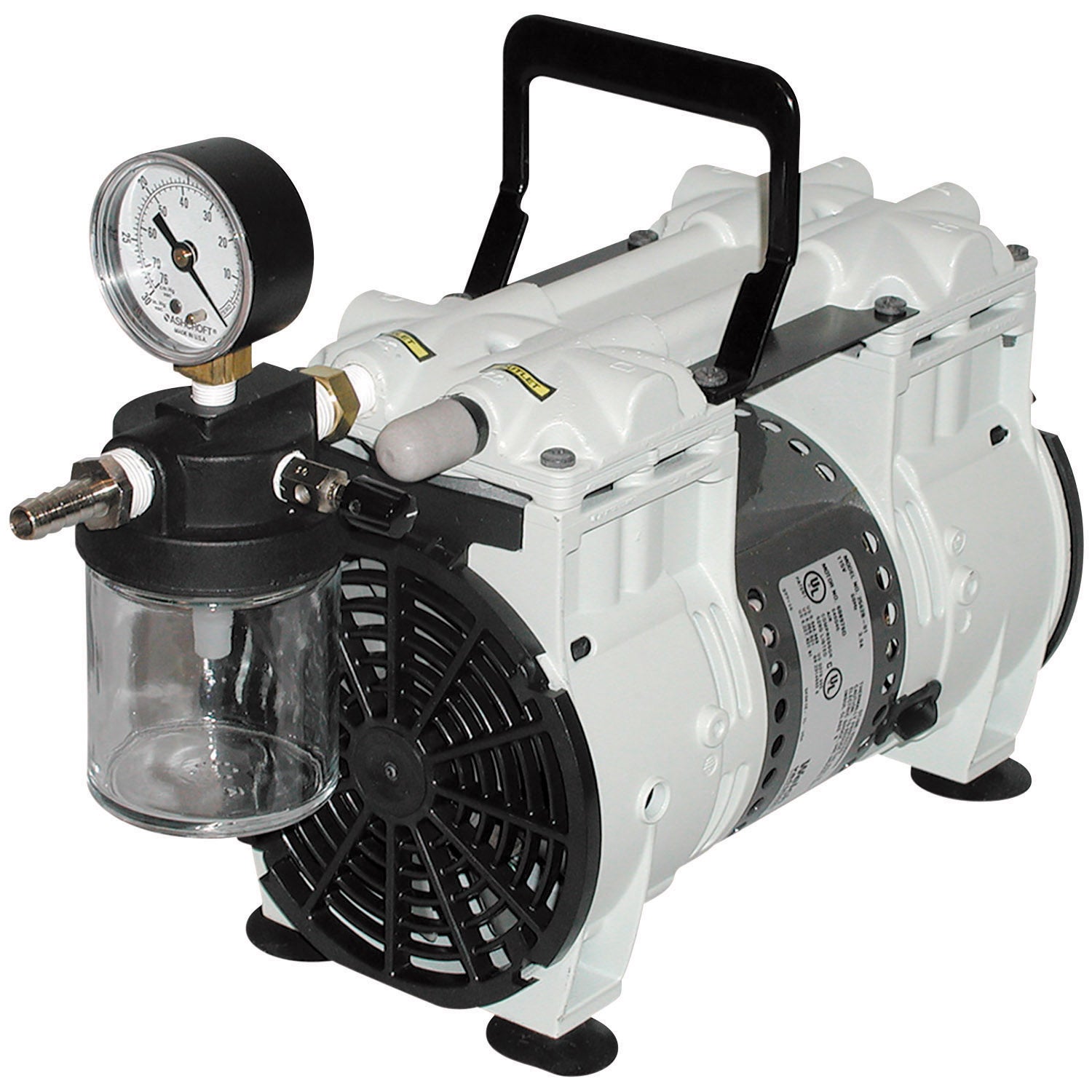

The Welch 2567B-50 is a two head WOB-L piston High capacity vacuum pump. The cast aluminum housing assures durability. The inlet side vacuum gauge and controller sit atop a liquid separator. The 2567B-50 is a bargain for it's performance and quality, without competition. Warning: The 2567B-50 is a standard duty vacuum pump.

The 2567B-50 pump will fail prematurely if operated on chemical duty applications. Please consult your Chemtech Scientific Representative for consultation, should your process include organic/acid/base/corrosive materials.

What's included Vacuum and pressure gauges, controller, liquid separator
Common accessory, not included Foot switch control 1430A or 1430B
Pumping Speed 100 Lit.min (3.5CFM)
Max. Vacuum 60 Torr
Tubing Needed 1/4" ID
Inlet Connection UNIBARB
 Exhaust  1/4" ID
Dimensions LxWxH inches 15x10x10 inches
Ship Weight 16.5 LBS
Wiring 115V, 60 hz

The Welch 2567B-50 is a two head WOB-L piston High capacity vacuum pump. The cast aluminum housing assures durability. The inlet side vacuum gauge and controller sit atop a liquid separator. The 2567B-50 is a bargain for it's performance and quality, without competition. Warning: The 2567B-50 is a standard duty vacuum pump.

The 2567B-50 pump will fail prematurely if operated on chemical duty applications. Please consult your Chemtech Scientific Representative for consultation, should your process include organic/acid/base/corrosive materials.

What's included Vacuum and pressure gauges, controller, liquid separator
Common accessory, not included Foot switch control 1430A or 1430B
Pumping Speed 100 Lit.min (3.5CFM)
Max. Vacuum 60 Torr
Tubing Needed 1/4" ID
Inlet Connection UNIBARB
 Exhaust  1/4" ID
Dimensions LxWxH inches 15x10x10 inches
Ship Weight 16.5 LBS
Wiring 115V, 60 hz

Brochures

Accessories

  • Brochure Exploded view and repair kits
  • Brochure Manual

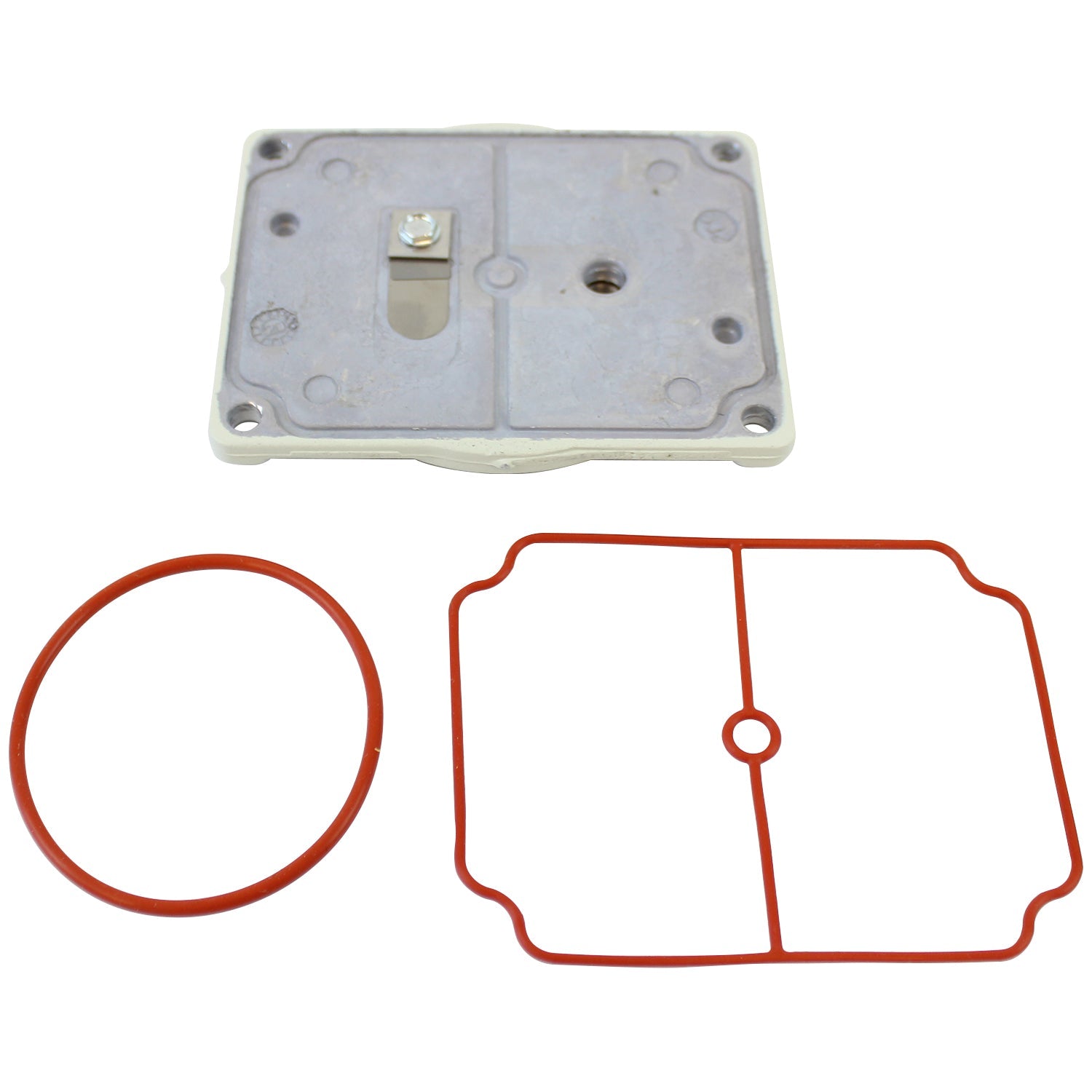

  • Accessory Welch 2567K-02 Service Kit
  • Accessory Welch 2567K-03 Service Kit

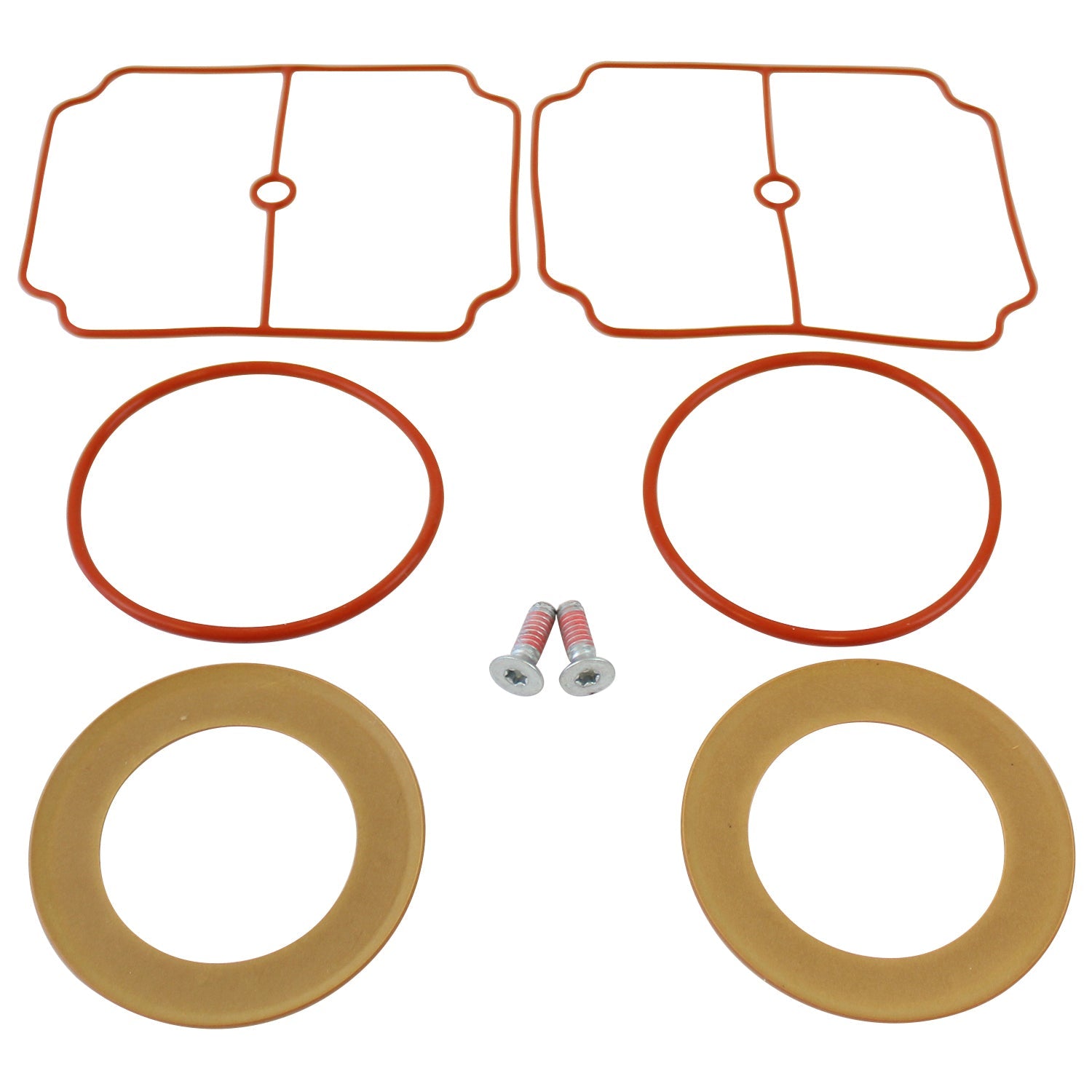

  • Accessory Welch 2567K-04 Service Kit
