Product Gallery Welch 2522B-01 Dry Piston WOB-L Vacuum Pump

Last 5 Products Reviewed

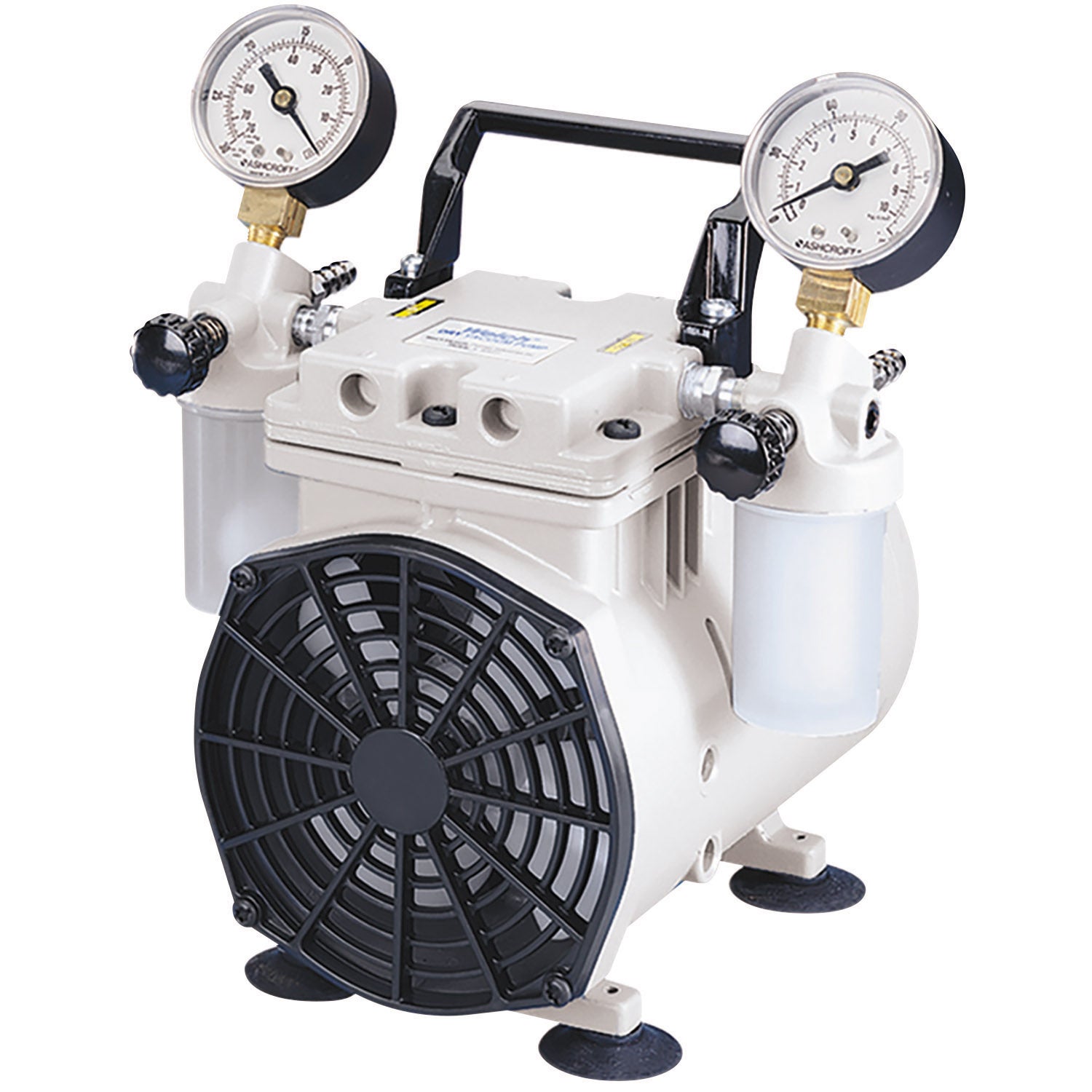

Welch 2522B-01 Dry Piston WOB-L Vacuum Pump

Price Each

Quantity

Action

Price:

$ 498.80

 $ 580.00
Quantity:

The Welch 2522B-01 is a one head WOB-L piston vacuum pump. The cast aluminum housing assures durability. The inlet side vacuum gauge and controller sit atop a catchpot with a built in float ball to protect the pump from flooding.

The 2522B-01 is a bargain for it's performance and quality, without competition. Warning: The 2522B-01 is a standard duty vacuum pump. The 2522B-01 pump will fail prematurely if operated on chemical duty applications.

Please consult your Chemtech Scientific Representative for consultation, should your process include organic/acid/base/corrosive materials.

What's included Vacuum and pressure gauges, controller, float ball flooding protection
Common accessory, not included Foot switch control 1430A or 1430B
Pumping Speed 22 lit/min. (0.76 CFM)
Max. Vacuum 100 Torr
Tubing Needed 1/4" ID
Inlet Connection UNIBARB
 Exhaust  1/4" ID
Max. Pressure 100 PSI
Dimensions LxWxH inches 8.1 x 8.8 x 10
Ship Weight 17 LBS
Wiring 115V, 60 hz

The Welch 2522B-01 is a one head WOB-L piston vacuum pump. The cast aluminum housing assures durability. The inlet side vacuum gauge and controller sit atop a catchpot with a built in float ball to protect the pump from flooding.

The 2522B-01 is a bargain for it's performance and quality, without competition. Warning: The 2522B-01 is a standard duty vacuum pump. The 2522B-01 pump will fail prematurely if operated on chemical duty applications.

Please consult your Chemtech Scientific Representative for consultation, should your process include organic/acid/base/corrosive materials.

What's included Vacuum and pressure gauges, controller, float ball flooding protection
Common accessory, not included Foot switch control 1430A or 1430B
Pumping Speed 22 lit/min. (0.76 CFM)
Max. Vacuum 100 Torr
Tubing Needed 1/4" ID
Inlet Connection UNIBARB
 Exhaust  1/4" ID
Max. Pressure 100 PSI
Dimensions LxWxH inches 8.1 x 8.8 x 10
Ship Weight 17 LBS
Wiring 115V, 60 hz
