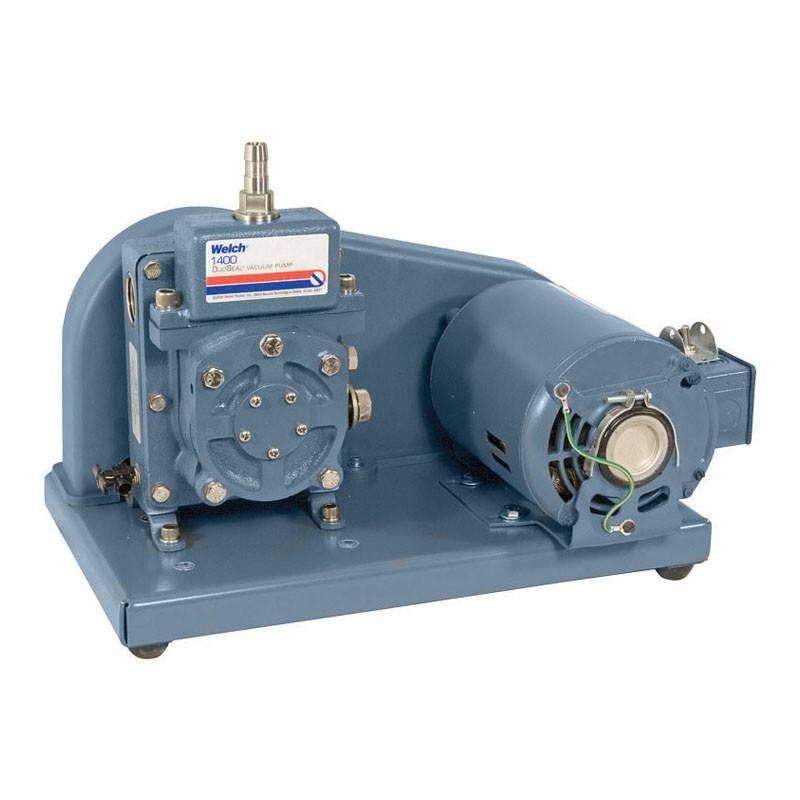

Product Gallery Welch 1400B-01F Vacuum Pump - Fomblin prepared vacuum pump

Last 5 Products Reviewed

Welch 1400B-01F Vacuum Pump - Fomblin prepared vacuum pump

Price Each

Quantity

Action

Price:

$ 2,244.60

 $ 2,610.00
Quantity:
Fomblin prepared vacuum pumps require charge of fomblin, not shipped with vacuum pump.



Fomblin lubricants posses the following exceptional properties:

  • Low vapor pressure
  • Chemical inertness
  • High thermal stability
  • Good lubricating properties
  • No flash or fire point
  • Low toxicity
  • Excellent compatibility with metals, plastics, elastomers
  • Good aqueous and non-aqueous solvent resistance
  • High dielectric properties
  • Low surface tension
  • Good radiation stability
  • Environmentally acceptable

Fomblin prepared vacuum pumps provide service in processes when hydrocarbon oil are not desired or are a hazard. Fomblin prepared vacuum pumps are a good choice for O2 service, extreme temperature and/or aggressive gasses in processes.



Pumping Speed 0.9 CFM (25 l/min)
Max. Vacuum 0.001 torr
Oil Capacity 0.62 qt(0.59 l)
Tubing Needed 7/16"(11 mm)
Exhaust ./ Intake threads 3/4-20
Pump RPM 580
Dimensions LxWxH 17.8"x9"x12.6"
Weight 70 lb (31.8 kg)
Wiring 115V, 60 hz



Fomblin prepared vacuum pumps require charge of fomblin, not shipped with vacuum pump.



Fomblin lubricants posses the following exceptional properties:

  • Low vapor pressure
  • Chemical inertness
  • High thermal stability
  • Good lubricating properties
  • No flash or fire point
  • Low toxicity
  • Excellent compatibility with metals, plastics, elastomers
  • Good aqueous and non-aqueous solvent resistance
  • High dielectric properties
  • Low surface tension
  • Good radiation stability
  • Environmentally acceptable

Fomblin prepared vacuum pumps provide service in processes when hydrocarbon oil are not desired or are a hazard. Fomblin prepared vacuum pumps are a good choice for O2 service, extreme temperature and/or aggressive gasses in processes.



Pumping Speed 0.9 CFM (25 l/min)
Max. Vacuum 0.001 torr
Oil Capacity 0.62 qt(0.59 l)
Tubing Needed 7/16"(11 mm)
Exhaust ./ Intake threads 3/4-20
Pump RPM 580
Dimensions LxWxH 17.8"x9"x12.6"
Weight 70 lb (31.8 kg)
Wiring 115V, 60 hz



Brochures

Accessories

  • Brochure Dimensional drawing
  • Brochure Manual
  • Brochure Repair kits
  • Brochure Spare parts and accessories
  • Accessory Welch 8905K-06

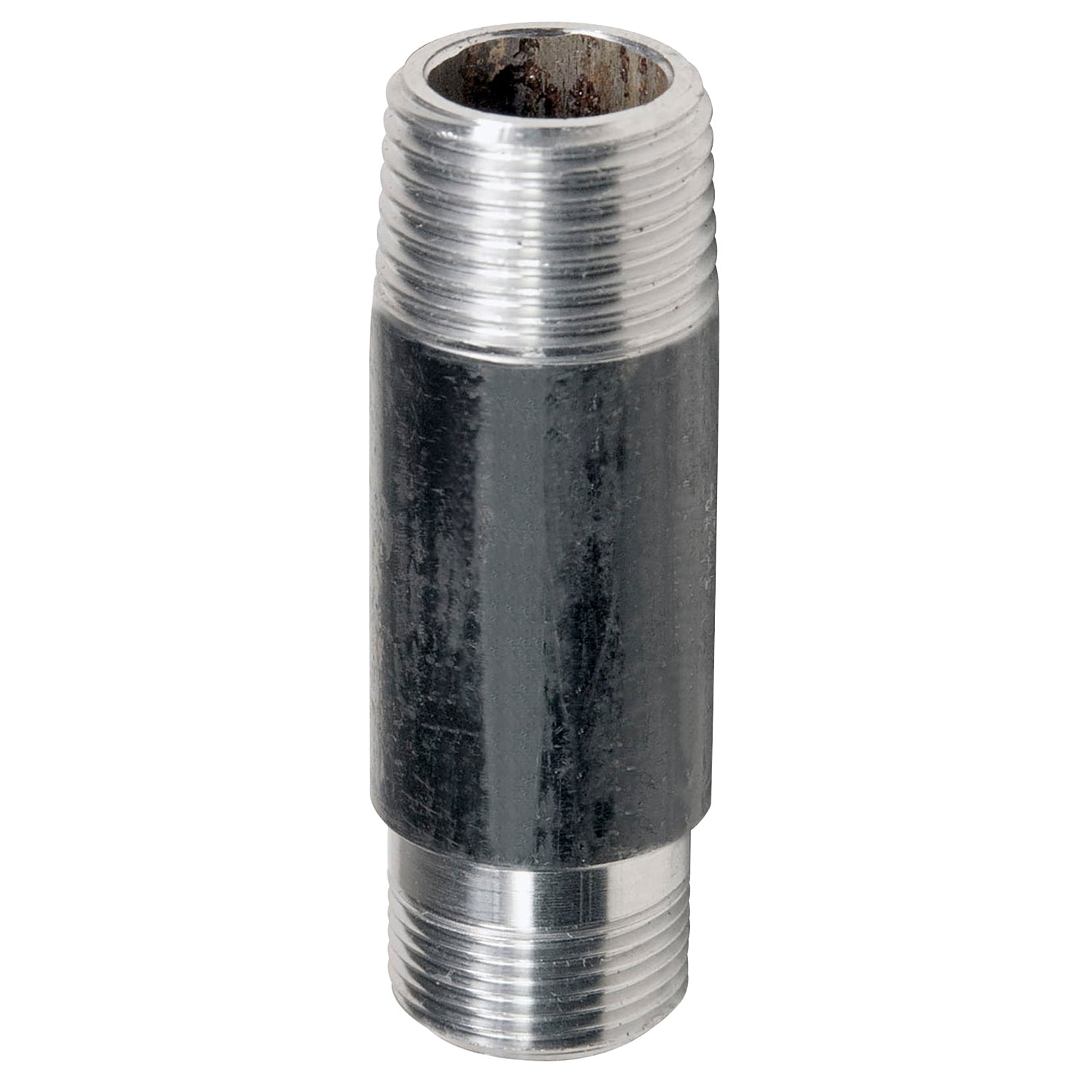

  • Accessory Welch 1393N Inlet / Exhaust Connectors - Pipe

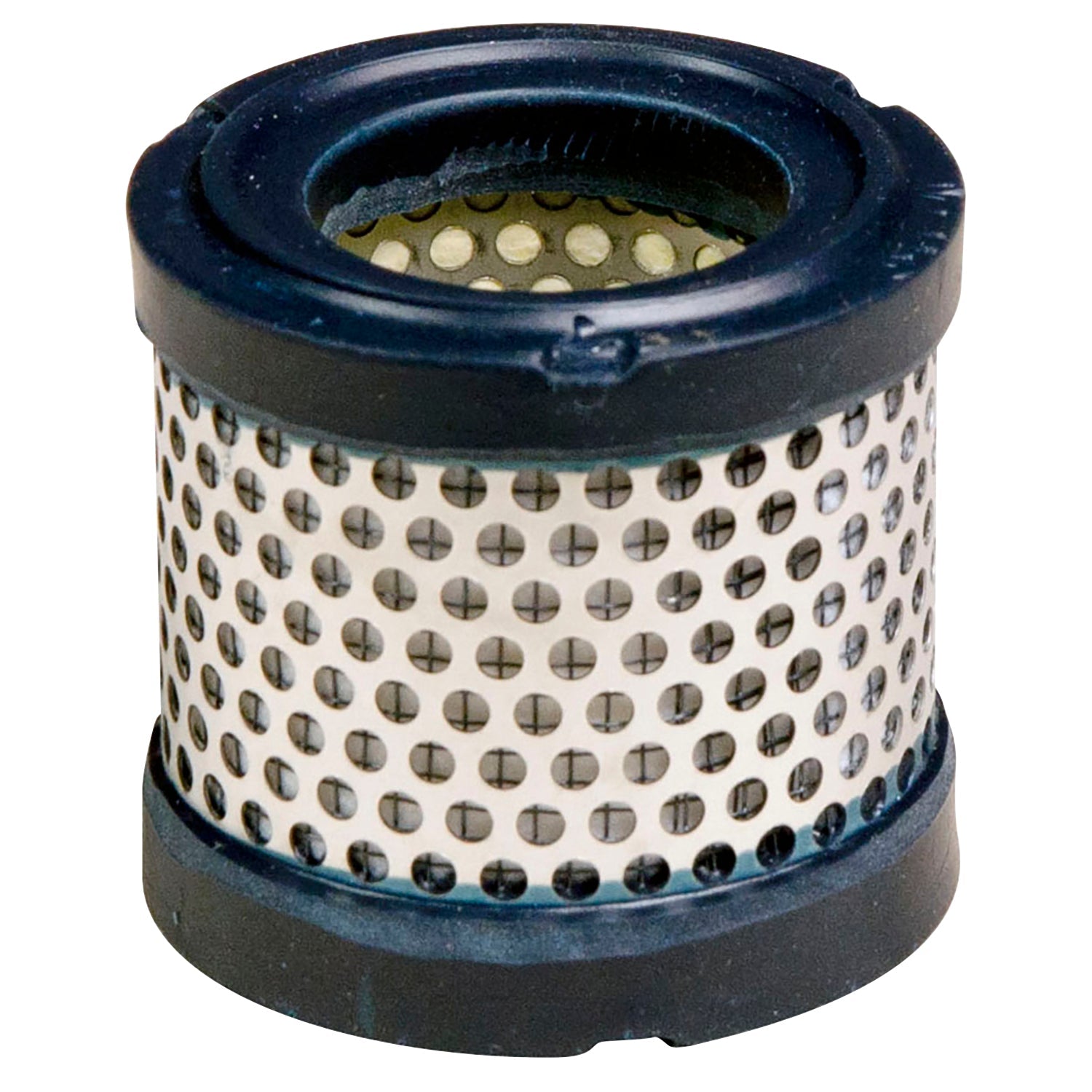

  • Accessory Welch 1417L
  • Accessory Welch 1416H-01
  • Accessory Welch 1407K-25 Pump Oil, 55 Gallons
  • Accessory Welch DuoSeal Vacuum Pump Oil, Liter 1407K-11
  • Accessory Welch 1401D
  • Accessory Welch 1407K-20 Duo Seal Pump Oil 5 Gallons
  • Accessory Welch 1400K-03 MINOR REPAIR KIT, for 1400 Vacuum Pump
  • Accessory Welch 1400K-04 MAJOR REPAIR KIT, for 1400 Vacuum Pump
  • Accessory ISO ADAPTER NW 16 FOR 1399 & 1400

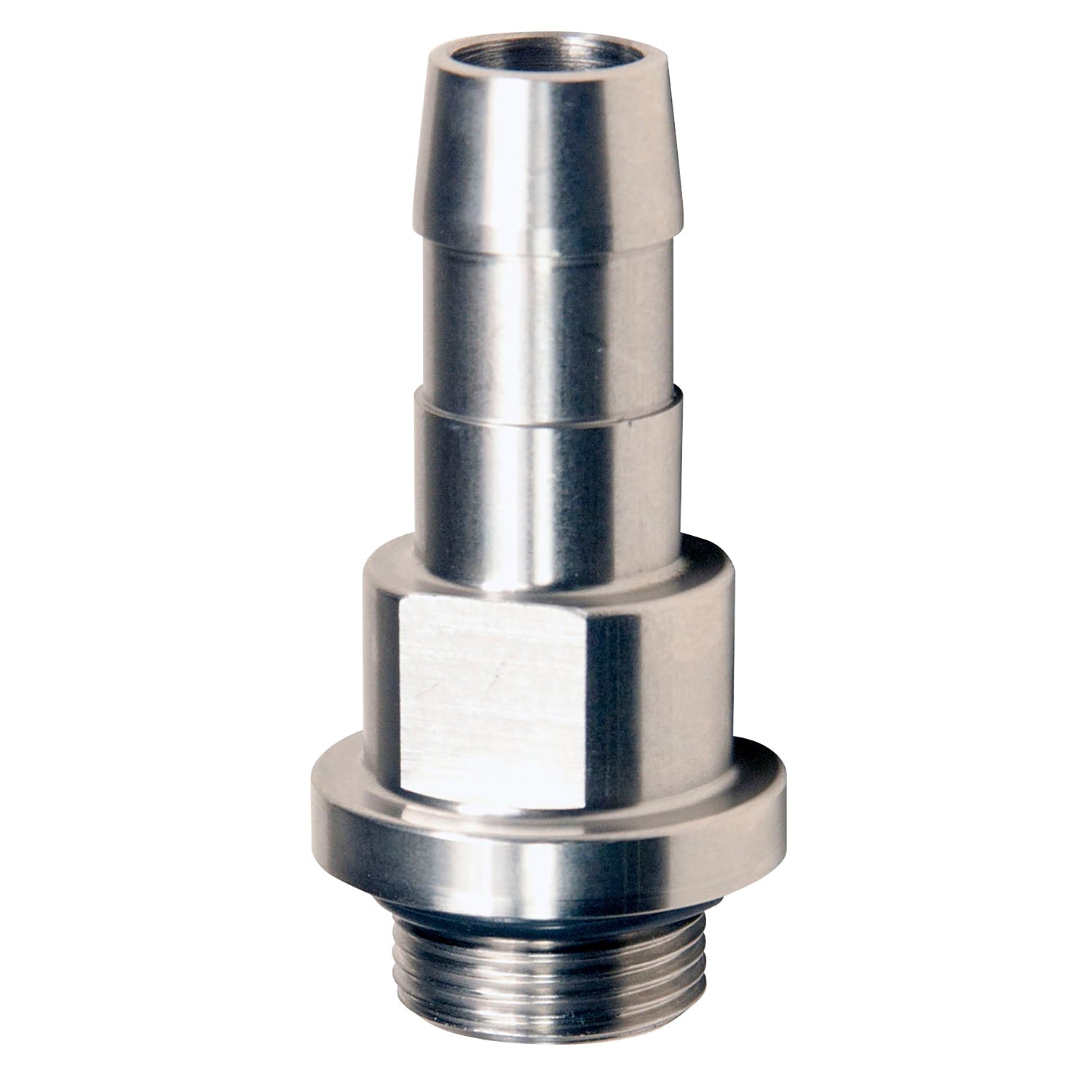

  • Accessory Welch 1393J Hose Adapter 7/16 ID
