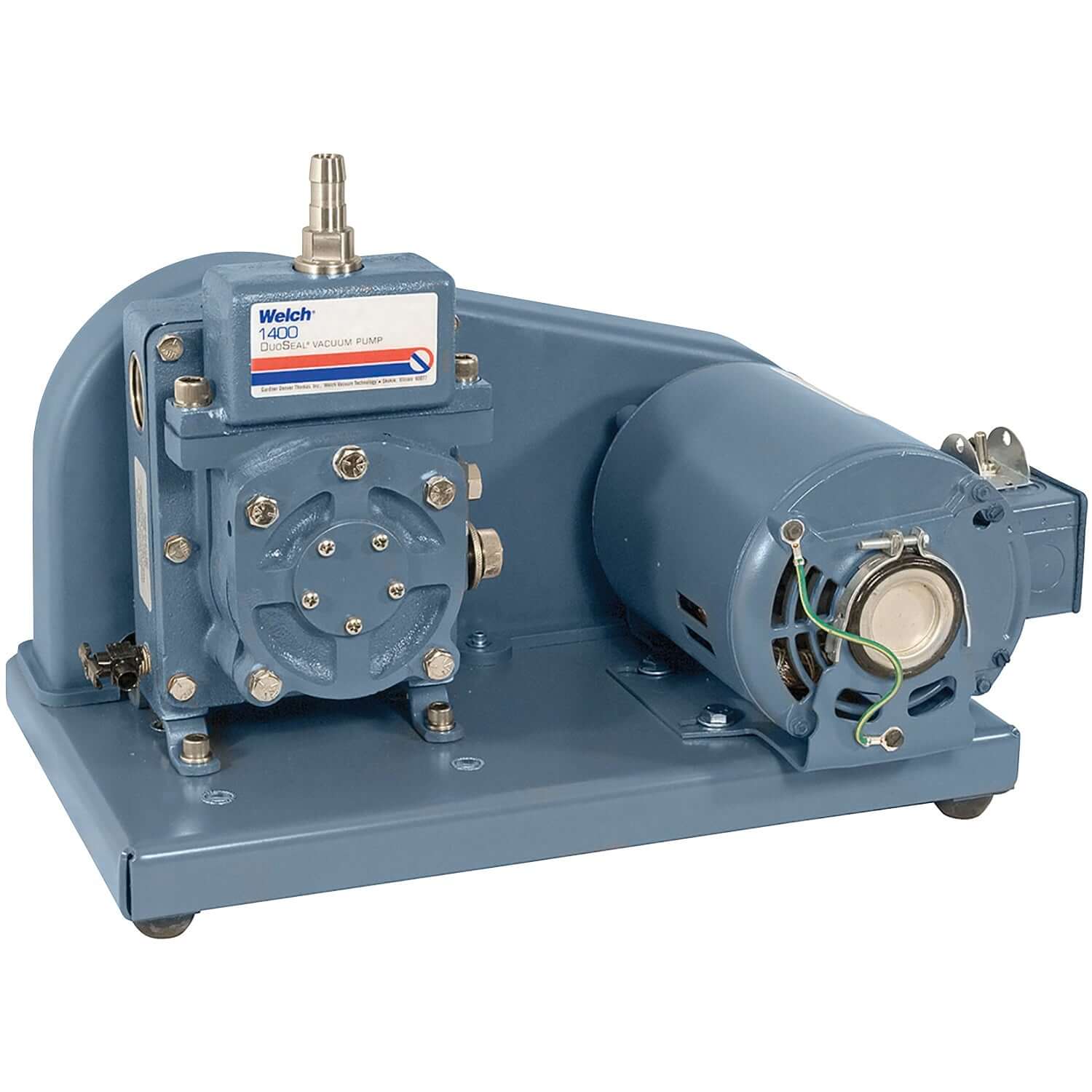

Welch 1400 DuoSeal Vacuum Pump, 115V 60Hz 1 PH, Model 1400B-01
|
Welch 1400 DuoSeal Vacuum Pump, 115V 60Hz 1 PH, Model 1400B-01 is a rugged and robust pump for applications requiring pressures < 1 Torr. The Welch vacuum pump 1400B-01 achieves < 0.001 Torr with a pumping speed of 25 liters/min (0.9 CFM). Welch vacuum rugged oil-seal pumps for a wide variety of vacuum needs, including Schlenk drying lines, freeze drying, degassing, concentrations, distillations, and more. Pulley drive enables low pump rpm operation – reduces friction, oil temperature, and oil degradation. Large oil reservoir minimizes contamination effects and extends maintenance intervals. Use of a cold trap is recommended to protect the pump and enhance vacuum levels. Welch 1400 two stage, oil sealed vacuum pumps should not be operated continuously at pressures above 1 Torr. Operating this DUOSEAL pump at higher pressure will induce excessive oil spraying from the exhaust of the vacuum pump causing premature failure and void warranty. Please consult your Chemtech Scientific Representative for consultation, should the ultimate pressure of your process run above 1 Torr. |
|
| What's included | 1 qt DuoSeal vacuum pump oil, 1407K-11 |

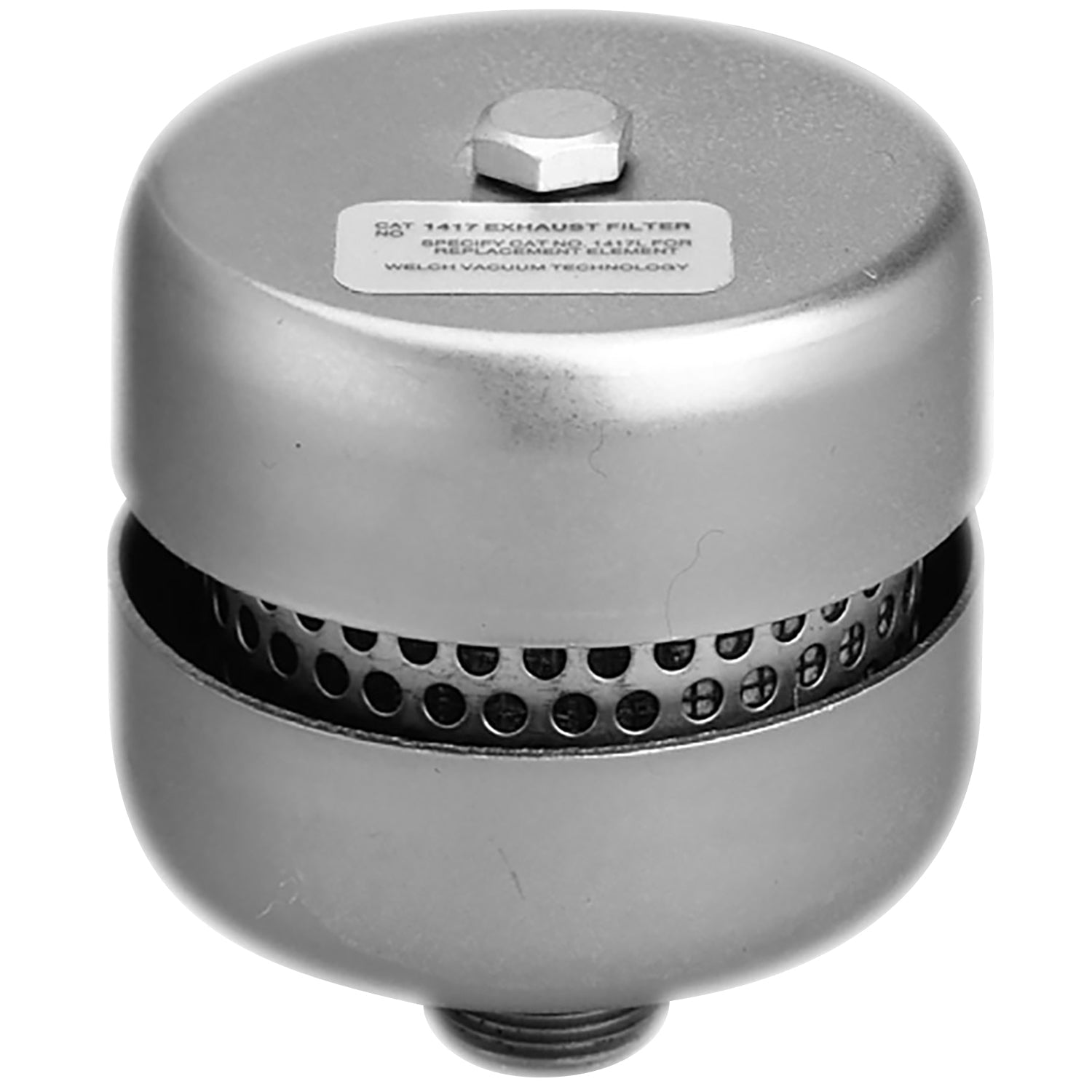

| Common accessory, not included | Exhaust filter 1417 |
| Pumping Speed | 0.9 CFM (25 l/min) |
| Max. Vacuum | 0.0001 torr |
| Oil Capacity | 0.62 qt(0.59 l) |
| Tubing Needed | 7/16"(11 mm) |
| Exhaust / Intake threads | 3/4-20 |
| Pump RPM | 580 |
| Dimensions LxWxH | 17.8"x9"x12.6" |
| Weight | 70 lb (31.8 kg) |
| Wiring | 115V, 60 hz |
Welch vacuum complete pumps model numbers include a four number model of pump along with a suffix containing a letter, dash and two numbers to designate voltage. The complete pump (pump, motor, base, belt - ready to run out of the box) in 115v, 60 Hz is a Welch 1400B -01 vacuum pump.
The Welch catalog#: 1400 is a base pump only. It is an unmounted pump typically used for a drop in replacement for a failed pump. The Welch 1400 cat# does not include the base, belt or motor.
https://www.chemtechsci.com/products/welch-1400-unmounted-pump?_pos=1&_sid=741eea29b&_ss=r
|
Welch 1400 DuoSeal Vacuum Pump, 115V 60Hz 1 PH, Model 1400B-01 is a rugged and robust pump for applications requiring pressures < 1 Torr. The Welch vacuum pump 1400B-01 achieves < 0.001 Torr with a pumping speed of 25 liters/min (0.9 CFM). Welch vacuum rugged oil-seal pumps for a wide variety of vacuum needs, including Schlenk drying lines, freeze drying, degassing, concentrations, distillations, and more. Pulley drive enables low pump rpm operation – reduces friction, oil temperature, and oil degradation. Large oil reservoir minimizes contamination effects and extends maintenance intervals. Use of a cold trap is recommended to protect the pump and enhance vacuum levels. Welch 1400 two stage, oil sealed vacuum pumps should not be operated continuously at pressures above 1 Torr. Operating this DUOSEAL pump at higher pressure will induce excessive oil spraying from the exhaust of the vacuum pump causing premature failure and void warranty. Please consult your Chemtech Scientific Representative for consultation, should the ultimate pressure of your process run above 1 Torr. |
|
| What's included | 1 qt DuoSeal vacuum pump oil, 1407K-11 |
| Common accessory, not included | Exhaust filter 1417 |
| Pumping Speed | 0.9 CFM (25 l/min) |
| Max. Vacuum | 0.0001 torr |
| Oil Capacity | 0.62 qt(0.59 l) |
| Tubing Needed | 7/16"(11 mm) |
| Exhaust / Intake threads | 3/4-20 |
| Pump RPM | 580 |
| Dimensions LxWxH | 17.8"x9"x12.6" |
| Weight | 70 lb (31.8 kg) |
| Wiring | 115V, 60 hz |
Welch vacuum complete pumps model numbers include a four number model of pump along with a suffix containing a letter, dash and two numbers to designate voltage. The complete pump (pump, motor, base, belt - ready to run out of the box) in 115v, 60 Hz is a Welch 1400B -01 vacuum pump.
The Welch catalog#: 1400 is a base pump only. It is an unmounted pump typically used for a drop in replacement for a failed pump. The Welch 1400 cat# does not include the base, belt or motor.
https://www.chemtechsci.com/products/welch-1400-unmounted-pump?_pos=1&_sid=741eea29b&_ss=r
