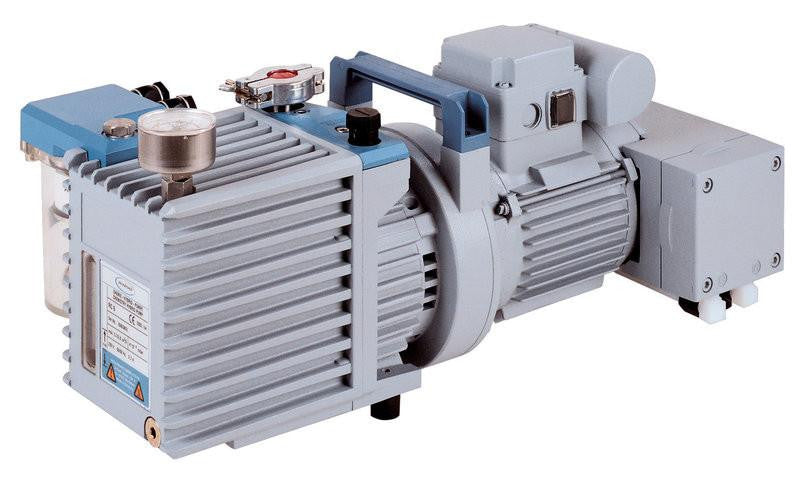

VACUUBRAND RC6 Chemistry-HYBRID Vacuum Pump, 120V, US plug

Price Each

Quantity

Price:

$ 6,880.19

 $ 7,818.40
Quantity:
Add to Cart

cat# 20698563, RC 6 Chemistry-HYBRID, 100-120V/50-60Hz, US power cord

The RC 6 chemistry-HYBRID pump is a combination of a two-stage rotary vane pump and a two-stage chemistry diaphragm pump for optimized corrosion resistance. The diaphragm pump maintains the oil reservoir under vacuum in order to keep the partial pressures of solvent vapors at levels below their condensation points and to reduce largely the concentration of oxygen and corrosive gases. Therefore the RC 6 chemistry-HYBRID pump has a much higher solvent vapor pumping capability and resistance to aggressive gases than conventional rotary vane pumps.

Performance features

  • reduced internal corrosion, even when working with corrosive vapors
  • oil changes typically reduced 90% or more compared with rotary vane pumps alone
  • excellent environmental friendliness due to efficient solvent recovery (accessory kit PC 8 with emission condenser; or as pumping unit PC 8)
  • most economical solution: In practical operation a cold trap is often no longer necessary. For large amounts of vapors a pumping unit PC 3 / RC 6 with cold trap at the inlet is available
  • ease of maintenance due to telescopic design
Technical data Unit RC 6
Number of stages 2 + 2
Max. pumping speed at 50/60 Hz m3/h 5.9 / 6.9
Max. pumping speed at 50/60 Hz cfm 3.5 / 4.1
Ultimate partial vacuum (abs.) mbar 4 x 10-4
Ultimate vacuum (abs.) mbar/torr 2 x 10-3 / 1.5 x 10-3
Ultim. vac. (abs.) with gas ballast mbar/torr 1 x 10-2 / 0.75 x 10-2
Water vapor tolerance with gas ballast mbar >> 40 mbar
Ambient temperature range (operation) °C 12 - 40
Ambient temperature range (storage) °C -10 - 60
Oil capacity (B-Oil) min./max. l 0.34 / 0.53
Max. back pressure (abs.) bar 1.1
Inlet connection Small flange KF DN 16
Outlet connection Hose nozzle DN 8-10 mm
Rated motor power kW 0.37
Rated motor speed at 50/60 Hz min-1 1500/1800
Degree of protection IP 40
Dimensions (L x W x H) mm 510 x 305 x 230
Weight kg 24.2
Noise level at 50 Hz, typ. dBA 50
Items supplied Pump completely mounted, ready for use after oil filling (bottle 0.5 l enclosed), with manual.
Accessories PTFE tubing KF DN 16 (1000 mm: 686031)
Stainless steel tubing KF DN 16 (1000 mm: 673336)
Kit PC 8 with emission condenser (699949)
Filter element oil mist filter RC (640187)
Package fine vacuum control KF DN 16 (635983)
Rubber vacuum tubing DN 8 mm (686001)
Small flange KF DN 16 with hose nozzle DN 8-10 mm (662806)
