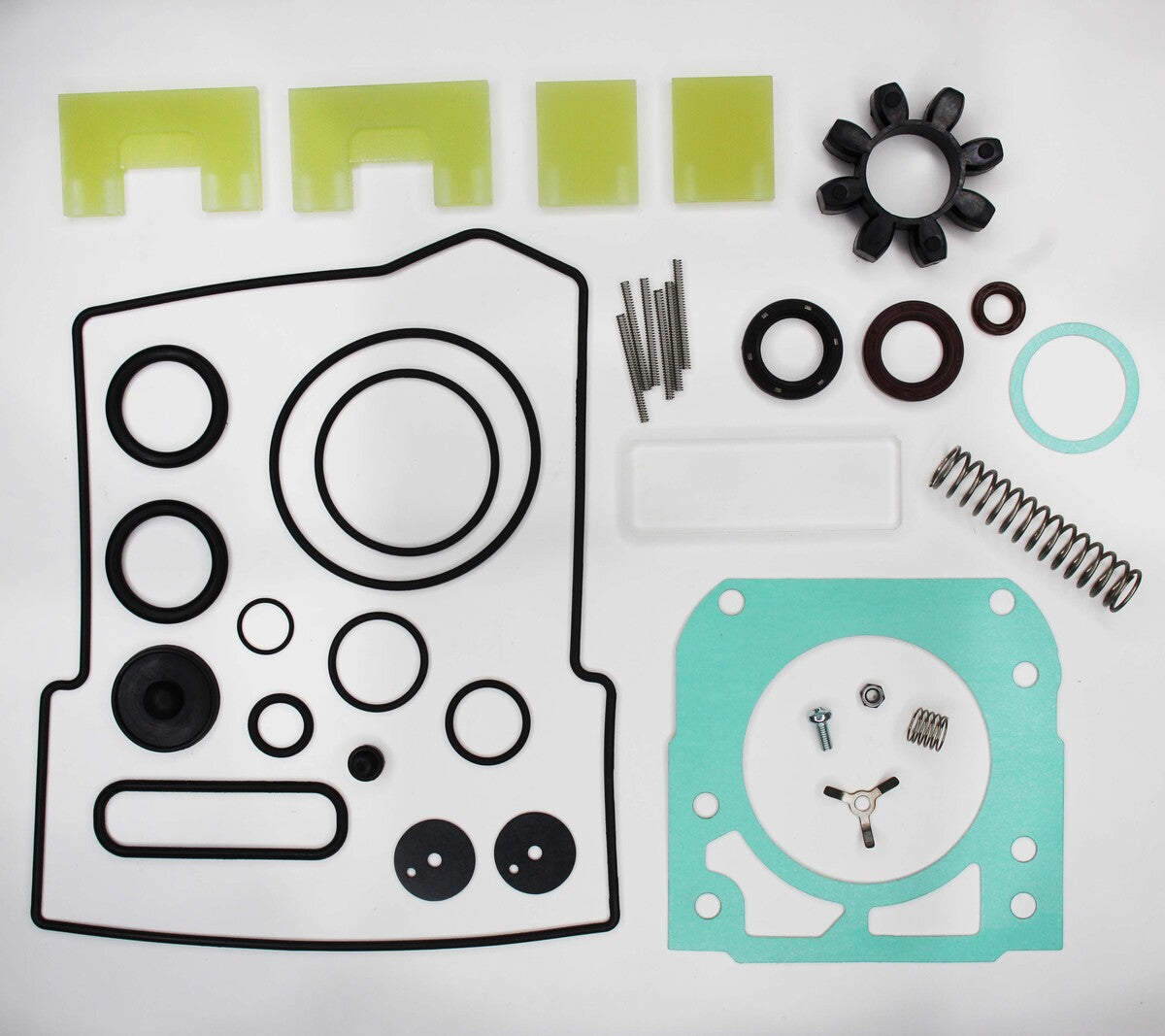

Service Kit, Welch CRVpro 16, WSK005
Used on Welch CRVpro 16 two stage rotary vane vacuum pump
Oil Capacity: 2400 ml
Typical Applications:
- Glove Box
General product classifications
Brand | Welch |
Family | CRVpro |
Pump models | CRVpro16 |
Category | Repair Kits |
Subcategory | Overhaul Kits |
Country of origin | US |
Part number alternatives | S3193-99 |
PART NUMBER | DESCRIPTION | QUANTITY |
---|---|---|
400083 | Screw,M4x10 Lg,Philip Pan Head | 1 |
420071 | Washer, Lock, Tripod, Large | 1 |
310155 | Seal,Shaft,Mini | 1 |
26501032 | Coupling Element | 1 |
310156 | Seal,Shaft,Double Lip | 1 |
380053 | Plate,Valve,SS | 1 |
490082 | Spring,comp,CRVpro | 1 |
310157 | Seal,Shaft,Single Lip | 1 |
490081 | Spring,Vane,CRVpro | 6 |
490080 | Spring,comp,CRVpro | 1 |
230102G | Vane,GX,Large,CRVpro 16 | 2 |
300220 | O'ring,Formed,CRVpro 16/24/30 | 1 |
300219 | Gasket,Case | 1 |
410018 | Nut,Hex,M4x.7 | 1 |
230099G | Vane,GX,Small,CRV Pro 16,24,30 | 2 |
320182 | O-Ring,Viton,75x3.0mm | 1 |
300221 | Gasket,Round,Rubber,CRV Pro 16 | 1 |
320086 | O-Ring,Viton,14.5 X 1.5 MM | 1 |
91311690100 | O-Ring, Viton, 14 x 3 mm | 1 |
320540 | O-Ring,FKM,21 x 2.6 mm | 1 |
320541 | O-Ring,FKM,26 x 2.5 mm | 1 |
320114 | O-Ring,Viton,52 X 2.5 MM | 1 |
02124025 | O-Ring,Viton,28 X 5 MM | 2 |
390027 | Valve, FKM, Top Hat | 1 |
300224 | Gasket,Ring | 1 |
390026 | Valve, Nib, FKM | 1 |
500030 | Sight Glass,Rect, CRV 16/24/30 | 1 |
320539 | O'ring,Formed,Sight Glass | 1 |
