Seal & Gasket Kit - Buna PL97196681
Used on Leybold Sogevac SV1200

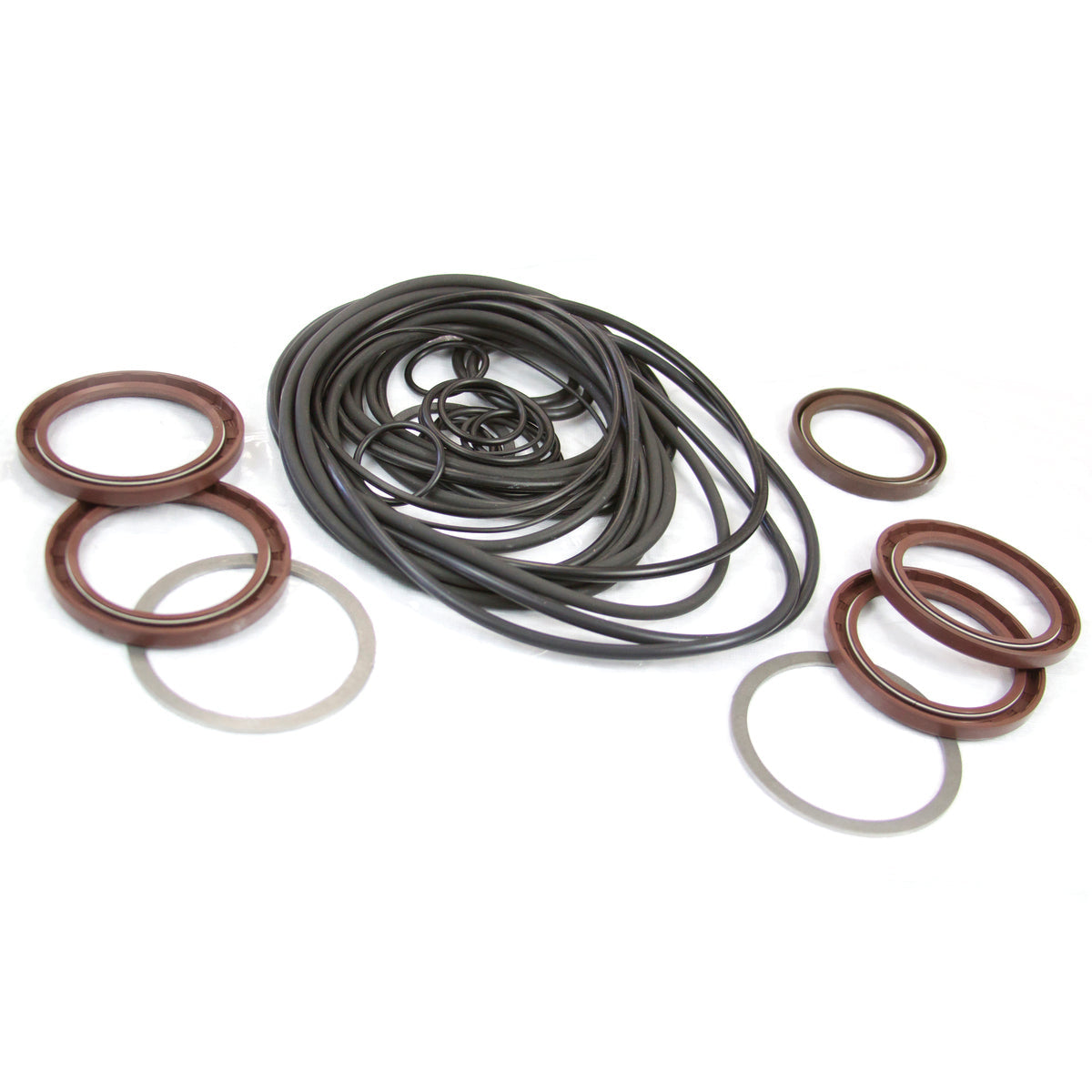

Seal & Gasket Kit includes; O-rings, shaft seals, gaskets, and other components for light maintenance.
General product classifications
Brand | Leybold |
Family | Sogevac |
Pump models | SV1200 |
Category | Repair Kits |
Subcategory | Seal & Gasket Kit |
Country of origin | GB |
Manual page | LEYBOLD-71 |
PART NUMBER | DESCRIPTION | QUANTITY |
---|---|---|
300078 | Copper Crush Gasket, 22 mm, Leybold, Sogevac, SV1200, Part# 300078 | 8 |
320370 | O-ring, 150 x 5 mm - Buna, Part# 320370 | 1 |
320196 | O-ring, 42 x 2mm - Buna, Part# 320196 | 2 |
71217342 | O-ring, 8 x 2 mm - Buna, Part# 71217342 | 4 |
300076 | Copper Crush Gasket, 16 mm-Leybold Sogevac, Part# 300076 | 4 |
320185 | O-ring, 215.49 x 3.53 mm - Buna, Part# 320185 | 1 |
71044522 | O-ring, 43 x 2 - Buna, Part# 71044522 | 1 |
PP820-20 | Grease, High Temp - 20 g | 1 |
PL71017993 | Relief Valve Seal, Leybold, Sogevac, Part# PL71017993 | 6 |
PL71214858 | Spring, Leybold, Sogevac, Part# PL71214858 | 1 |
PL71218053 | Seal, Relief Valve, Leybold, Sogevac, Part# PL71218053 | 6 |
PL71077088 | Strip Gasket, Silicone, Leybold, Sogevac, Part# PL71077088 | 1 |
PL71215623 | Poppet, Leybold, Sogevac, Part# PL71215623 | 1 |
PL71032252 | O-ring, 28 x 3 mm - Buna, Part# PL71032252 | 6 |
PL71078893 | Round Gasket, Buna, Leybold, Sogevac, Part# PL71078893 | 2 |
PL71036722 | O-ring, 27 x 2.5 mm - Buna, Part# PL71036722 | 2 |
PL71212503 | Float Valve Seal, Leybold, Sogevac, Part# PL71212503 | 2 |
PL71217382 | O-ring, 42 x 5mm - Viton, Part# PL71217382 | 3 |
PL71214543 | Suction Valve, Leybold, Sogevac, Part# PL71214543 | 1 |
PL71214822 | Shaft Seal, 75 x 95 x 10, Leybold, Sogevac, Part# PL71214822 | 4 |
PL71214842 | Shaft Seal, 60 x 75 x 8, Leybold, Sogevac, Part# PL71214842 | 1 |
PL71228882 | Protection Cap, Leybold, Sogevac, Part# PL71228882 | 1 |
PL71038093 | Membrane, 35 x 7 x 2, Leybold, Sogevac, Part# PL71038093 | 2 |
PL71217062 | O-ring, 58 x 3 - Buna, Part# PL71217062 | 2 |
PL71017702 | O-ring, 148.83 x 3.53 mm - Buna, Part# PL71017702 | 2 |
PL71217432 | O-ring, 360.5 x 5 - Buna, Part# PL71217432 | 2 |
PL71220543 | Thrust Ring Leybold, Sogevac, SV1200, Part# PL71220543 | 2 |
PL71217848 | Dowty Seal-Leybold Sogevac, Part# PL71217848 | 2 |
PL71214888 | Membrane, 80 x 80 x 0.3 mm- Leybold Sogevac, Part# PL71214888 | 1 |
PL71217462 | O-ring, 500 x 6 - Buna, Part# PL71217462 | 1 |
PL71214554 | Gasket, Beaded-Leybold Sogevac, Part# PL71214554 | 1 |
PL71242902 | O-ring, 165 x 5 - Buna, Part# PL71242902 | 1 |
PL23973131 | Anti-Suckback Nib, Buna, Leybold, Trivac, Part# PL23973131 | 1 |
PL40050137 | Anti-Suckback Valve Disc, Leybold, Trivac, Part# PL40050137 | 1 |
PL40050138 | Valve - Leybold, Trivac, Part# PL40050138 | 2 |
PL40164114 | Plate Valve, Leybold, Trivac, S30A, D30A, D60A, Part# PL40164114 | 1 |
