Pneumatic Inline Valve NW50 Ports (PIV-NW50-VE)

PIV-NW50-VE
NW50 (KF50) Inline Vacuum Valve
Pneumatic Bellows Sealed SS Inline Valve
Air Open, Spring Close
New Style Actuator
VACUUM ESSENTIAL
• High Vacuum Valve
• Offset In-Line Poppet Valve
• Viton (FKM) Seals

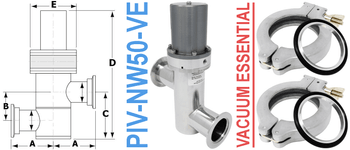

• A: 3.40"
• B: 3.00"
• C: 4.52"
• D: 10.47"
• E: 3.33"
NW50 (KF50) Flange OD: Ø2.95"
• NW50 Tube OD: 2"
• NW50 Centering Ring Counter Bore: 2.06"

NW50 High Vacuum Flange Equivalents
KF50, KF-50, K200, NW-50, QF50, ISO-QF
