Minor Repair Kit 100000348MINOR
Used on Leybold Trivac D5E

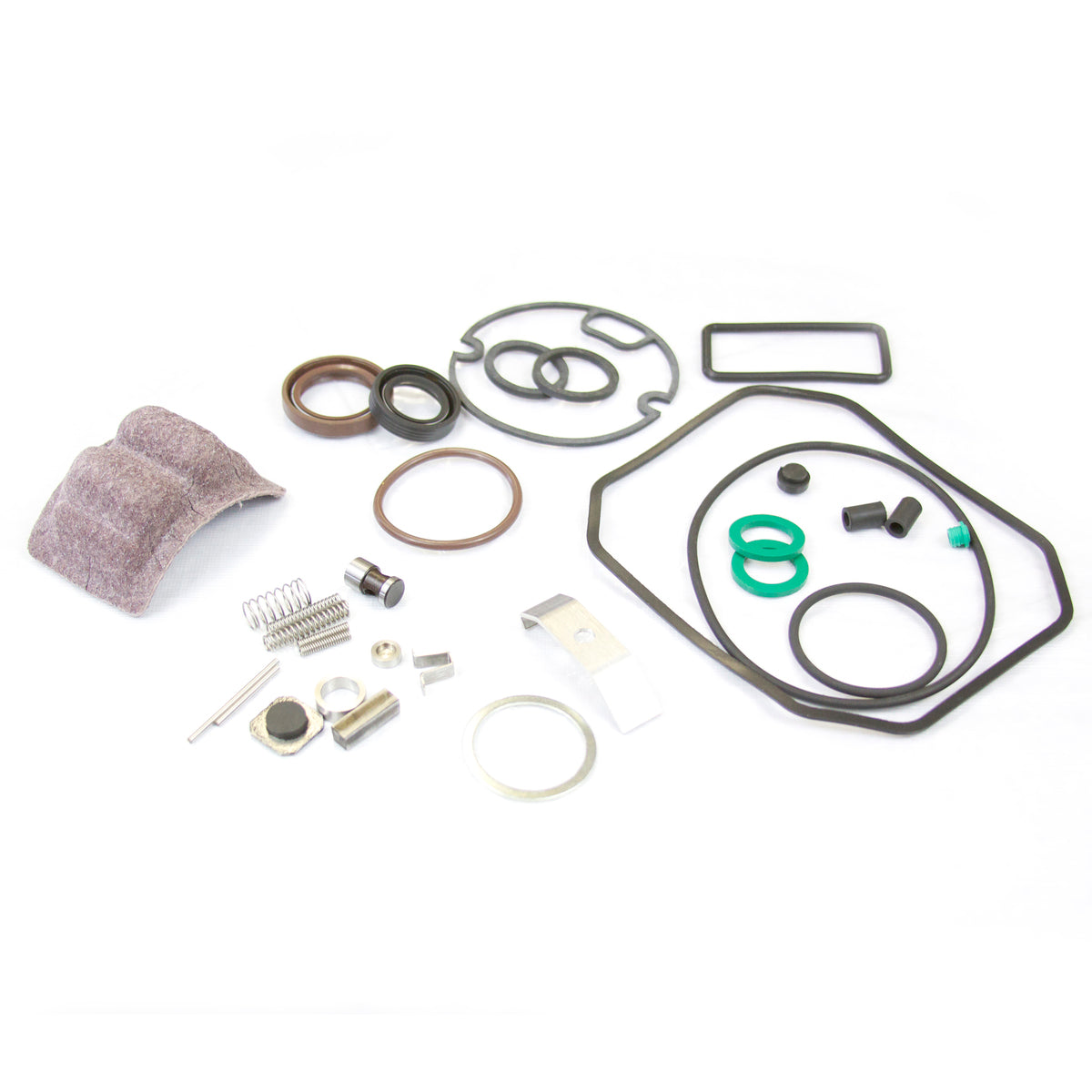

Minor Repair Kit includes; gaskets, demister filters, springs, O-rings, seals, Vanes, spacers & sleeves for light overhaul.
General product classifications
| Brand | Leybold |
| Family | Trivac |
| Pump models | D5E |
| Category | Repair Kits |
| Subcategory | Minor Kit |
| Country of origin | US |
| Manual page | LEYBOLD-69 |
| Part number alternatives | 100000348KITNR 100000348KIT |
| PART NUMBER | DESCRIPTION | QUANTITY |
|---|---|---|
| 450031 | Guide Pin, Vane, Stainless Steel | 1 |
| 490020 | Spring, Restrictor Retainer | 1 |
| 490022 | Compression Spring | 1 |
| 490023 | Compression Spring | 1 |
| 490025 | Compression Spring, Vane | 1 |
| 490026 | Compression Spring, Conical | 1 |
| 490035 | Compression Spring | 1 |
| 580032 | Valve, Nib, Viton | 1 |
| 580033 | Tandem Valve, Steel | 1 |
| 580035 | Bracket Valve | 1 |
| 580037 | Valve Holder | 1 |
| 580041 | Stopper Valve, Steel | 1 |
| 640013 | Tube Insert, Viton | 4 |
| 720011 | Demister Filter | 1 |
| P23955165 | Leybold Gasket, Viton, Part# P23955165 | 2 |
| PL20010289 | O-Ring,Viton,27 X 3 MM | 2 |
| PL23970211 | O-Ring,Viton,50 X 3 MM | 1 |
| PL23970436 | O-Ring,FKM | 1 |
| PL23973146 | Seal, Float - Viton | 1 |
| 300044 | Sight Glass Gasket, Viton | 1 |
| 300045 | Ring Gasket, Viton | 1 |
| 300048 | Flat Gasket, Viton | 1 |
| 300050 | Oil Box Gasket, Viton | 1 |
| 310049 | Shaft Seal, Lip - with Dust Lip | 1 |
| 310050 | Shaft Seal, Lip - without Dust Lip | 1 |
| 320118 | O-Ring,Viton,119X3 MM | 1 |
| 320160 | O-Ring,Viton,8.2 X 2.4 MM | 4 |
| PL34861028 | Non-Return Valve | 1 |
| 360052 | Coupler, Sleeve, Viton | 4 |
| PL40050135 | Valve | 1 |
| 420032 | Washer, Orifice | 1 |
| 440022 | Spacer Ring, Aluminum, 11.5 x 8 x 1 mm | 1 |
