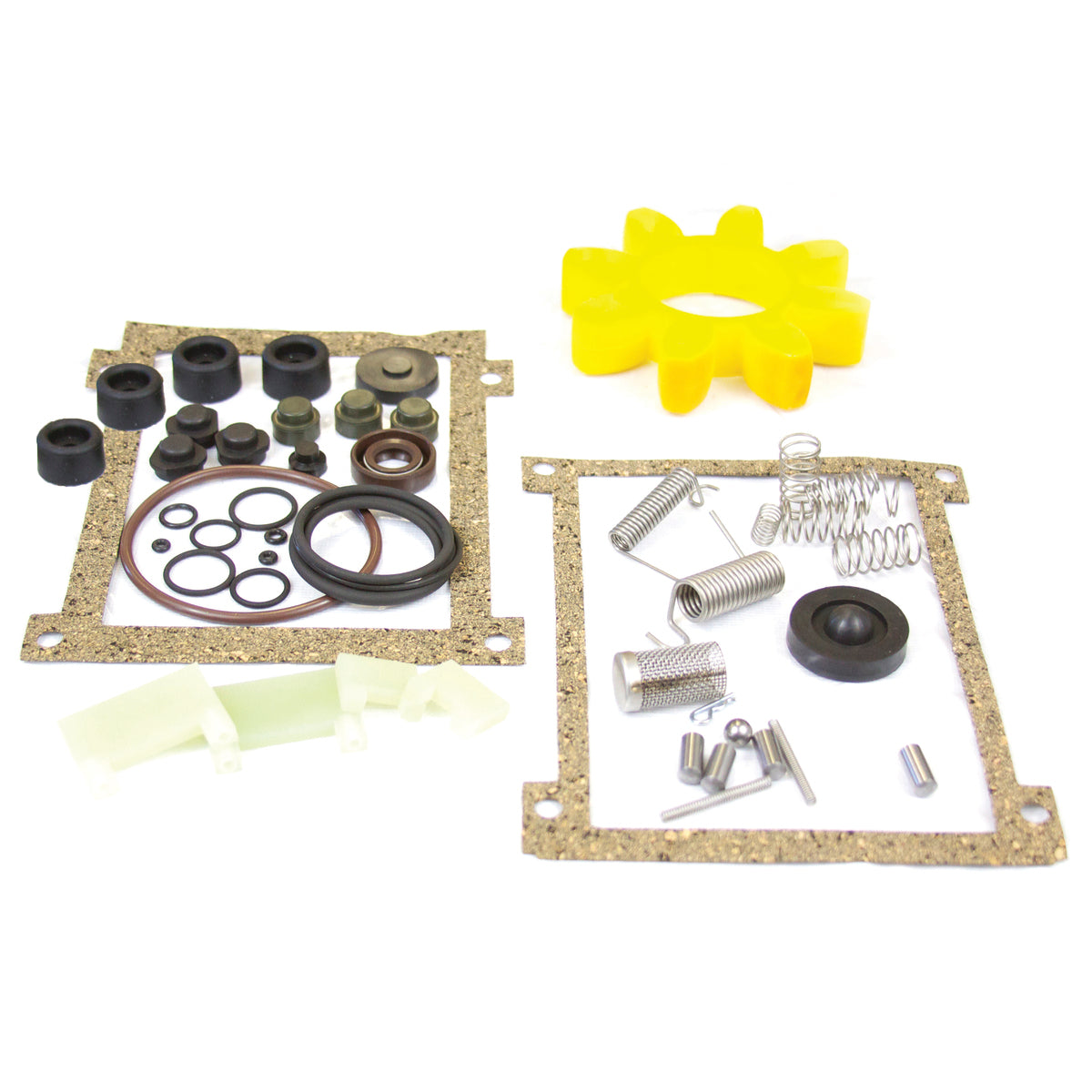

Major Repair Kit with GX Vanes - Varian/Agilent DS402 / DS602 985700228002
Used on:
Galileo: D18, D28
Varian-Agilent: DS402, DS602
For exact kit content details see bill of materials below
General product classifications
Brand | Galileo,Varian-Agilent |
Family | D Series DS Series |
Pump models | D18 D28 DS402 DS602 |
Category | Repair Kits |
Subcategory | Major Kit |
Country of origin | US |
Manual page | GALILEO-59,VARIAN-101 |
Part number alternatives | 23G-D18/28-V |
PART NUMBER | DESCRIPTION | QUANTITY |
---|---|---|
320108 | O - ring, 47.22 x 3.53mm - Viton, Part# 320108 | 1 |
320166 | O-ring, 16 x 2mm - Viton, Part# 320166 | 2 |
250012 | Galileo, Varian-Agilent Inner Ring Shaft Bushing, Part# 250012 | 1 |
300052 | Galileo,Varian-Agilent Casing Gasket, Cork, Part# 300052 | 1 |
310054 | Shaft Seal, 15 x 24 x 7- Viton, Galileo, Varian-Agilent, D Series, DS Series, Part# 310054 | 1 |
40005 | O-ring, 9.25 x 1.78 mm - Viton, Part# 40005 | 1 |
72591001 | O-ring, 10.82 x 1.78 mm - Viton, Part# 72591001 | 1 |
320126 | O-ring, 3.0 x 1.0mm - Buna, Part# 320126 | 2 |
380016 | Exhaust Valve, Galileo, D Series, DS Series, Part# 380016 | 3 |
320502 | O-ring, 13.1x2.62mm - Viton, Part# 320502 | 1 |
720013 | Felt Pad, Galileo, Varian-Agilent, Part# 720013 | 1 |
720012 | Screen Filter, Stainless Steel, Galileo, Varian-Agilent, Part# 720012 | 1 |
640015 | Buffer Foot, Galileo, Varian - Agilent, Part# 640015 | 4 |
619561A | Exhaust Valve Spring, Fisher Scientific, Galileo, Varian - Agilent, Welch, Part# 619561A | 3 |
580040 | Anti - Suckback Valve, Shutter, Galileo, Varian - Agilent, Part# 580040 | 1 |
500501190001 | Coupling Element, Galileo, Varian-Agilent, Part# 500501190001 | 1 |
490034 | Vane Spring, Galileo, Varian - Agilent, Part# 490034 | 2 |
490033 | Spring, Torsion (Special Ends) - Galileo, Varian - Agilent D Series, DS Series, Part# 490033 | 1 |
490028 | Compression Spring, Galileo, Varian - Agilent, Part# 490028 | 1 |
470013 | Ring E-Clip, Stainless Steel-Galileo, Varian-Agilent D Series, DS Series, Part# 470013 | 1 |
450034 | Cotter Pin, Hairpin, Galileo, Varian-Agilent, D Series, DS Series, Part# 450034 | 1 |
450033 | Dowel Pin, Centring, Galileo, Varian-Agilent, Part# 450033 | 4 |
380017 | Valve, Buna, Galileo, Varian - Agilent, D Series, DS Series, D05, DS102, D08, D12, DS42, DS202, DS302, D18, D28, DS402, DS602, Part# 380017. | 1 |
230059G | Galileo Varian-Agilent Vane, 2nd Stage - GX, Part# 230059G | 2 |
230058G | Galileo Varian-Agilent Vane, 1st Stage - GX, Part# 230058G | 2 |
320181 | O-ring, 48.9x2.62mm - Viton, Part# 320181 | 1 |
02124189 | O-ring, 60 x 3.5 mm - Viton, Part# 02124189 | 1 |
320109 | O-ring, 33 x 2.5 mm - Viton, Part# 320109 | 2 |
