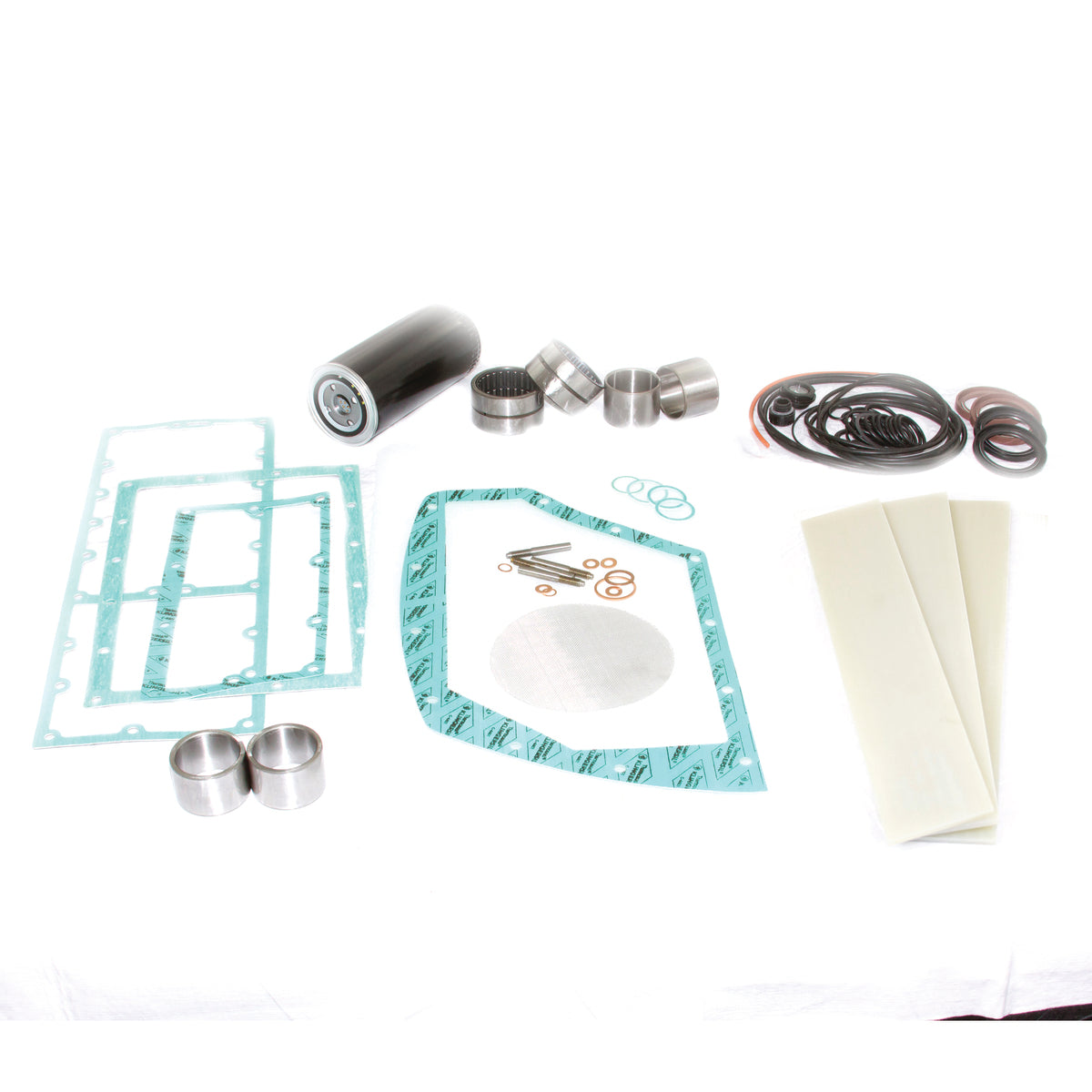

Major Repair Kit with GX Vanes - Busch 1000B, BMK025
For exact kit content see bill of materials below
General product classifications
Brand | Busch |
Family | R5 |
Pump models | 1000B |
Category | Repair Kits |
Subcategory | Overhaul Kits |
Country of origin | GB |
Manual page | BUSCH-32 |
PART NUMBER | DESCRIPTION | QUANTITY |
---|---|---|
48025400 | Busch Valve Housing/Oil Separator Gasket Part# 48025400 | 1 |
43707500 | Busch Taper Pin Part# 43707500 | 2 |
43736600 | Busch Cylinder Pin Part# 43736600 | 2 |
53402400 | BUSCH R5 Inlet Screen, Flat part# 53402400 | 1 |
710000010 | Plug,Oil DRAIN,1/2" NYLON | 1 |
43708000 | Busch Taper Pin, Threaded Part# 43708000 | 4 |
48206600-330MM | Busch O-Ring,Silicone,330MM LONG Part# 48206600-330MM | 1 |
48405700 | Busch Gasket Part# 48405700 | 1 |
83623 | Busch Sight Glass Part# 83623 | 1 |
73001800 | Busch Inlet Ball Valve, Viton Part# 73001800 | 1 |
PL23970147 | O-ring, 16 x 2.5 mm - Viton, Part# PL23970147 | 2 |
47201300 | Busch Shaft Seal Sleeve Part# 47201300 | 2 |
47300700 | Busch Needle Bearing, NA 6911 Part# 47300700 | 2 |
48013100 | Busch Exhaust Box Cover Gasket Part# 48013100 | 2 |
48013200 | Busch Cylinder/Exhaust Box Gasket Part# 48013200 | 1 |
48013300 | Busch Gasket 48013300 | 1 |
48013400 | Busch Side Cover Plate Gasket Part# 48013400 | 1 |
48610300 | Busch O-Ring,Buna,210 X 6mm Part# 48610300 | 2 |
48610400 | Busch O-Ring,Buna,310 X 5mm Part# 48610400 | 2 |
48613600 | Busch O-Ring,Buna,25 X 4mm Part# 48613600 | 2 |
48702100 | Busch Shaft Seal, Buna - 60 x 80 x 7/7.5 Part# 48702100 | 2 |
48702200 | Busch Shaft Seal, Viton - 60 x 80 x 10/8 Part# 48702200 | 2 |
72245600 | Busch Vane - GX Part# 72245600 | 3 |
48610200 | Busch O-Ring,Buna,142 X 6mm Part# 48610200 | 1 |
48607000 | Busch O-Ring,Buna,170 X 2.5mm Part# 48607000 | 1 |
48604000 | Busch O-Ring,Buna,55 X 3mm Part# 48604000 | 2 |
48407000 | Busch Ring Gasket Part# 48407000 | 1 |
48406700 | Busch Ring Gasket Part# 48406700 | 1 |
48405600 | Busch Ring Gasket, Copper Part# 48405600 | 1 |
48403400 | Busch Ring Gasket Part# 48403400 | 4 |
48402900 | Busch Ring Gasket, Copper Part# 48402900 | 2 |
48202300 | Ring Gasket Part# 48202300 | 1 |
48023100 | Busch Oil Sight Glass Gasket Part# 48023100 | 2 |
PL71217402 | Busch O-Ring,Buna,22 X 3 MM Part# PL71217402 | 2 |
500015PP | Sight Glass Assembly | 1 |
