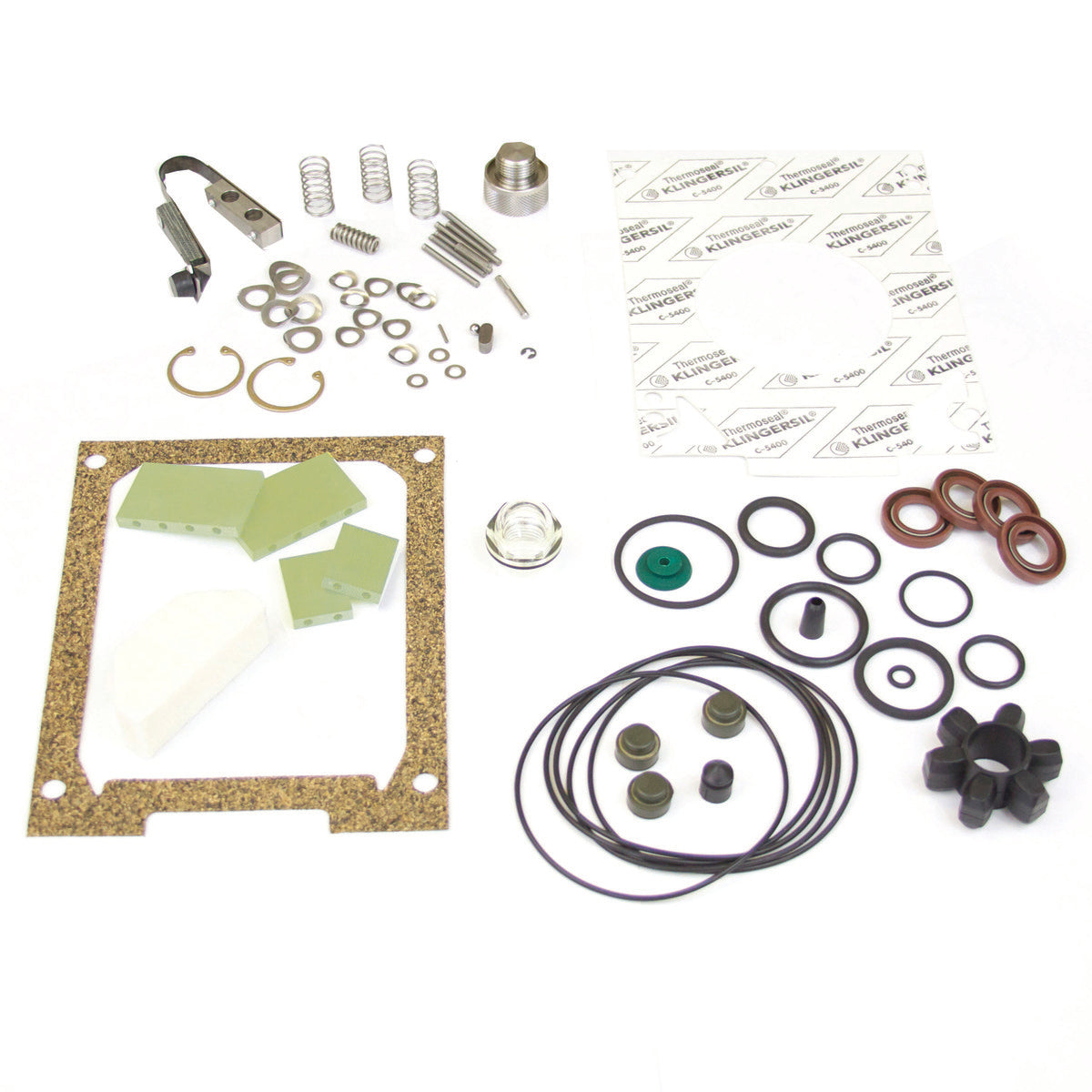

Major Repair Kit with GX Vanes - Alcatel/Adixen 2004 AC 52614ACFR
General product classifications
Brand | Alcatel-Adixen,Varian-Agilent |
Family | Chemical Series CD Series |
Pump models | 2004AC CD-90 |
Category | Repair Kits |
Subcategory | Major Kit |
Country of origin | US |
Manual page | ALCATEL-14 |
Part number alternatives | 52624 |
PART NUMBER | DESCRIPTION | QUANTITY |
---|---|---|
53040 | Alcatel-Adixen, Precision Scientific, Varian-Agilent Vane Spring, Part# 53040 | 4 |
83946FR | Alcatel-Adixen, Precision Scientific, Varian-Agilent Vane, 2nd Stage - GX, Part# 83946FR. | 4 |
52541 | Valve Spring, Alcatel - Adixen, Precision Scientific, Varian - Agilent, Part# 52541 | 3 |
52553 | Elastic Coupler, Alcatel-Adixen, Precision Scientific, Varian-Agilent, Part# 52553 | 1 |
52555 | Fan Plate Gasket, Alcatel-Adixen, Precision Scientific, Part# 52555 | 1 |
52557 | Exhaust Clapper, Alcatel-Adixen, Precision Scientific, Part# 52557 | 1 |
54071 | Retaining Pin-Alcatel-Adixen, Precision Scientific, Varian-Agilent A Series, Chemical Series, DD Series, DDC Series, SD Series, CD Series, Part# 54071 | 1 |
52990 | Felt Pad, Alcatel-Adixen, Precision Scientific, Varian-Agilent A Series, Chemical Series, DD Series, DDC Series, SD Series, CD Series, CP Series, Part# 52990 | 1 |
52755 | Case Gasket, Alcatel-Adixen, Precision Scientific, Varian-Agilent, Part# 52755 | 1 |
52752 | Plug, Drain, Alcatel-Adixen, Precision Scientific, Varian-Agilent, Part# 52752 | 1 |
52683 | Sight Glass-Alcatel-Adixen, Precision Scientific, Varian-Agilent Chemical Series, DDC Series, CD Series, CP Series, Part# 52683 | 1 |
82033 | O-ring, 82 x 2 mm - Viton, Part# 82033 | 5 |
82056 | O-ring, 37 x 2.5 mm - Viton, Part# 82056 | 1 |
82022 | O-ring, 17.12 x 2.62 mm - Viton, Part# 82022 | 2 |
79268 | O-ring, 26.2 x 3.6 mm - Viton, Part# 79268 | 1 |
79133 | O-ring, 21 x 2 mm - Viton, Part# 79133 | 1 |
73461 | Wave Washer, M8, Alcatel-Adixen, Precision Scientific, Part# 73461 | 6 |
73460 | Wave Washer, M6, Alcatel-Adixen, Precision Scientific, Varian-Agilent, Part# 73460. | 9 |
73339 | Flat Washer, M4, Alcatel-Adixen, Precision Scientific, Varian-Agilent, Part# 73339 | 3 |
71181 | C-Clip, Stainless Steel, Alcatel-Adixen, Precision Scientific, Varian-Agilent, Part# 71181 | 2 |
82021 | O-ring, 19.8 x 3.6 mm, Part# 82021 | 1 |
71161 | C-Clip, Alcatel-Adixen, Precision Scientific, Varian-Agilent, Part# 71161 | 1 |
71050 | Dowel Pin, Alcatel-Adixen, Precision Scientific, Varian-Agilent, Part# 71050 | 1 |
82004 | O-ring, 5.7 x 1.9 mm - Viton, Part# 82004 | 1 |
53760 | Anti-Suckback Nib, Buna, Alcatel-Adixen, Precision Scientific, Part# 53760 | 1 |
52562B | Gas Ballast Valve, Buna, Alcatel - Adixen, Precision Scientific, Varian - Agilent, Part# 52562B | 1 |
P52700 | Alcatel-Adixen, Precision Scientific, Varian-Agilent Anti-Suckback Lever, Viton, Pat# P52700 | 1 |
83649 | Shaft Key, Alcatel-Adixen, Precision Scientific, Varian-Agilent, Part# 83649 | 1 |
82522 | Gas Ballast Ball, Alcatel-Adixen, Precision Scientific, Varian-Agilent, Part# 82522 | 1 |
82063 | Alcatel-Adixen,Precision Scientific,Varian-Agilent Shaft Seal, Viton, Part# 82063 | 4 |
52655 | Discharge Valve, Galileo, A Series, Chemical Series, Pascal, D Series, DS Series, Part# 52655 | 3 |
52563 | Gas Ballast Spring - Alcatel - Adixen, Precision Scientific, Varian - Agilent, A Series, Chemical Series, DD Series, DDC Series, SD Series, CD Series, Part# 52563 | 1 |
52564 | Gas Ballast Spring - Alcatel - Adixen, Precision Scientific, Varian - Agilent, A Series, Chemical Series, DD Series, DDC Series, SD Series, CD Series, Part# 52564 | 1 |
82025 | O-ring, 29.3 x 3.6 mm - Viton, Part# 82025 | 1 |
83546PP | Sight Glass (plastic) with Seal, Alcatel-Adixen, Precision Scientific, Varian-Agilent, Part# 83546PP | 1 |
