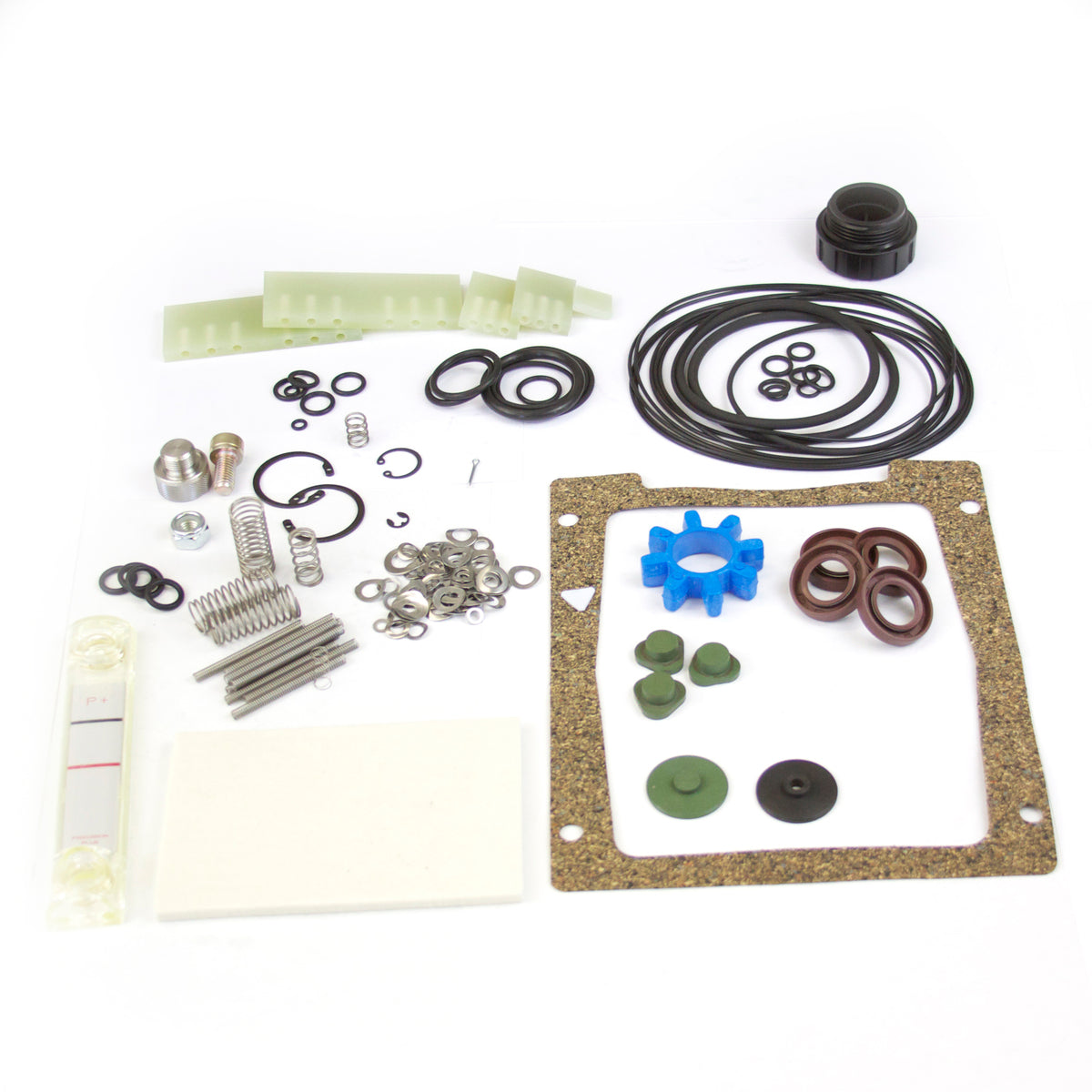

Major Repair Kit with GX Vanes, 65061KIT
Major Repair Kits with GX Vanes includes; coupling, element, c-clips, O-rings, gaskets, washers, shaft seals, Vanes, springs, and sight glass for major overhaul.
General product classifications
Brand | Alcatel-Adixen |
Family | Chemical Series |
Pump models | 2033CP |
Category | Repair Kits |
Subcategory | Major Kit |
Country of origin | US |
Manual page | ALCATEL-20 |
Part number alternatives | 23A-2033CP-VG |
PART NUMBER | DESCRIPTION | QUANTITY |
---|---|---|
71338 | Nut-Alcatel-Adixen, Precision Scientific Pascal, A Series, Chemical Serie, Part# 71338 | 1 |
73339 | Flat Washer, M4, Alcatel-Adixen, Precision Scientific, Varian-Agilent, Part# 73339 | 2 |
73446 | Wave Washer, M10, Alcatel-Adixen, Varian-Agilent, Part# 73446 | 4 |
73460 | Wave Washer, M6, Alcatel-Adixen, Precision Scientific, Varian-Agilent, Part# 73460. | 21 |
73461 | Wave Washer, M8, Alcatel-Adixen, Precision Scientific, Part# 73461 | 23 |
75024 | Socket Head Cap Screw-Alcatel-Adixen, Varian-Agilent Pascal, A Series, Chemical Series, SD Series, CD Series, CP Series, Part# 75024 | 1 |
76261 | Cotter Pin, Alcatel-Adixen, Varian-Agilent, Part# 76261 | 1 |
76261C | C-Clip-Alcatel-Adixen, Varian-Agilent Pascal, A Series, Chemical Series, SD Series, CD Series, Part# 76261C | 1 |
87942 | Vane Spring, Alcatel - Adixen, Precision Scientific, Varian - Agilent, Part# 87942 | 9 |
87996G | Alcatel-Adixen,Varian-Agilent Vane, 2nd Stage - GX, Part# 87996G. | 2 |
87941G | Alcatel-Adixen,Varian-Agilent Vane, 1st Stage - GX, Part# 87941G | 2 |
54091 | Elastic Coupler, Blue, Alcatel-Adixen, Varian-Agilent, Part# 54091 | 1 |
53443 | Discharge Valve, Alcatel - Adixen, Varian - Agilent, Part# 53443 | 3 |
52752 | Plug, Drain, Alcatel-Adixen, Precision Scientific, Varian-Agilent, Part# 52752 | 1 |
54451G | Vane, Oil pump, Alcatel - Adixen, Varian - Agilent, Part# 54451G | 1 |
82027 | O-ring, 91.44 x 5.33 mm - Viton, Part# 82027 | 2 |
82039 | O-ring, 128 x 2 mm - Viton, Part# 82039 | 4 |
82067 | O-ring, 44 x 3 mm - Viton, Part# 82067 | 2 |
82925 | Plug, Fill, 2033-2063C, Alcatel-Adixen, Varian-Agilent, Part# 82925 | 1 |
87954 | Valve Spring, Alcatel - Adixen, Precision Scientific, Varian - Agilent, Part# 87954 | 3 |
71191 | C-Clip, Alcatel-Adixen, Varian-Agilent, Part# 71191 | 1 |
71188 | C-Clip- Alcatel-Adixen, Varian-Agilent, Pascal, A Series, Chemical Series, SD Series, CD Series, CP Series, Part# 71188 | 2 |
82056 | O-ring, 37 x 2.5 mm - Viton, Part# 82056 | 1 |
65148 | Spring - Alcatel - Adixen, Varian - Agilent, Chemical Series, CP Series, Part# 65148 | 1 |
65079 | Sight Glass Assembly, Alcatel-Adixen, Varian-Agilent, Part# 65079 | 1 |
65059 | Felt Pad, Alcatel-Adixen, Varian-Agilent, Part# 65059 | 1 |
54224 | Clapper-Alcatel-Adixen, Varian-Agilent Pascal, A Series, Chemical Series, SD Series, CD Series, CP Series, Part# 54224 | 1 |
82007 | O-ring, 10.77 x 2.62 mm - Viton, Part# 82007 | 4 |
79303 | O-ring, 8 x 2 mm - Viton, Part# 79303 | 2 |
82013 | O-ring, 40.64 x 5.33 mm - Viton, Part# 82013 | 1 |
82015 | O-ring, 9.19 x 2.62 mm - Viton, Part# 82015 | 1 |
79137 | O-ring, 148 x 2 mm - Viton, Part# 79137 | 4 |
79136 | O-ring, 95 x 3 mm - Viton, Part# 79136 | 1 |
79134 | O-ring, 8 x 2 mm - Viton, Part# 79134 | 2 |
79101 | Shaft Seal, Alcatel-Adixen, Varian-Agilent, Part# 79101 | 4 |
82022 | O-ring, 17.12 x 2.62 mm - Viton, Part# 82022 | 1 |
82024 | O-ring, 12.37 x 2.62 mm - Viton, Part# 82024 | 4 |
82025 | O-ring, 29.3 x 3.6 mm - Viton, Part# 82025 | 2 |
54134 | Exhaust Valve, Alcatel - Adixen, Varian - Agilent, Part# 54134 | 1 |
54128 | Case Gasket, Alcatel-Adixen, Varian-Agilent, Part# 54128 | 1 |
54145 | Spring - Alcatel - Adixen, Varian - Agilent Pascal, A Series, Chemical Series, Part# 54145 | 1 |
54149 | Spring, Alcatel - Adixen, Varian - Agilent, Part# 54149 | 1 |
54196 | Oil pump Membrane, Alcatel-Adixen, Varian-Agilent, Part# 54196 | 1 |
