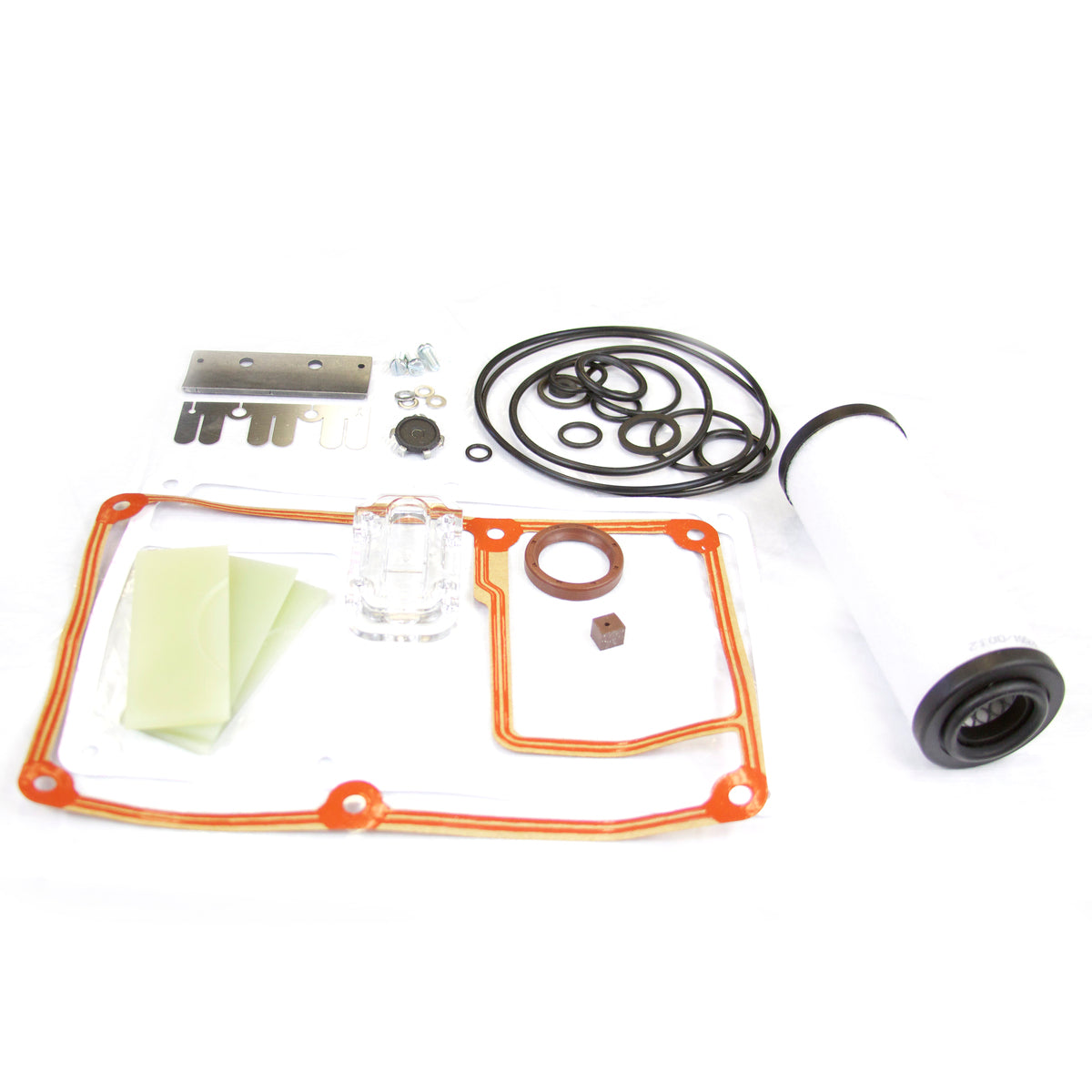

Major Repair Kit with GX Vanes PL71403560
Major Kit with GX Vanes includes; O-rings, shaft seals, oil & exhaust filters, Vanes, coupling, Valve plate(s) & bearings as required for major overhaul.
General product classifications
| Brand | Leybold |
| Family | Sogevac |
| Pump models | SV100 |
| Category | Repair Kits |
| Subcategory | Major Kit |
| Country of origin | US |
| Manual page | LEYBOLD-70 |
| Part number alternatives | 71403560 23L-SV100-V |
| PART NUMBER | DESCRIPTION | QUANTITY |
|---|---|---|
| 20405009 | Shaft Seal, Edwards, Sogevac, SV40, SV65, SV100, Part# 20405009 | 3 |
| 300073 | Copper Crush Gasket, 10 mm- Leybold Sogevac, Part# 300073 | 4 |
| 300076 | Copper Crush Gasket, 16 mm-Leybold Sogevac, Part# 300076 | 2 |
| 300075 | Copper Crush Gasket, 14 mm-Leybold Sogevac, Part# 300075 | 12 |
| 320183 | O-ring, 52 x 2.5 mm - Buna, Part# 320183 | 3 |
| 70100197 | Coupling Element, Leybold, Part# 70100197 | 1 |
| PL71064763 | Leybold FILTER,COALESCING EXH.,227MM Part# PL71064763 | 2 |
| 550045 | Busch Oil Sight Glass, 3/4" Part# 550045 | 1 |
| 71234170G | Vane, 1st Stage - GX, Leybold, Sogevac, SV100, Part# 71234170G | 3 |
| PL71020112 | Shaft Seal, Leybold, Sogevac, SV40, SV65, SV100, Part# PL71020112 | 1 |
| PL71217848 | Dowty Seal-Leybold Sogevac, Part# PL71217848 | 4 |
| PL71217808 | Dowty Seal-Leybold Sogevac, Part# PL71217808 | 3 |
| PL71217332 | O-ring, 32 x 3.5 mm - Buna, Part# PL71217332 | 1 |
| PL71213158 | Oil Filter, Leybold, Sogevac, SV100, Part# PL71213158 | 1 |
| PL71212503 | Float Valve Seal, Leybold, Sogevac, Part# PL71212503 | 1 |
| PL71212473 | Gasket, Leybold, Sogevac, Part# PL71212473 | 1 |
| PL71046292 | O-ring, 27 x 2 mm - Buna, Part# PL71046292 | 3 |
| PL71212413 | Inlet Flange Gasket, Leybold, Sogevac, SV40, SV65, SV100, Part# PL71212413 | 1 |
| PL71036722 | O-ring, 27 x 2.5 mm - Buna, Part# PL71036722 | 3 |
| PL71032252 | O-ring, 28 x 3 mm - Buna, Part# PL71032252 | 3 |
| PL71029972 | O-ring, 123 x 3 mm - Buna, Part# PL71029972 | 2 |
| PL71028184 | Inlet Plate Gasket, Leybold, Sogevac, SV100, Part# PL71028184 | 1 |
| PL71015463 | Seal, Anti-Suckback Valve-Leybold Sogevac, Part# PL71015463 | 1 |
| PL71018048 | Joint Plate Gasket, Leybold, Sogevac, SV200, SV300, Part# PL71018048 | 1 |
| PL71001664 | Stop Valve - Leybold, Sogevac, Part# PL71001664 | 1 |
| PL71001674 | Valve Plate, Leybold, Sogevac, SV100, SV180, Part# PL71001674 | 1 |
| PL71010264 | Joint Plate Gasket, Leybold, Sogevac, SV100, Part# PL71010264 | 1 |
| PL71010414 | Gasket, Leybold, Sogevac, SV100, Part# PL71010414 | 1 |
| PL71017993 | Relief Valve Seal, Leybold, Sogevac, Part# PL71017993 | 1 |
