Major Repair Kit with GX Vanes 19120D4KIT

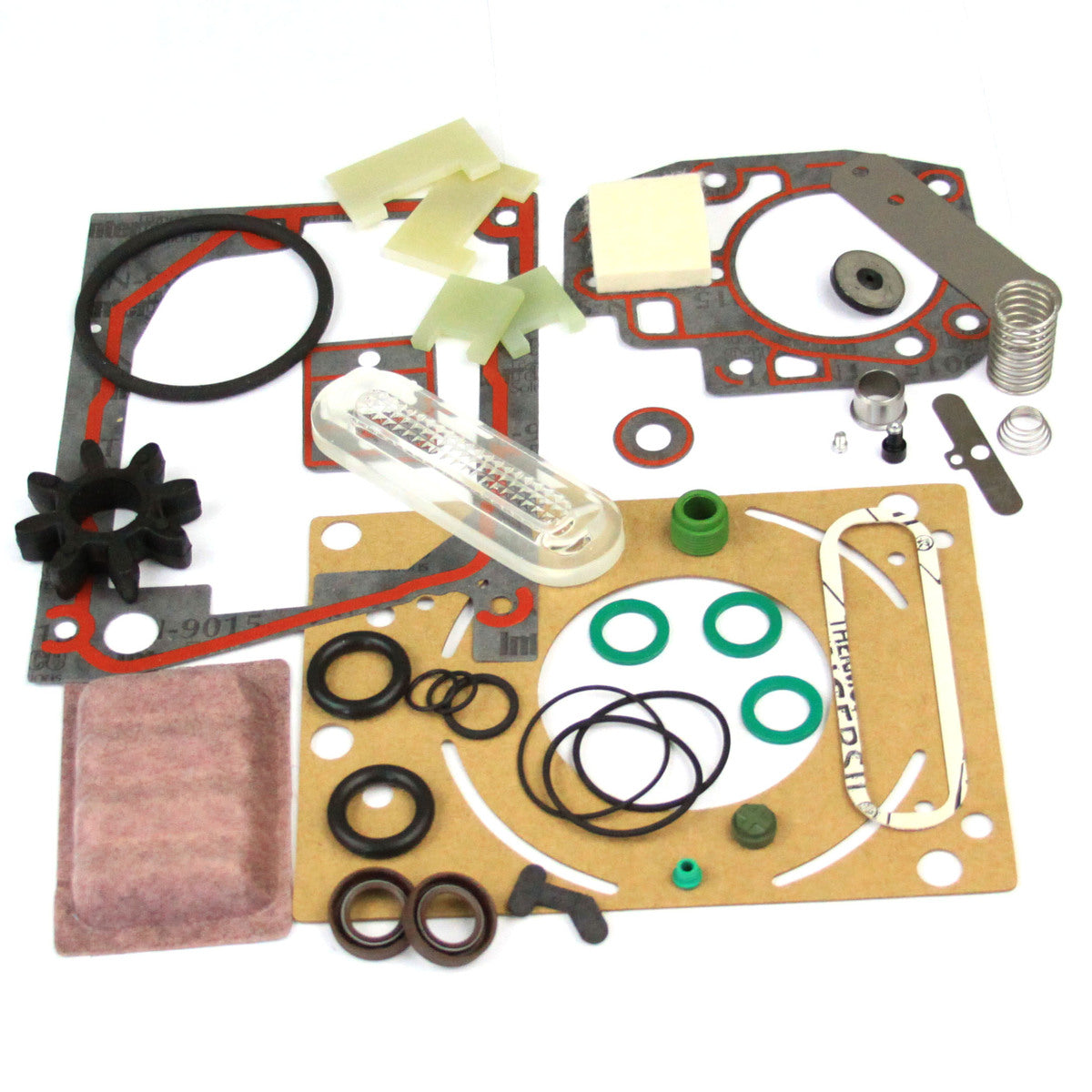

Major Repair Kit includes; coupling element, O-rings, shaft seal, Vanes, and Valves and other components for a major overhaul
General product classifications
Brand | Leybold |
Family | Trivac |
Pump models | D4B |
Category | Repair Kits |
Subcategory | Major Kit |
Country of origin | US |
Manual page | LEYBOLD-66 |
Part number alternatives | 19120B4 |
PART NUMBER | DESCRIPTION | QUANTITY |
---|---|---|
PL23970509 | O - ring, 70 x 5 mm - Viton, Part# PL23970509 | 1 |
23973043 | Leybold Gasket, Part# 23973043 | 1 |
23973044 | Gasket, Flat, Leybold, Trivac, Part# 23973044 | 1 |
23973047 | Leybold Case Gasket, Part# 23973047 | 1 |
23973057 | Sight Glass Gasket, Leybold, Trivac, Part# 23973057 | 1 |
PL23970176 | O-ring, 18.42 x 5.33 mm - Viton, Part# PL23970176 | 2 |
PL23970147 | O-ring, 16 x 2.5 mm - Viton, Part# PL23970147 | 1 |
PL23970015 | O-ring, 40 x 1.5 mm - Viton, Part# PL23970015 | 1 |
PL23953006 | Shaft Seal, Leybold, Trivac, Part# PL23953006 | 2 |
PL22161040 | Stainless Steel Spring, Leybold, Trivac, Part# PL22161040 | 1 |
PL22161031 | Split Spring, Leybold, Trivac, D4B, D8B, Part# PL22161031 | 1 |
PL20039220 | Leybold Vane 1st & 2nd Stage, Part# PL20039220 | 4 |
PL20010731 | Coupling Gasket, Leybold, Trivac, D4B, D8B, S8B, Part# PL20010731 | 1 |
PL20009244 | Oil Nozzle, Leybold, Trivac, D4B, D8B, Part# PL20009244 | 1 |
PL20009111 | Leybold Shaft Sleeve Collar, Part# PL20009111 | 1 |
PL20009110 | Coupling Insert, Leybold, Trivac, Part# PL20009110 | 1 |
PL20010730 | Leybold Beaded Gasket, Mylar, Part# PL20010730 | 1 |
P23970108 | O-ring, 12 x 1.5 mm - Viton, Part# P23970108 | 2 |
P23955165 | Leybold Gasket, Viton, Part# P23955165 | 3 |
PL40175023 | Pressure Relief Valve, Leybold, Trivac, Part# PL40175023 | 1 |
PL15108035 | Felt Pad, Leybold, Trivac, D4B, D8B, S8B, Part# PL15108035 | 1 |
PL40175014 | Exhaust Valve Plate, Leybold, Trivac, Part# PL40175014 | 1 |
PL40159003 | Valve Plate, Leybold, Trivac, Part# PL40159003 | 1 |
PL39350019 | Leybold Silencer Nozzle, Part# PL39350019 | 1 |
PL39026010 | Demister Filter, Leybold, Trivac, D4B, Part# PL39026010 | 1 |
PL35001179 | Leybold Sight Glass Part# PL35001179 | 1 |
PL34861029 | Seal, Leybold, Trivac, Part# PL34861029 | 1 |
PL34861028 | Non - Return Valve, Leybold, Trivac, Part# PL34861028 | 1 |
PL23973146 | Seal, Float, Leybold, Trivac, Part# PL23973146 | 1 |
PL23970163 | O-ring, 38 x 2 mm - Viton, Part# PL23970163 | 2 |
