Major Repair Kit with GX Vanes 10162KIT
Used on Leybold Trivac S8A

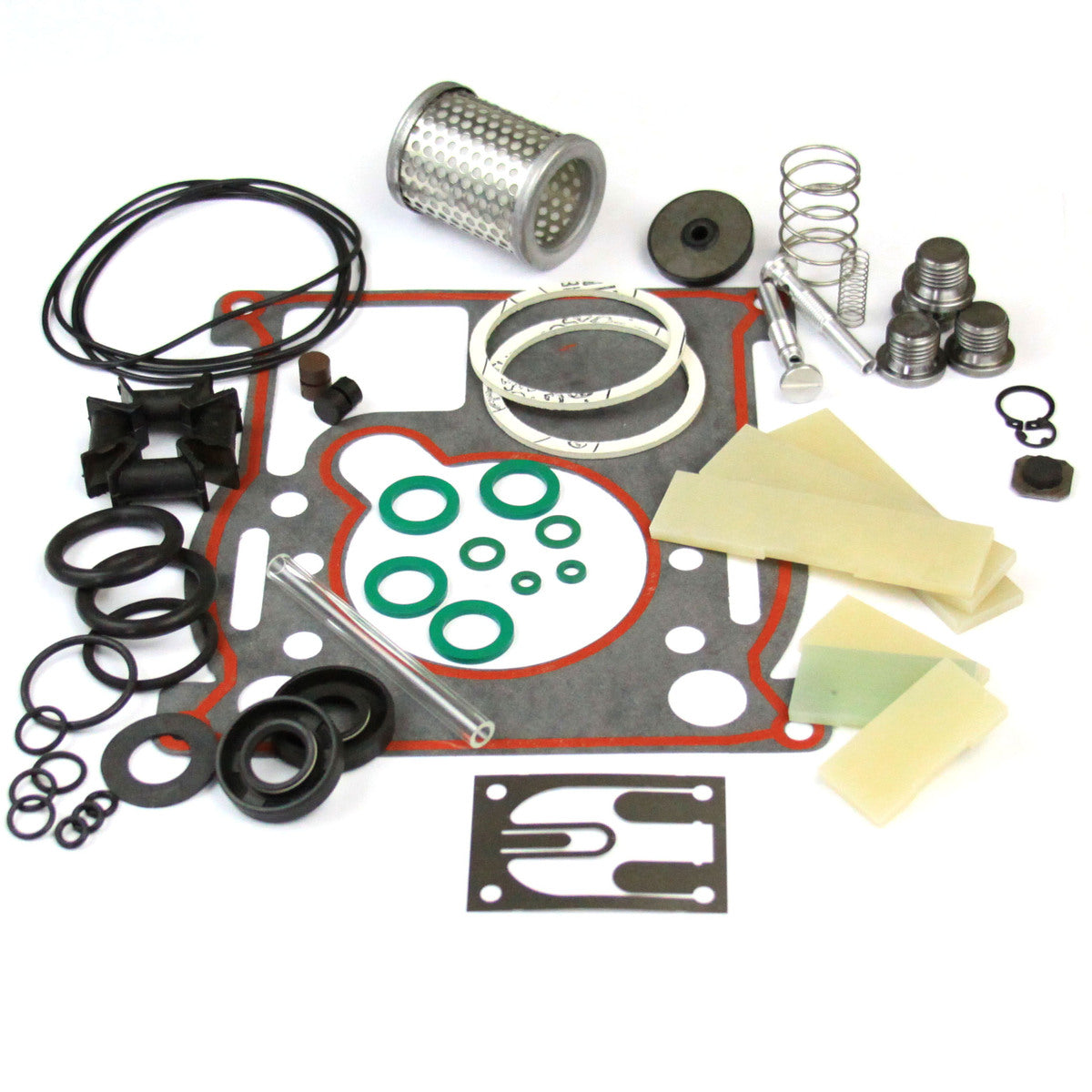

Major Repair Kit includes coupling element, O-rings, gaskets, shaft seals, Vanes & other components for a major overhaul.
General product classifications
Brand | Leybold |
Family | Trivac |
Pump models | S8A |
Category | Repair Kits |
Subcategory | Major Kit |
Country of origin | US |

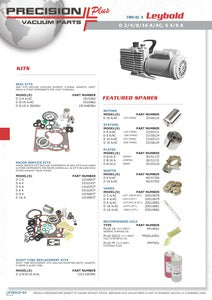

Manual page | LEYBOLD-64 |
Part number alternatives | 23L-S8A |
PART NUMBER | DESCRIPTION | QUANTITY |
---|---|---|
72590001 | Flat Gasket, Leybold, Trivac, Part# 72590001 | 2 |
72590000 | Gasket, Viton-Leybold Trivac, Part# 72590000 | 2 |
72000129 | Mounting Bolt, Leybold, Trivac, Part# 72000129 | 2 |
70100147 | Coupling Element, Leybold, Trivac, S4A, S8A, Part# 70100147 | 1 |
23953142 | Shaft Seal, 15 x 232 x 7, Leybold, Trivac, D8A, D16A, Part# 23953142 | 2 |
PL23925226 | Gas Ballast Gasket, Leybold, Trivac, Part# PL23925226 | 1 |
23820156 | Intake/Exhaust Gasket, Leybold, Trivac, Part# 23820156 | 2 |
23811126 | Case Seal Gasket, Leybold, Trivac, Part# 23811126 | 1 |
PL20127105 | Plug Screw, Leybold, Part# PL20127105 | 4 |
P23955165 | Leybold Gasket, Viton, Part# P23955165 | 4 |
23955171 | Sight Glass Gasket-Leybold Trivac, Part# 23955171 | 1 |
PL23970117 | O-ring, 29 x 3 mm - Viton, Part# PL23970117 | 1 |
23970148 | O-ring, 5 x 2 mm - Viton, Part# 23970148 | 3 |
PL23970436 | O-ring, 27 x 2.5 mm - Viton, Part# PL23970436 | 1 |
PL23970506 | O-ring, 27.94 x 5.33 mm - Viton, Part# PL23970506 | 2 |
23973131V | Anti-Suckback Nib, Viton- Leybold, Trivac, Part# 23973131V | 1 |
39026117 | Oil Filter, Leybold, Trivac, Part# 39026117 | 1 |
40050139 | Anti - Suckback Valve, Disc, Leybold, Trivac, Part# 40050139 | 1 |
40164116 | Leybold Plate Valve , Part# 40164116 | 1 |
22161199 | Spring, Leybold, Trivac, Part# 22161199 | 1 |
23105107 | Retaining Disc, Leybold, Trivac, Part# 23105107 | 1 |
PL23103101 | Retaining ring, Leybold, Trivac, Part# PL23103101 | 1 |
72211003 | Tube Sight Glass-Leybold Trivac, Part# 72211003 | 1 |
72591001 | O-ring, 10.82 x 1.78 mm - Viton, Part# 72591001 | 2 |
72591000 | O-ring, 9.25 x 1.78 mm - Viton, Part# 72591000 | 2 |
PL20010882 | Vanes, 1st & 2nd Stage, Leybold, Trivac, Part# PL20010882 | 3 |
PL23970156 | O-ring, 86 x 2 mm - Viton, Part# PL23970156 | 2 |
PL23973131 | Anti-Suckback Nib, Buna, Leybold, Trivac, Part# PL23973131 | 1 |
