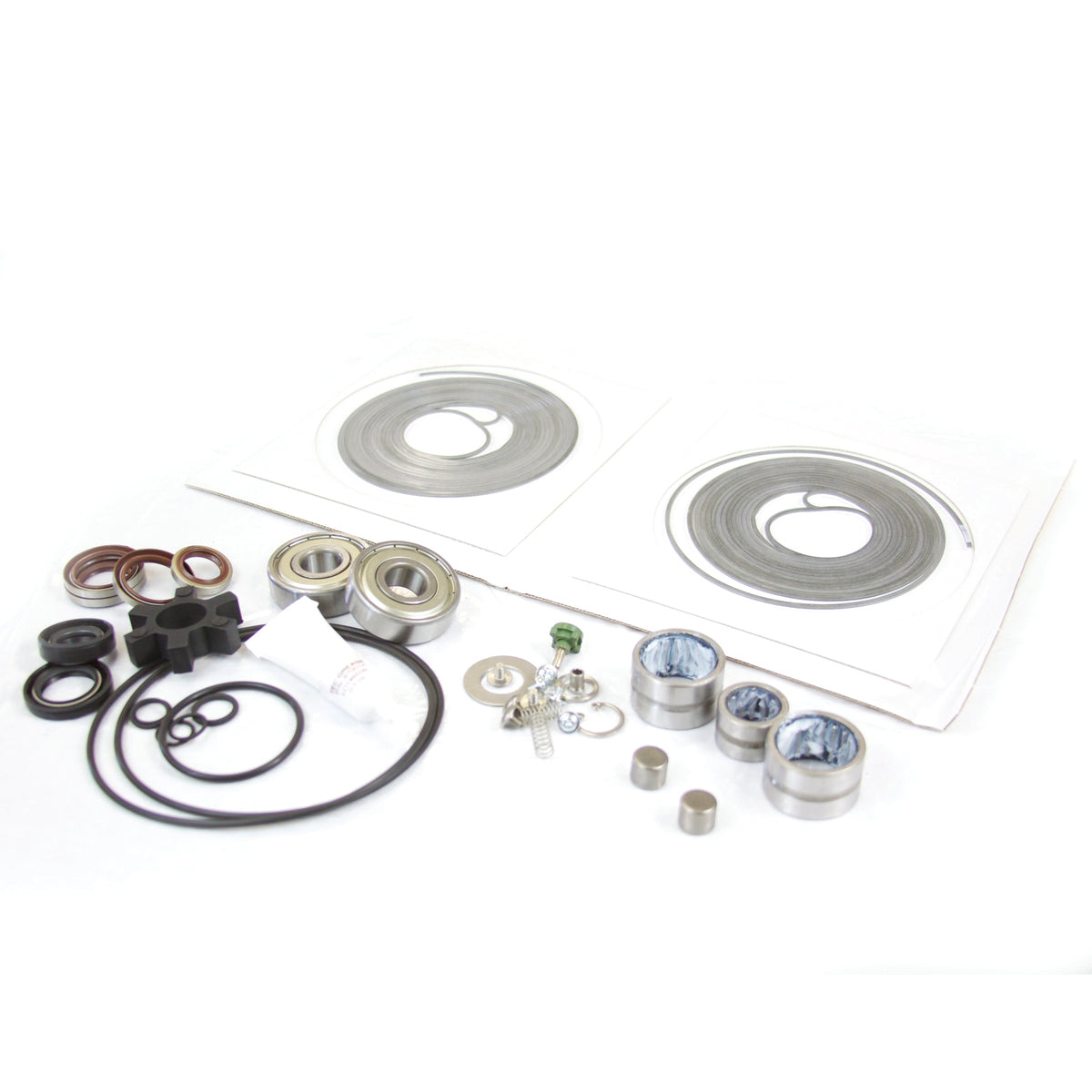

Major Repair Kit - Tip Seals - Multiple Brands / Models P71004800
Used on:
Anest-Iwata:ISP500B, ISP500C
Edwards:ESDP30, ESDP30A, GVSP30
Leybold:SC30D
Ulvac:DIS500, DIS501
Varian-Agilent:DS600
For complete kit contents details see bill of materials below
General product classification
| Brand | Iwata,Edwards,Leybold,Ulvac,Varian-Agilent |
| Family | Scroll Scrollvac |
| Pump models | ISP500B ISP500C ESDP30 ESDP30A GVSP30 SC30D DIS500 DIS501 DS600 |
| Category | Repair Kits |
| Subcategory | Major Kit |
| Country of origin | US |

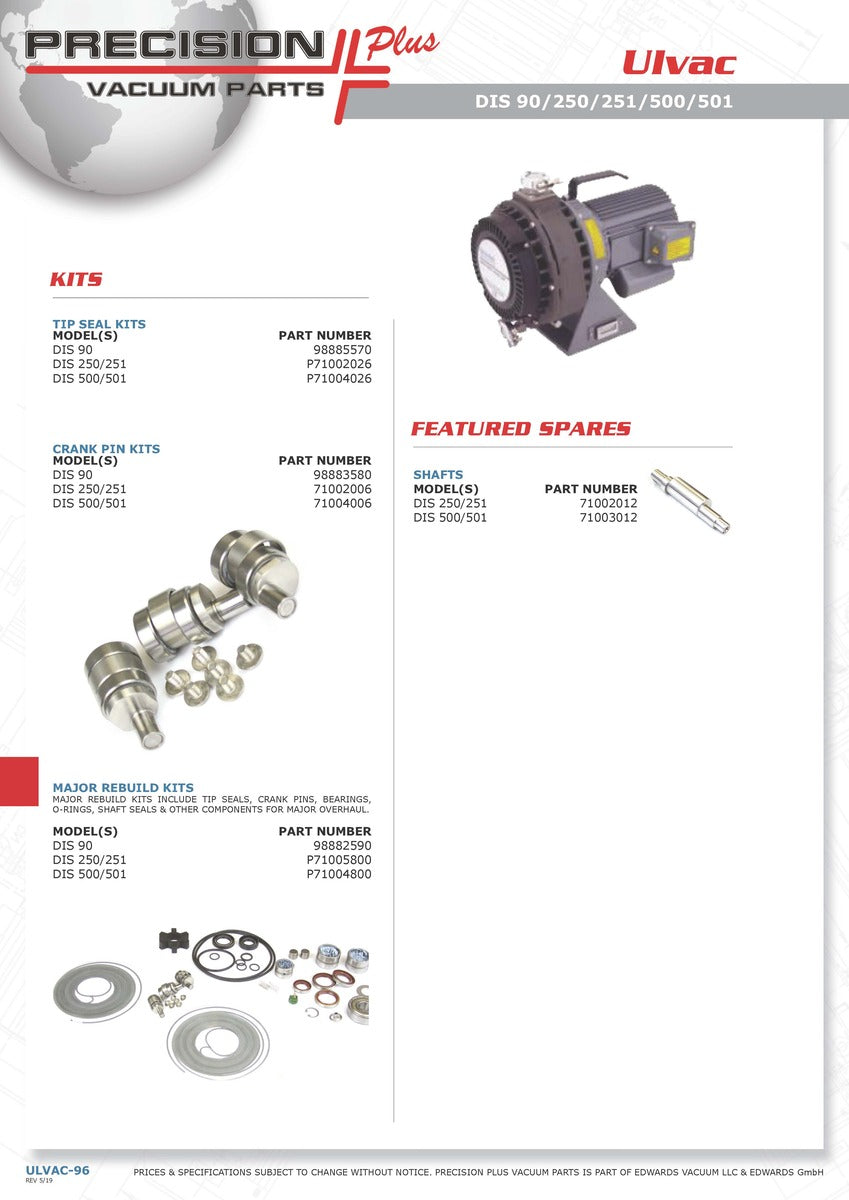

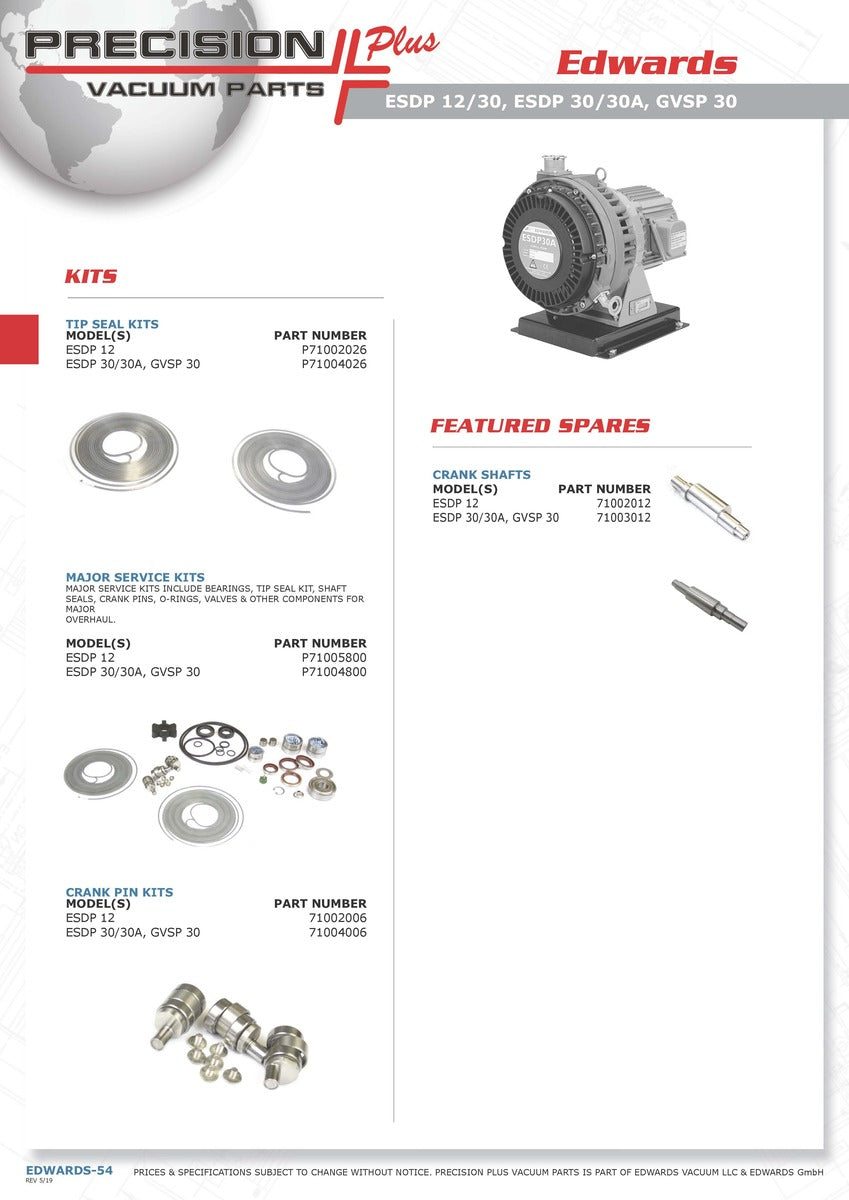

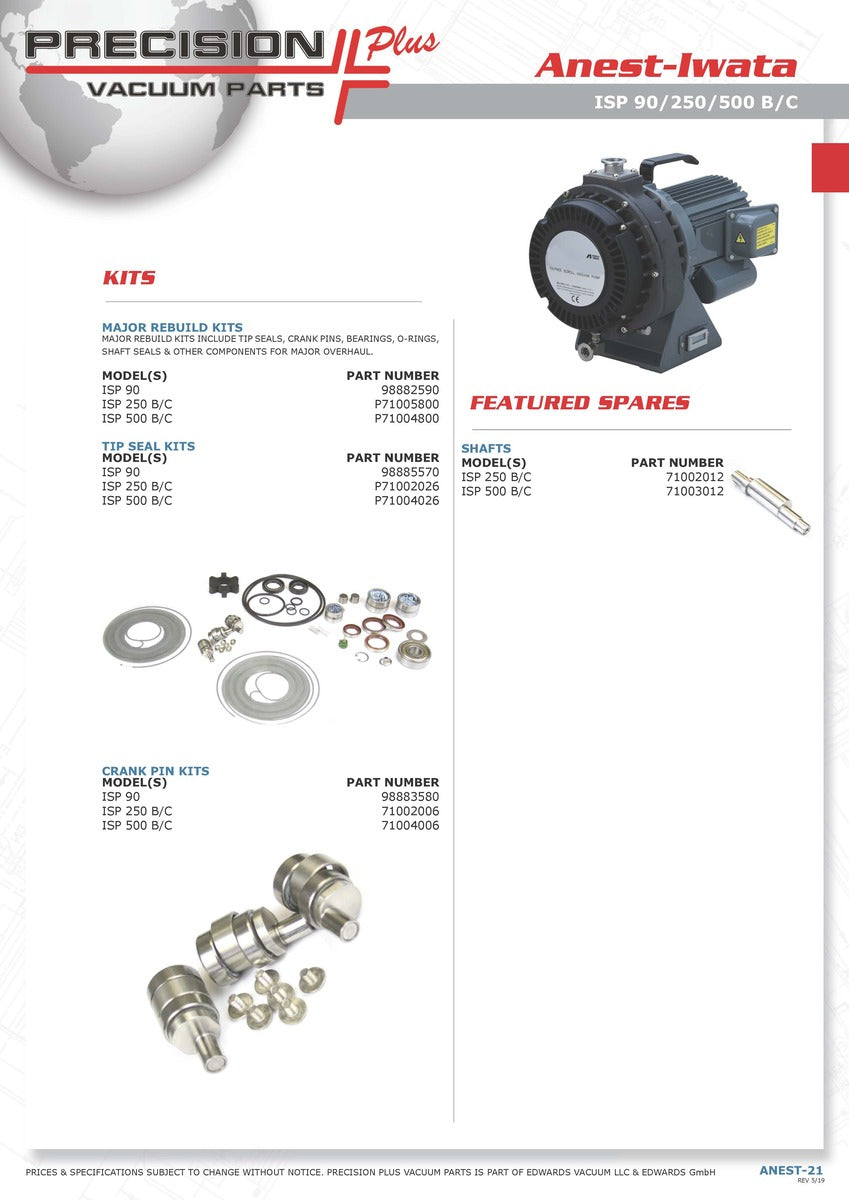

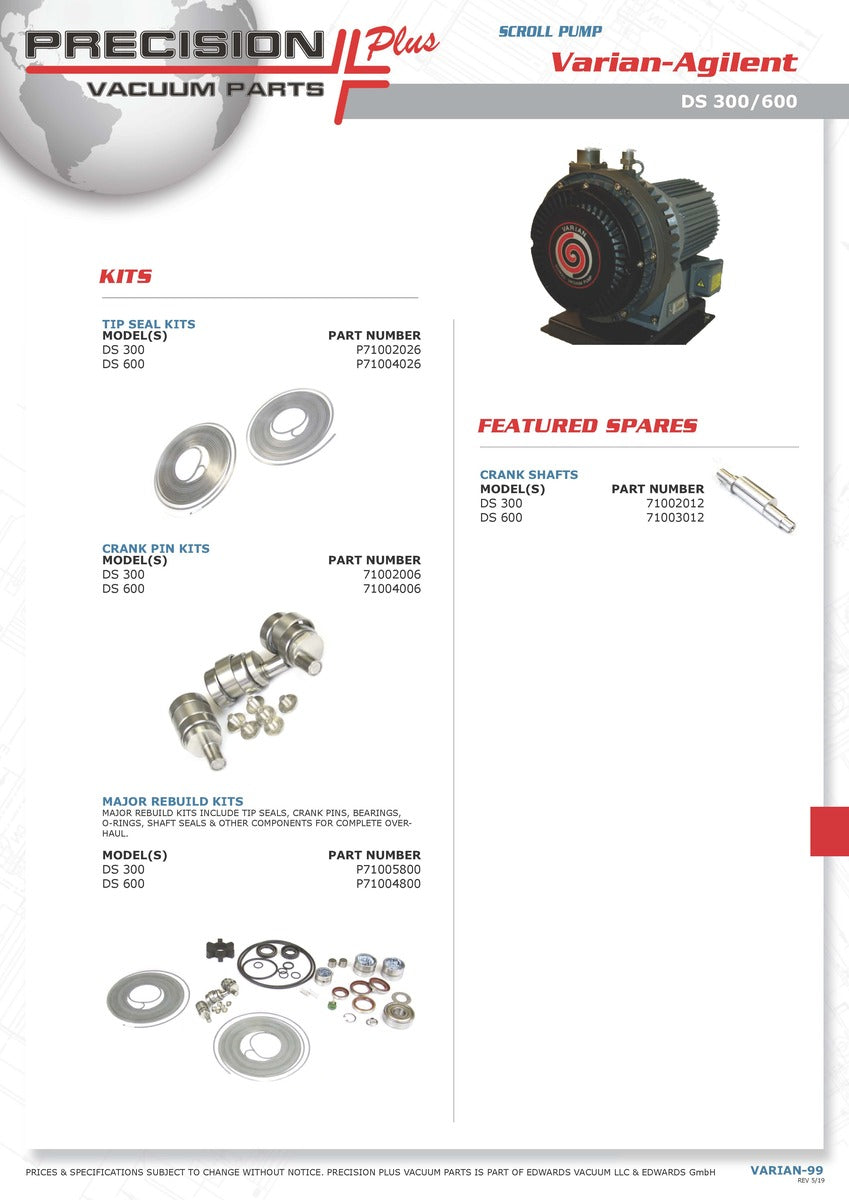

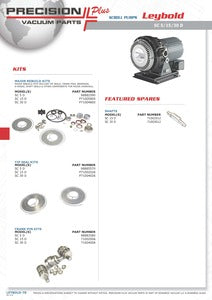

| Manual page | ANESTA-21,EDWARDS-54,LEYBOLD-78,ULVAC-96,VARIAN-99 |
| Part number alternatives | 23AW-ISP500-MAJORin |
| PART NUMBER | DESCRIPTION | QUANTITY |
|---|---|---|
| 08804072 | Shaft Seal, Iwata, Edwards, Part# 08804072 | 1 |
| 420039 | Scroll Seal Washer, Mylar, Shielded, Iwata, Edwards, Leybold, Ulvac, Varian-Agilent, Part# 420039 | 4 |
| 08882150 | Grease Seal with Garter Spring, Iwata, Edwards, Leybold, Ulvac, Varian-Agilent, Part# 8882150 | 2 |
| 320189 | O-ring, 250 x 3 mm - Viton, Part# 320189 | 1 |
| 08802390 | Exhaust Valve, Shielded, Iwata, Edwards, Leybold, Ulvac, Varian - Agilent, Part# 8802390 | 1 |
| 08804390 | Exhaust Valve Spring, Shielded, Iwata, Edwards, Leybold, Ulvac, Varian - Agilent, Part# 8804390 | 1 |
| 08880020 | Needle Bearing, Shielded, Iwata, Edwards, Leybold, Ulvac, Varian-Agilent, Part# 8880020 | 2 |
| 08881000 | Coupling Element, Black, Shielded, Iwata, Edwards, Leybold, Ulvac, Varian-Agilent, Part# 8881000 | 1 |
| 08884001 | Needle Bearing, Crank Pin, Shielded, Iwata, Edwards, Leybold, Ulvac, Varian-Agilent, Part# 8884001 | 3 |
| 08884010 | Needle Bearing, Shielded, Iwata, Edwards, Leybold, Ulvac, Varian-Agilent, Part# 8884010 | 1 |
| 20019794 | O-ring, 17 X 1.5 - Viton, Part# 20019794 | 1 |
| PL23970304 | O-ring, 45 x 3 mm - Viton, Part# PL23970304 | 1 |
| 07193002 | Grease Seal, Iwata, Edwards, Leybold, Ulvac, Varian-Agilent, Part# 7193002 | 1 |
| 08882100 | Shaft Seal, Iwata, Edwards, Leybold, Ulvac, Varian-Agilent, Part# 8882100 | 1 |
| 08885012 | Shaft Seal, Iwata, Edwards, Leybold, Ulvac, Varian-Agilent, Part# 8885012 | 1 |
| 320087 | O-ring, 13.5 x 1.5 mm - Viton, Part# 320087 | 1 |
| 400068 | Washer Head Screw, Iwata, Edwards, Leybold, Ulvac, Varian-Agilent, Part# 400068 | 6 |
| 08801050 | Spring, Iwata, Edwards, Leybold, Ulvac, Varian - Agilent, Scroll, Scrollvac, Part# 8801050 | 1 |
| 08805380 | Exhaust Valve Stem, Shielded, Iwata, Edwards, Leybold, Ulvac, Varian - Agilent, Part# 8805380 | 1 |
| 08805041 | Valve Guide, Outlet, Shielded, Iwata, Edwards, Leybold, Ulvac, Varian-Agilent, Part# 8805041 | 1 |
| P71004026 | Tip Seal Kit - Anest-Iwata, Edwards, Leybold, Ulvac, Varian-Agilent, Part# P71004026 | 1 |
| 870014 | Tec Grease 19 - 0.5 oz | 1 |
| 71004006S | Single Crankpin - Anest-Iwata, Edwards, Leybold, Ulvac, Varian-Agilent Part# 71004006S | 3 |
| 400033 | Phillips Screw, Truss Head, Iwata, Edwards, Leybold, Ulvac, Varian-Agilent, Scroll, Scrollvac, Part# 400033 | 6 |
| 330008 | Bearing, Shielded, Iwata, Edwards, Leybold, Ulvac, Varian-Agilent, Part# 330008 | 1 |
| 320121 | O-ring, 36 X 1.5 - Viton, Part# 320121 | 1 |
| 320086 | O-ring, 14.5 x 1.5 mm - Viton, Part# 320086 | 6 |
