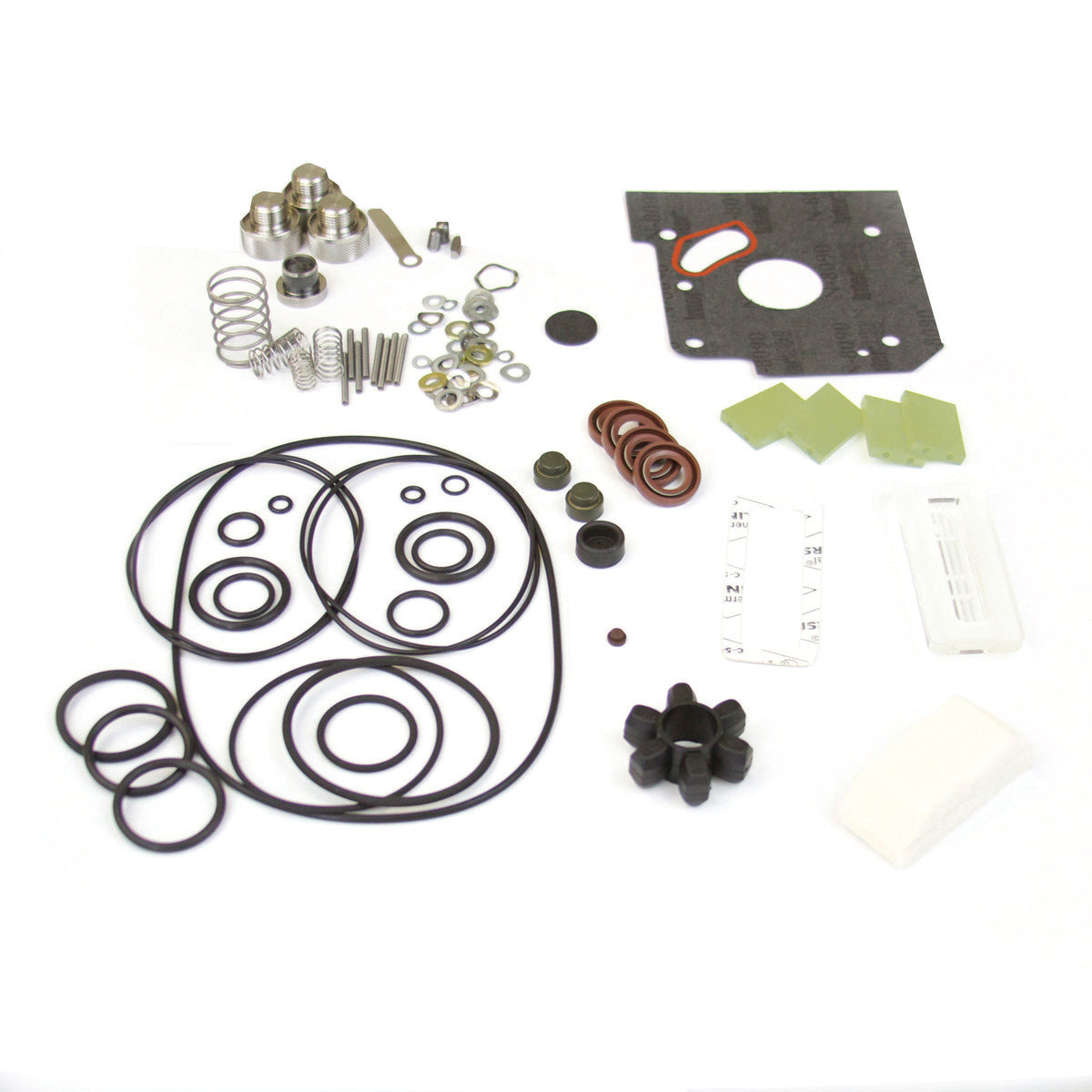

Major Repair Kit - Alcatel 2015 C/CP, 65613FR
Used on Alcatel-Adixen Pascal,Chemical Series 2015C, 2015CP
For complete kit content details see bill of materials below
General product classifications
Brand | Alcatel-Adixen |
Family | Pascal Chemical Series |
Pump models | 2015C 2015CP |
Category | Repair Kits |
Subcategory | Major Kit |
Country of origin | US |
Manual page | ALCATEL-12 |
PART NUMBER | DESCRIPTION | QUANTITY |
---|---|---|
71067 | Shaft Key, Alcatel-Adixen, Precision Scientific, Part# 71067 | 1 |
71040 | Centring Pin, Alcatel-Adixen, Precision Scientific, Varian-Agilent, Part# 71040 | 2 |
82063 | Alcatel-Adixen,Precision Scientific,Varian-Agilent Shaft Seal, Viton, Part# 82063 | 4 |
84646 | Waved Washer, Alcatel-Adixen, Precision Scientific, Part# 84646 | 1 |
53040 | Alcatel-Adixen, Precision Scientific, Varian-Agilent Vane Spring, Part# 53040 | 8 |
65756FR | Alcatel-Adixen,Precision Scientific,Varian-Agilent 2nd Stage - GX Vane, Part# 65756FR | 2 |
65758FR | Alcatel-Adixen, Precision Scientific, Varian-Agilent Vane, 1st Stage - GX, Part# 65758FR | 2 |
82025 | O-ring, 29.3 x 3.6 mm - Viton, Part# 82025 | 4 |
82024 | O-ring, 12.37 x 2.62 mm - Viton, Part# 82024 | 1 |
82022 | O-ring, 17.12 x 2.62 mm - Viton, Part# 82022 | 3 |
82014 | O-ring, 34.1 x 3.6 mm - Viton, Part# 82014 | 1 |
82004 | O-ring, 5.7 x 1.9 mm - Viton, Part# 82004 | 2 |
82003 | O-ring, 7.2 x 1.9 mm - Viton, Part# 82003 | 1 |
79537 | O-ring, 7.5 x 1.5 mm - Viton, Part# 79537 | 1 |
52752 | Plug, Drain, Alcatel-Adixen, Precision Scientific, Varian-Agilent, Part# 52752 | 3 |
52655 | Discharge Valve, Galileo, A Series, Chemical Series, Pascal, D Series, DS Series, Part# 52655 | 4 |
52553 | Elastic Coupler, Alcatel-Adixen, Precision Scientific, Varian-Agilent, Part# 52553 | 1 |
52541 | Valve Spring, Alcatel - Adixen, Precision Scientific, Varian - Agilent, Part# 52541 | 4 |
320067 | O - ring, 63.09 x 3.53 mm - Viton, Part# 320067. | 1 |
73301 | Flat Washer, M6, Alcatel-Adixen, Precision Scientific, Part# 73301 | 4 |
73304 | Flat Washer, M5, Alcatel-Adixen, Precision Scientific, Part# 73304 | 2 |
73452 | Wave Washer, M4 -Alcatel-Adixen, Precision Scientific, Varian-Agilent Pascal, Chemical Series, DD Series, P/PX Series, PC/PCX Series, SD Series, CD Series, Part# 73452 | 4 |
65861 | Blade-Alcatel-Adixen, Varian-Agilent Pascal, Chemical Series, Part# 65861 | 1 |
65857 | Membrane-Alcatel-Adixen, Varian-Agilent Pascal, Chemical Series, Part# 65857 | 1 |
250010 | Alcatel-Adixen,Precision Scientific,Varian-Agilent Shouldering Ring, Coated, Part# 250010 | 1 |
65799 | Spring, Alcatel - Adixen, Precision Scientific, Varian - Agilent, Part# 65799 | 1 |
65798 | Anti-Suckback Device, Alcatel-Adixen, Precision Scientific, Part# 65798 | 1 |
65797 | Spring, Alcatel - Adixen, Precision Scientific, Varian - Agilent, Part# 65797 | 1 |
65795 | Case Gasket, Alcatel-Adixen, Precision Scientific, Varian-Agilent, Part# 65795 | 1 |
65794 | Felt Pad-Alcatel-Adixen, Precision Scientific Pascal, Chemical Series, Part# 65794 | 1 |
65792 | Sleeve-Alcatel-Adixen, Precision Scientific Pascal, Chemical Series, DD Series, Part# 65792 | 1 |
65789 | Sight Glass Gasket, Alcatel-Adixen, Precision Scientific, Part# 65789 | 1 |
65786 | Sight Glass, Alcatel-Adixen, Precision Scientific, Varian-Agilent, Part# 65786 | 1 |
65784 | Alcatel-Adixen,Precision Scientific,Varian-Agilent Sight Glass, Part# 65784 | 1 |
65617 | Spring, Alcatel - Adixen, Precision Scientific, Varian - Agilent Pascal, Chemical Series, DD Series, Part# 65617 | 1 |
79516 | O-ring, 66 x 2.5 mm - Viton, Part# 79516 | 1 |
79513 | O-ring, 90 x 2 mm - Viton, Part# 79513 | 4 |
79509 | O-ring, 28 x 3 mm - Viton, Part# 79509 | 1 |
79148 | O-ring, 165 x 3 mm - Viton, Part# 79148 | 1 |
73460 | Wave Washer, M6, Alcatel-Adixen, Precision Scientific, Varian-Agilent, Part# 73460. | 8 |
73454 | Wave Washer, M6, Alcatel-Adixen, Precision Scientific, Part# 73454 | 10 |
73453 | Wave Washer, M5, Alcatel-Adixen, Precision Scientific, Varian-Agilent, Part# 73453 | 1 |
