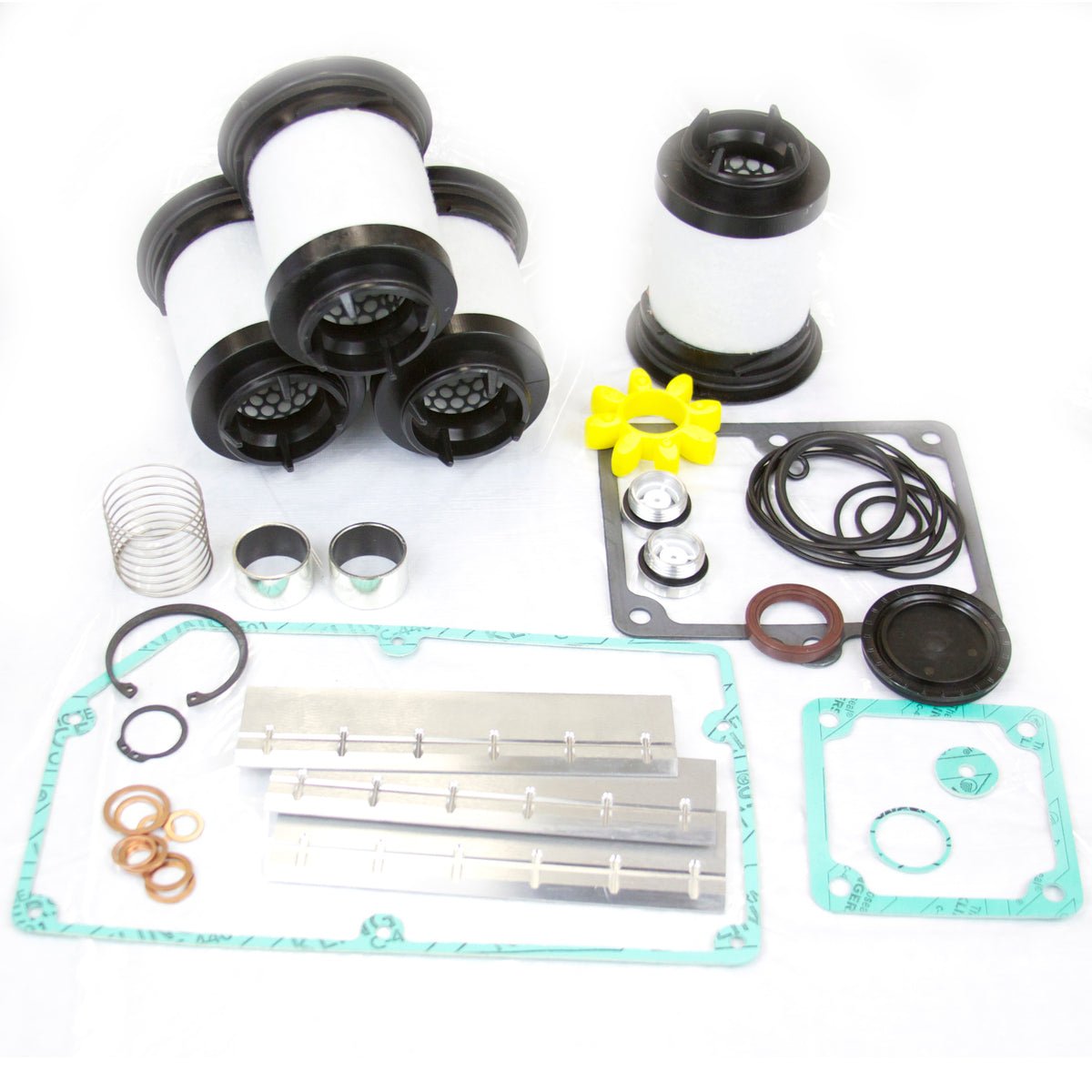

Major Rebuild Kit with Vanes 3226
Major Rebuild Kit with Vanes includes; exhaust filters & access panel O-rings & gaskets, O-rings, Vanes, bearings, couplings, sight glass & other components for major overhaul.
General product classifications
Brand | Rietschle |
Family | V-VC |
Pump models | VC200 |
Category | Repair Kits |
Subcategory | Major Kit |
Country of origin | US |
Manual page | RIETSCHLE-86 |
Part number alternatives | 23R-VC200-V |
PART NUMBER | DESCRIPTION | QUANTITY |
---|---|---|
731401 | Rietschle Exhaust filter for V VC pump, Part# 731401 | 4 |
510756 | Distance ring, Rietschle, Part# 510756 | 8 |
512551 | Oil Level Plate-Rietschle V-VCA-VCE, V-VC, Part# 512551 | 1 |
515839 | Inlet Screen, Stainless Steel, Rietschle V-VCA-VCE, V-VC, Part# 515839 | 1 |
520913 | Coupling, Buna, Rietschle, V-VCA-VCE, V-VC, Part# 520913 | 8 |
521638 | Vane - Aluminium Alloy, Rietschle, V - VC, Part# 521638 | 3 |
602020 | Ball Bearing, Single Row / Deep Groove, 6307, Rietschle, V-VC, Part# 602020 | 2 |
618005 | Lock Nut, Hex, Nylon, Rietschle, V-VCA-VCE, V-VC, Part# 618005 | 8 |
620007 | Flat Washer, Zinc, Rietschle, V-VCA-VCE, V-VC, Part# 620007 | 8 |
622003 | Retaining ring, External, 9.3 ID x 1.00 mm, Rietschle, Part# 622003 | 8 |
622019 | Retaining ring, External, 27.9 ID x 1.50 mm, Rietschle, V-VC, Part# 622019 | 2 |
622053 | Washer, Spring, Wave, Spring St, Rietschle, V-VC, Part# 622053 | 1 |
622721 | Washer, Nylon, fits 1/4 screw, Rietschle, V-VC, Part# 622721 | 4 |
725013 | Sight Glass Assembly, Rietschle, V-VCA-VCE, V-VC, Part# 725013 | 2 |
730503 | Intake Filter, Rietschle, V-VC, Part# 730503 | 1 |
300119 | Gasket Kit, Paper, Rietschle, V-VC, VC200, VC300, Part# 300119 | 1 |
314088 | Rietschle Oil Box Gasket with Mesh, Part# 314088 | 1 |
317020 | Rietschle Inlet Filter Mesh, Part# 317020 | 1 |
320229 | O-ring, 29.87 x 1.5 mm - Buna, Part# 320229 | 1 |
507973 | Round Gasket-Rietschle V-VC, Part# 507973 | 2 |
510581 | Ring Gasket, Rietschle, Part# 510581 | 9 |
513924 | Rectangular Gasket, Rietschle, V-VC, Part# 513924 | 1 |
520980 | Gasket, H-shaped, Rietschle, V-VC, Part# 520980 | 1 |
520981 | Inlet Filter Gasket, Mesh, Rietschle, V-VC, VC200, Part# 520981 | 1 |
521421 | Rectangular Gasket- Rietschle V-VC, Part# 521421 | 1 |
604511 | Shaft Seal, 32 x 52 x 7 mm, Rietschle, V-VC, VC200, VC300, Part# 604511 | 4 |
521420 | Trapezoid Gasket-Rietschle V-VC, Part# 521420 | 1 |
622552 | Nilos Ring Steel, 3.15" OD x 1.88" ID x 0.012"Th, Rietschle, V-VC, Part# 622552 | 2 |
704017 | ring Gasket, Copper-Rietschle V-VC, V-VCA-VCE, Part# 704017 | 6 |
704020 | ring Gasket, Copper, Rietschle, V-VCA-VCE, V-VC, Part# 704020 | 4 |
704021 | ring Gasket, Copper, Rietschle, V-VCA-VCE, V-VC, Part# 704021 | 1 |
704024 | ring Gasket, Rietschle, V-VC, Part# 704024 | 1 |
704039 | ring Gasket, Rietschle, V-VC, Part# 704039 | 1 |
704044 | Oil Cap Sealing ring Gasket-Rietschle V-VCA-VCE, V-VC, Part# 704044 | 1 |
706467 | Ring Sealing, Cover, Rietschle, V-VC, Part# 706467 | 1 |
02125117 | O-ring, 12.37 x 2.62 mm - Buna, Part# 2125117 | 1 |
