Major Maintenance Kit 80943200BM
Used on Kinney Rotary Piston KT500D

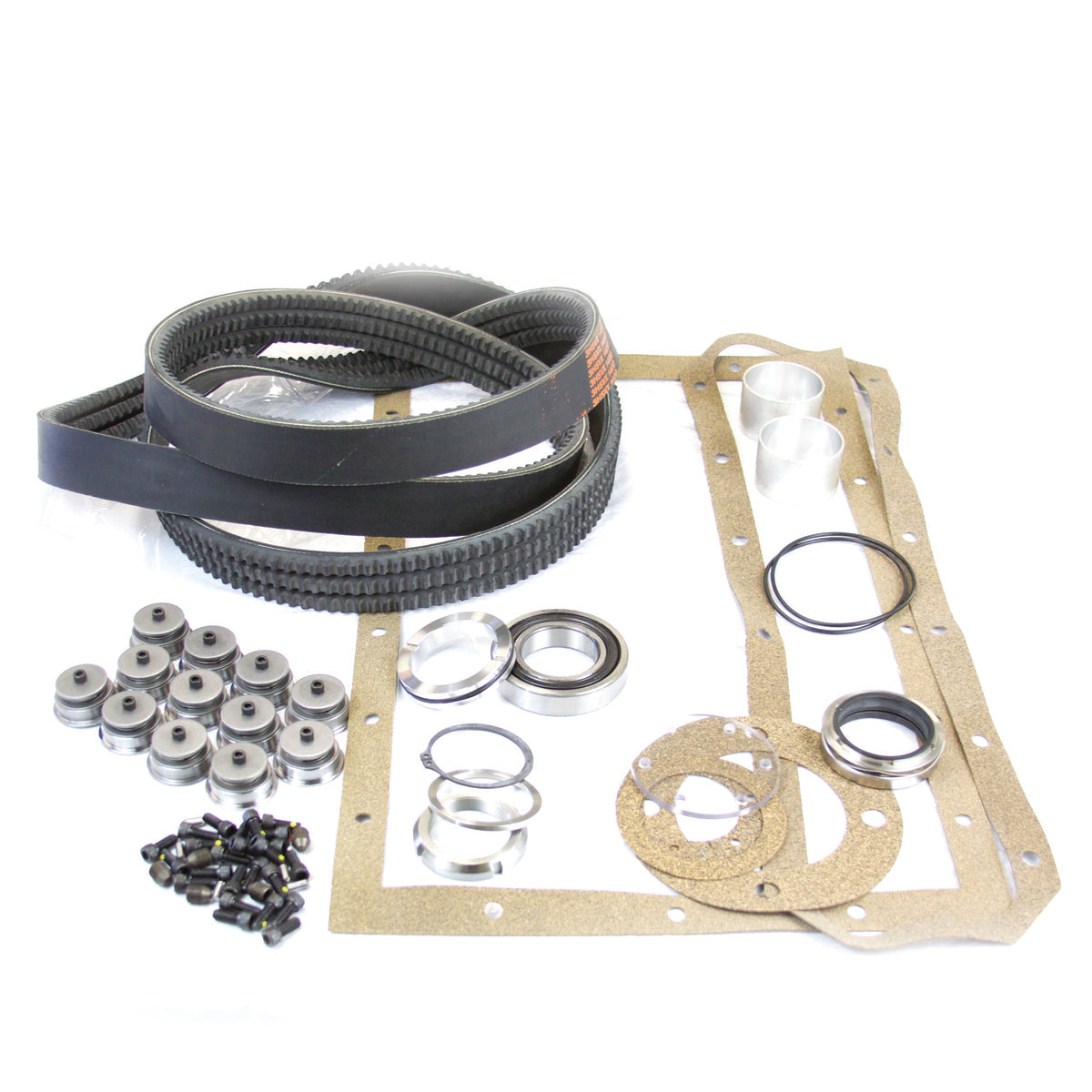

Major Maintenance Kit includes; discharge Valve, shaft seal, gaskets, O-rings, sight glass, bushings, bearings, and other components for a complete overhaul.
General product classifications
| Brand | Kinney |
| Family | Rotary Piston |
| Pump models | KT500D |
| Category | Repair Kits |
| Subcategory | Maintenance Kits |
| Country of origin | US |
| Manual page | KINNEY-62 |
| PART NUMBER | DESCRIPTION | QUANTITY |
|---|---|---|
| 804192 | Oil Sight Glass, Plexiglas, Kinney, Rotary Piston, Part# 804192 | 1 |
| 802505 | Set Screw, Kinney, Rotary Piston, KT850C, KT500C, Part# 802505 | 5 |
| 802158 | Ring SS, Backup, Kinney, Rotary Piston, Part# 802158 | 1 |
| 066161 | Discharge Valve Assembly | 8 |
| 065214 | Shaft Seal - Head Assembly (2 1⁄8), Kinney, Rotary Piston, Part# 065214 | 1 |
| 065108 | Shaft Seal Seat, Cast Iron (2 1⁄8), Kinney, Rotary Piston, KT500C, KT500D, Part# 065108 | 1 |
| 064008 | Retaining ring, External, Kinney, Rotary Piston, KT500C, KT500D, Part# 64008 | 1 |
| 054105 | Ball Bearing - 50 mm, Kinney, Rotary Piston, KT500C, KT500D, Part# 54105 | 1 |
| 054109 | Kinney Sleeve Bearing - 2 1/8, Part# 054109 | 2 |
| 054099 | Bearing Locknut, N-10, Kinney, Rotary Piston, KT500C, KT500D, Part# 54099 | 1 |
| 052469 | Cap Screw - Hex Head, Kinney, Rotary Piston, KT850C, KT500C, Part# 52469 | 24 |
| 051120 | V-Belt | 1 |
| 050245 | O-ring, 110.72 x 3.53 mm - Buna, Part# 050245 | 2 |
| 050227 | O-ring, 53.57 x 3.53 mm - Buna, Part# 050227 | 1 |
| 804193 | Sight Glass Gasket, Kinney, Rotary Piston, KT850C, KT500C, Part# 804193 | 1 |
| 807416 | Separator Cover Gasket, Kinney, Rotary Piston, KT500C, KT500D, Part# 807416 | 1 |
| 808474 | Valve Deck Cover Gasket, Kinney, Rotary Piston, KT500C, KT500D, Part# 808474 | 1 |
| 807554 | Gasket, Kinney, Rotary Piston, Part# 807554 | 1 |
| 807547 | Bottom Plate Gasket, Kinney, Rotary Piston, KT500D, Part# 807547 | 1 |
| 802694 | Center Wall Locking Pin, Kinney, Rotary Piston, Part# 802694 | 5 |
| 807415 | Cylinder/Separator Gasket, Kinney, Rotary Piston, KT500D, Part# 807415 | 1 |
