Major Maintenance Kit 80942100BM
Used on Kinney Rotary Piston KT150C

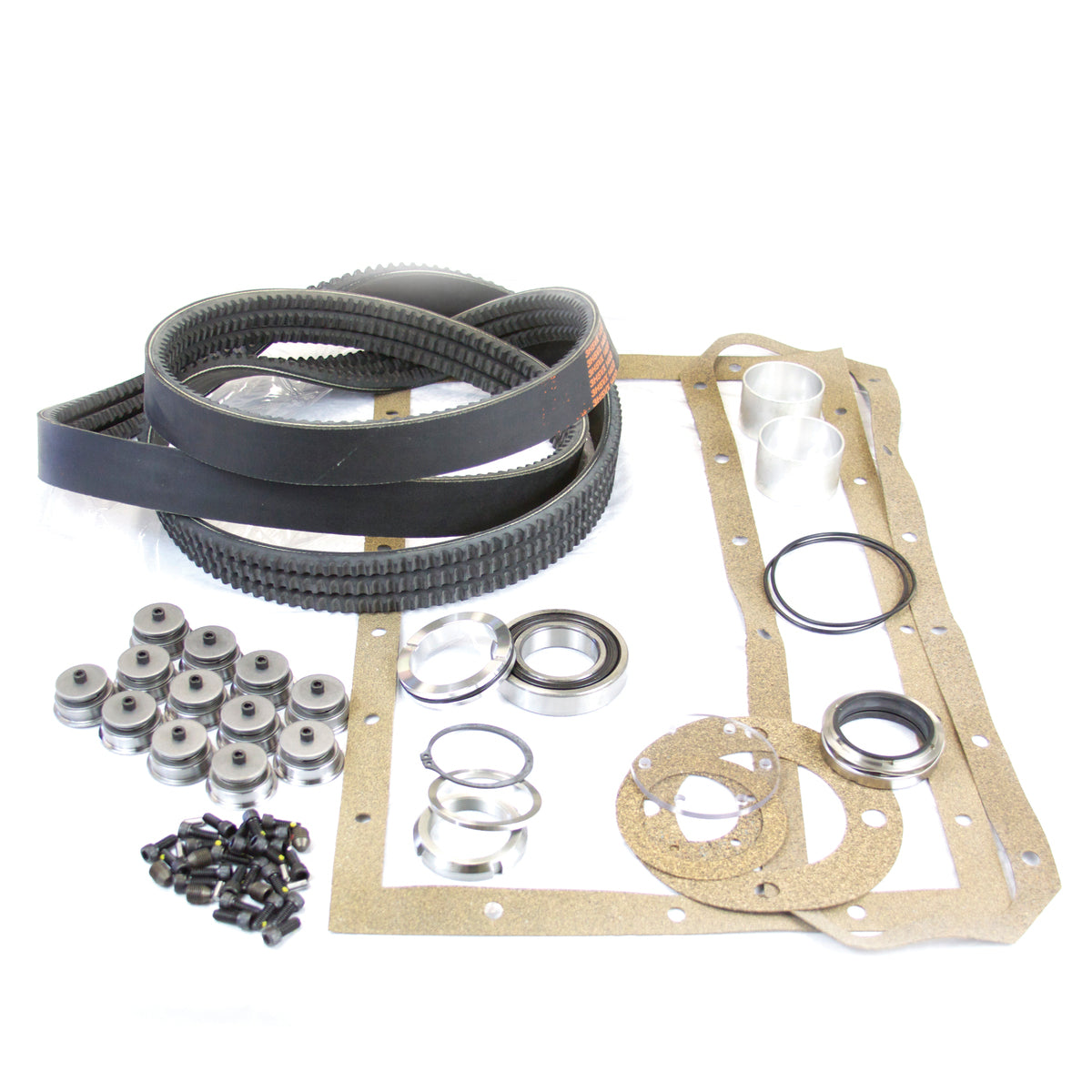

Major Maintenance Kit includes; discharge Valve, shaft seal, gaskets, O-rings, sight glass, bushings, bearings, and other components for a complete overhaul.
General product classifications
| Brand | Kinney |
| Family | Rotary Piston |
| Pump models | KT150C |
| Category | Repair Kits |
| Subcategory | Maintenance Kits |
| Country of origin | US |
| Manual page | KINNEY-62 |
| Part number alternatives | 23K-KT150C-PM |
| PART NUMBER | DESCRIPTION | QUANTITY |
|---|---|---|
| 807645 | Water Jacket Gasket, Kinney, Rotary Piston, KT150C, Part# 807645 | 1 |
| 807646 | Cylinder/Separator Gasket, Kinney, Rotary Piston, Part# 807646 | 1 |
| 808476 | Valve Deck Cover Gasket-Kinney Rotary Piston, Part# 808476 | 1 |
| 807644 | Separator Cover Gasket, Kinney, Rotary Piston, Part# 807644 | 1 |
| 804193 | Sight Glass Gasket, Kinney, Rotary Piston, KT850C, KT500C, Part# 804193 | 1 |
| 804192 | Oil Sight Glass, Plexiglas, Kinney, Rotary Piston, Part# 804192 | 1 |
| 050227 | O-ring, 53.57 x 3.53 mm - Buna, Part# 050227 | 1 |
| 050232 | O-ring, 69.4 x 3.53 mm - Buna, Part# 50232 | 2 |
| 051123 | V-Belt, Kinney, Rotary Piston, KT150C, KTC90, KTC112, Part# 51123 | 1 |
| 052469 | Cap Screw - Hex Head, Kinney, Rotary Piston, KT850C, KT500C, Part# 52469 | 12 |
| 054097 | Bearing Locknut, N-06, Kinney, Rotary Piston, Part# 54097 | 1 |
| 054104 | Ball Bearing - 30 mm, Kinney, Rotary Piston, Part# 54104 | 1 |
| 054111 | Kinney Bearing, Sleeve (Race) - 1 1/4, Part# 054111 | 2 |
| 064036 | Retaining ring, External, Kinney, Rotary Piston, Part# 64036 | 2 |
| 065100 | Shaft Seal Seat, Cast Iron (1 ¼) | 1 |
| 802506 | Centre Wall Locking Pin, Kinney, Rotary Piston, Part# 802506. | 3 |
| 802505 | Set Screw, Kinney, Rotary Piston, KT850C, KT500C, Part# 802505 | 3 |
| 801262 | Ring Bearing Backup, Kinney, Rotary Piston, Part# 801262 | 1 |
| 801237 | Ring SS, Backup, Kinney, Rotary Piston, Part# 801237 | 1 |
| 066161 | Discharge Valve Assembly | 4 |
| 065112 | Shaft Seal Seat, (1 ¼) | 1 |
