IKA Rotary Evaporator RV 10 Control V with Dry Ice Condenser

Price Each

Quantity

Price:

$ 0.00

Quantity:
Request Pricing

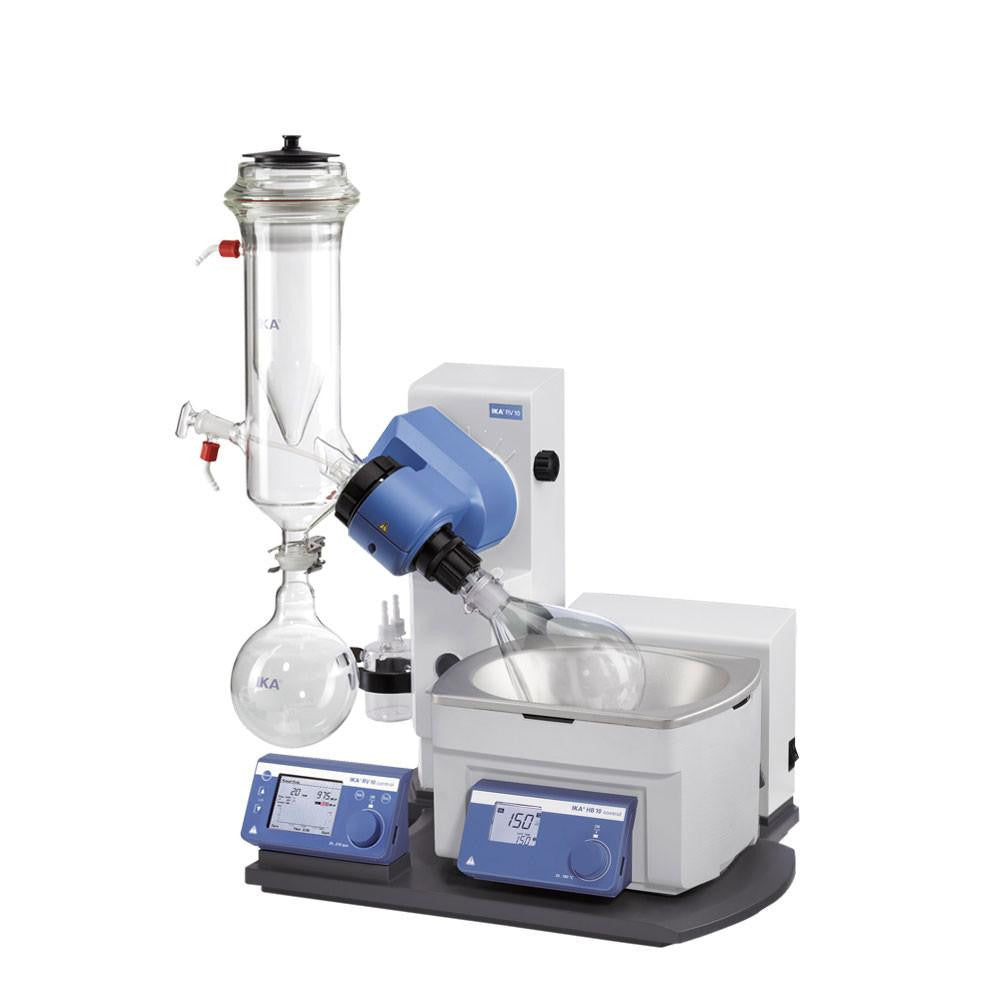

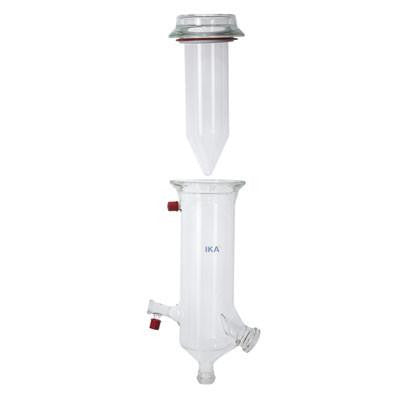

Rotary Evaporator RV 10 Control with Dry Ice Condenser



The newly developed product line from IKA® in ergonomic, compact design with innovative functions to improve operating results. Rotary evaporators with integrated heating bath HB 10 digital (3 litre) incl. dry ice condenser.

  • Heating bath with adjustable safety circuit, "stand alone" operation possible, pivoting safety hood as accessory
  • Safe and simple operation through ergonomically shaped operator unit in the front area
  • Motorized lift (stroke 140 mm) with "safety stop" function, if the power cuts out the evaporator piston is automatically lifted out of the heating bath.
  • Adjustable end position recognition to protect the glass from breaking
  • Speed range from 20 to 270 rpm
  • Smooth start from 100 rpm
  • Digital speed display
  • Moves right and left in interval operation for the drying process
  • Timer function for time lapse controls
  • Water-oil heating bath with integrated carry handles with safe handling
  • Heats up quickly because of optimized bath volumes
  • Cooling surface 1,200 cm²
  • Push-off mechanism to loosen tightly fitting pistons
  • Digital water - oil heating bath with integrated carry handles
  • Temperature control of the heating bath by a micro controller
  • Digital temperature display
  • Infrared interface for data transfer from the heating bath to the drive unit
  • RS 232 interface for PC remote operation with labworldsoft
  • Automatic operation with labworldsoft
  • Integrated vacuum controller with central display for ramp programming
  • Integrated solvent library, extendable by the client
  • Distillation specific parameters stored for standard distillation
  • Automatic transfer of measurements and distillation type with one key press
  • Volume controlled distillation processes programmable
  • Automatic boiling point recognition
  • Color graphic display for safe and comfortable device operation
  • Display of distillation curves
  • Multiple languages
  • Automatic ventilation after the end of the test
  • Cooling water switched off automatically after the end of the test
  • Integrated cooling water monitoring
  • Heating bath safety management: automatic heating bath monitoring with distillation stop in case of temperature errors
  • Heating bath switched off automatically after the end of the test
  • USB interface
  • Suitable for DIN EN 12697-3 (Asphalt test for hot asphalt)

Specifications

Type of cooling

vertical

Cooling surface

620 cm2

Motor principle

DC

Speed range

20 - 280 rpm

Reversible direction of rotation

yes

Lift

Motor

Stroke

140 mm

Heating temperature range

Room temp. - 180 °C

Heat output

1300 W

Heat control accuracy

1 ±K

Bath volume max.

3 l

Vacuum controller integrated

yes

Measurement accuracy +/-

2 mbar

Vacuum adjustment range

1050 - 1 mbar

Vacuum measurement range

1050 - 1 mbar

Timer

yes

Dimensions (W x H x D)

500 x 430 x 410 mm

Weight

21.5 kg

Permissible ambient temperature

5 - 40 °C

Permissible relative humidity

80 %

Protection class according to DIN EN 60529

IP 20

RS 232 interface

yes

Voltage

220 - 240 / 115 / 100 - 120 / 100 - 115 V

Frequency

50/60 Hz

Power input

1400 W
