IKA Overhead Stirrer EUROSTAR 200 digital- 3990001

Price Each

Quantity

Price:

$ 4,596.10

 $ 4,838.00
Quantity:
Add to Cart

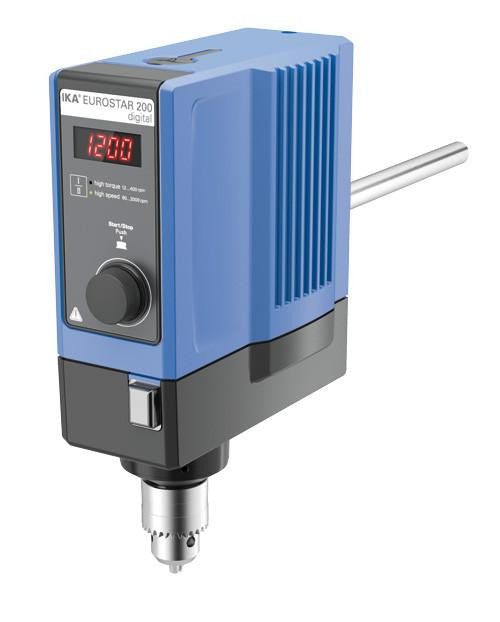

EUROSTAR 200 digital

Extremely powerful laboratory stirrer for highly viscous applications and intensive mixing for quantities up to 100 l (H2O). It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/6 – 2000 rpm (two speed ranges). Safety circuits installed ensures automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample.

  • Digital speed display
  • Infinitely adjustable speed
  • Push-through agitator shafts
  • Overload protection
  • Short-term overload operation
  • Slim casing
  • Quiet operation
  • Error code display

    Specifications

    Stirring quantity max. per stirring position (H2O)

    100 l

    Motor rating input

    130 W

    Motor rating output

    84 W

    Motor principle

    Brushless DC

    Speed display

    7 segment LED

    Speed range

    0/6 - 2000 rpm

    Reversible direction of rotation

    no

    Intermittent operation

    no

    Viscosity max.

    100000 mPas

    Output max. at stirring shaft

    84 W

    Permissible ON time

    100 %

    Torque max. at stirring shaft

    200 Ncm

    torque I max.

    200 Ncm

    torque II max.

    40 Ncm

    Speed range I (50 Hz)

    6 - 400 rpm

    Speed range II (50 Hz)

    30 - 2000 rpm

    Speed range I (60 Hz)

    6 - 400 rpm

    Speed range II (60 Hz)

    30 - 2000 rpm

    Speed control

    stepless

    Setting accuracy speed

    1 ±rpm

    Deviation of speed measurement n > 300rpm

    1 ±%

    Deviation of speed measurement n < 300rpm

    3 ±rpm

    Stirring element fastening

    chuck

    Temperature display

    no

    Plug-in coupling (Ø)

    10 mm

    Chuck range min. diameter

    0.5 mm

    Chuck range max. diameter

    10 mm

    Hollow shaft, inner diameter

    10.3 mm

    Hollow shaft (push-through - when stopped)

    yes

    Fastening on stand

    extension arm

    Extension arm diameter

    16 mm

    Extension arm length

    220 mm

    Torque display

    no

    Nominal torque

    2 Nm

    Timer

    no

    housing material

    alu-cast coating / thermoplastic polymer

    clean room qualified

    no

    explosion proofed

    no

    Dimensions (W x H x D)

    91 x 274 x 209 mm

    Weight

    4.6 kg

    Permissible ambient temperature

    5 - 40 °C

    Permissible relative humidity

    80 %

    Protection class according to DIN EN 60529

    IP 40

    RS 232 interface

    no

    USB interface

    no

    Analog output

    no

    Voltage

    230 / 100 - 115 / 100 V

    Frequency

    50/60 Hz

    Power input

    130 W



    EUROSTAR 200 digital
