Product Gallery IKA Magnetic Stirrer Big Squid wi/o heating - Chemtech Scientific IKA Magnetic Stirrer Big Squid wi/o heating - Chemtech Scientific IKA Magnetic Stirrer Big Squid wi/o heating - Chemtech Scientific IKA Magnetic Stirrer Big Squid wi/o heating - Chemtech Scientific IKA Magnetic Stirrer Big Squid wi/o heating - Chemtech Scientific

Last 5 Products Reviewed

IKA Magnetic Stirrer Big Squid wi/o heating

Price Each

Quantity

Price:

$ 0.00

Quantity:
Request Pricing

Big Squid

Choose Your Favorite Color Scheme:

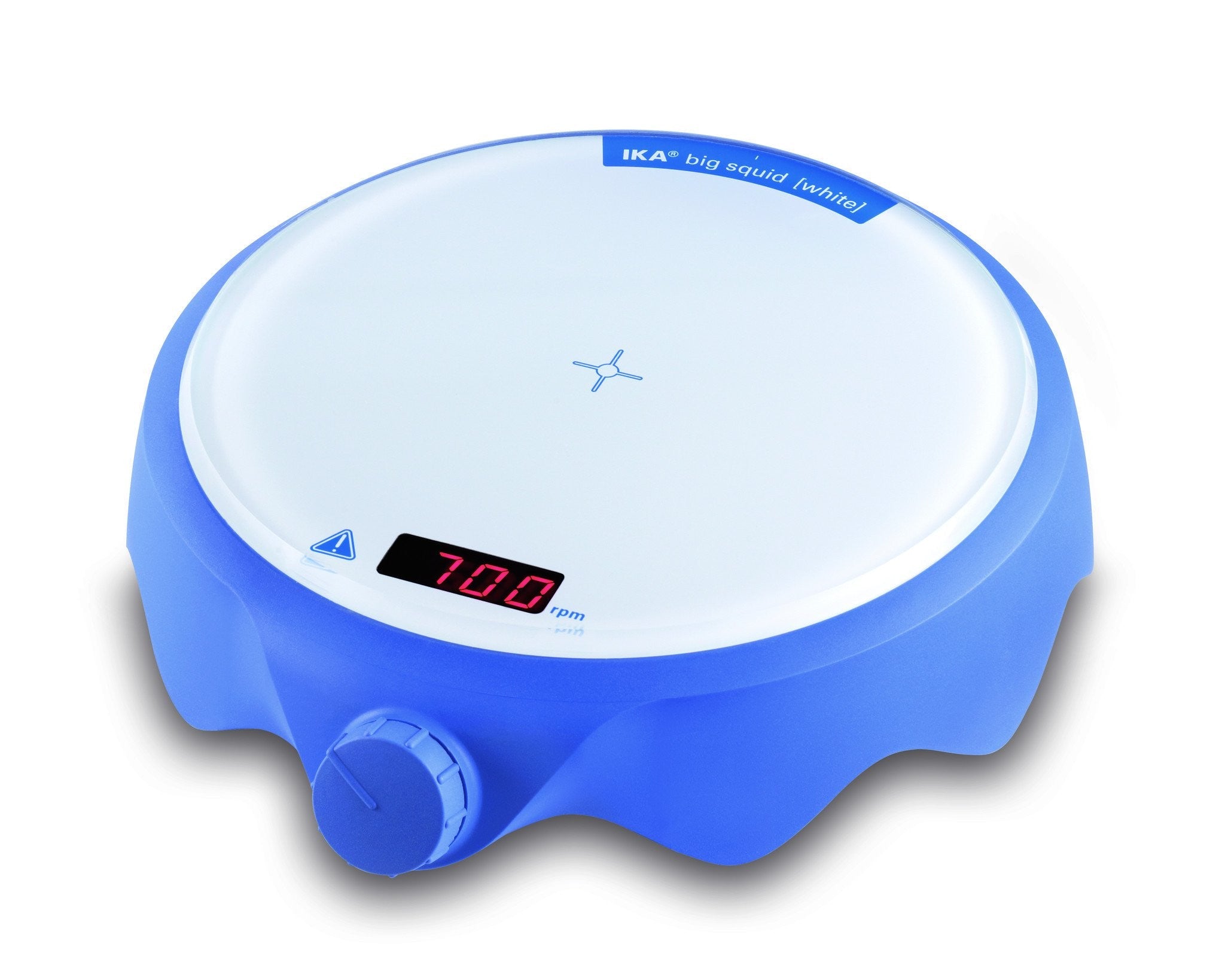

  • White

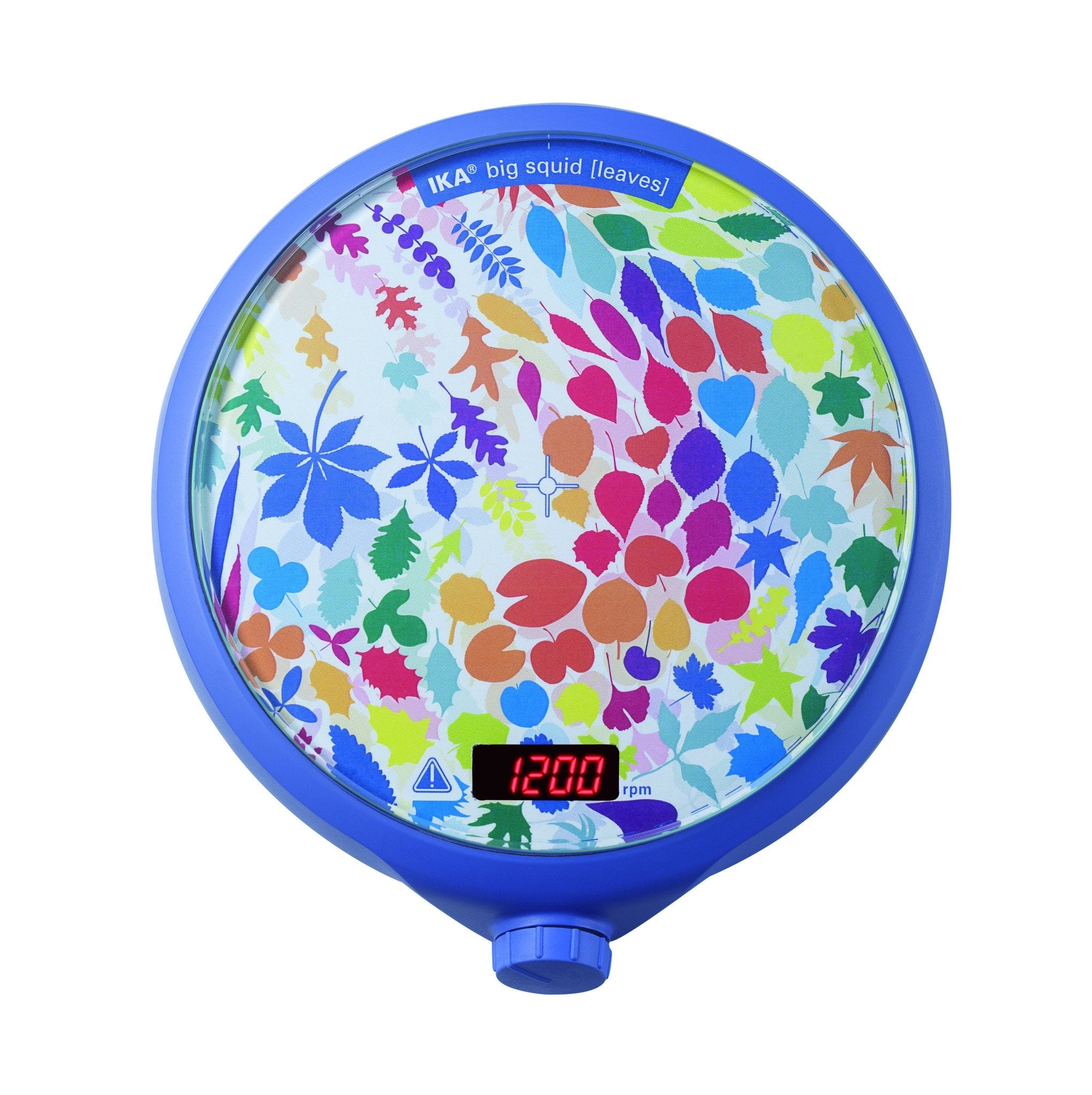

  • Leaves

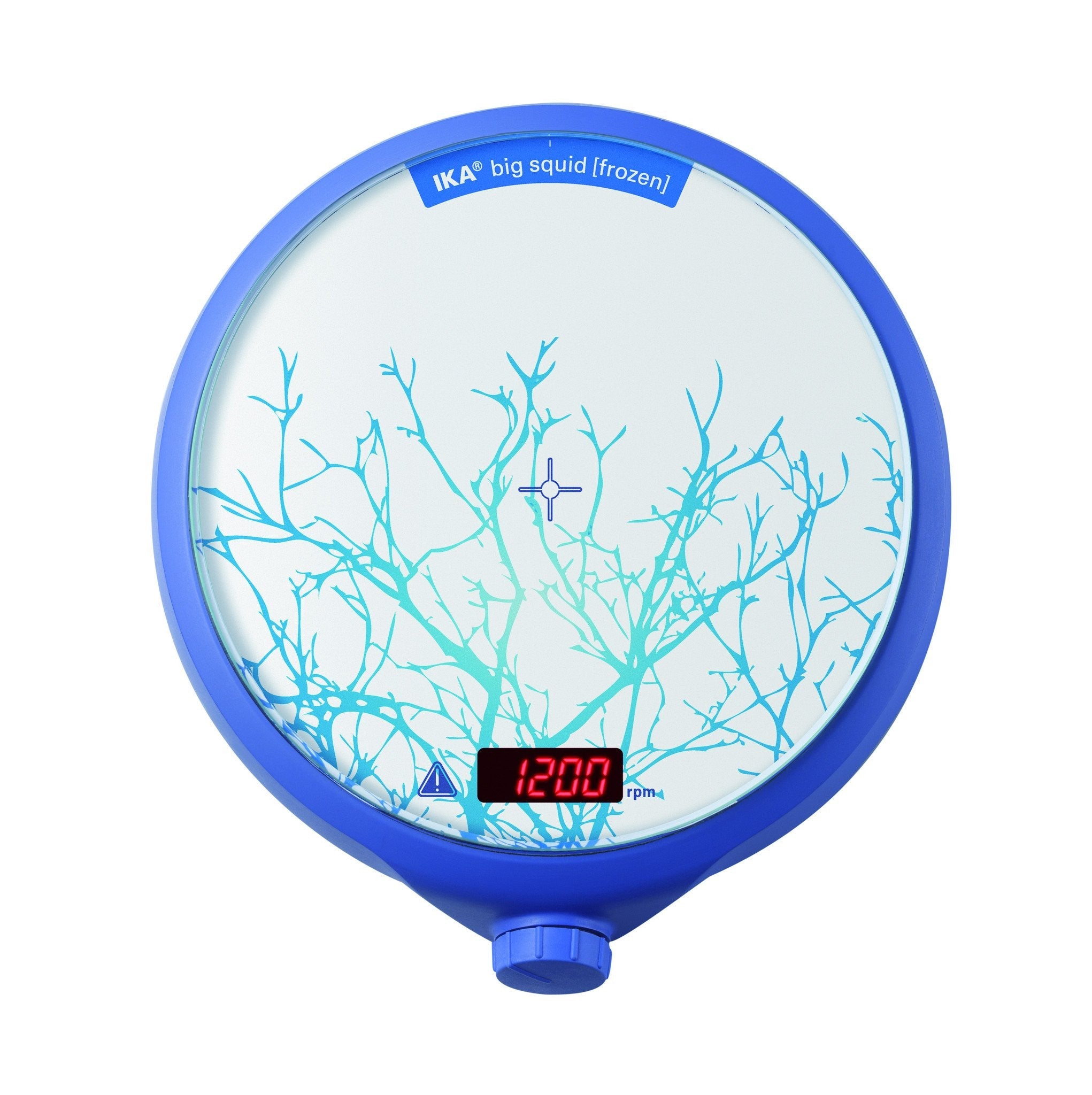

  • Frozen

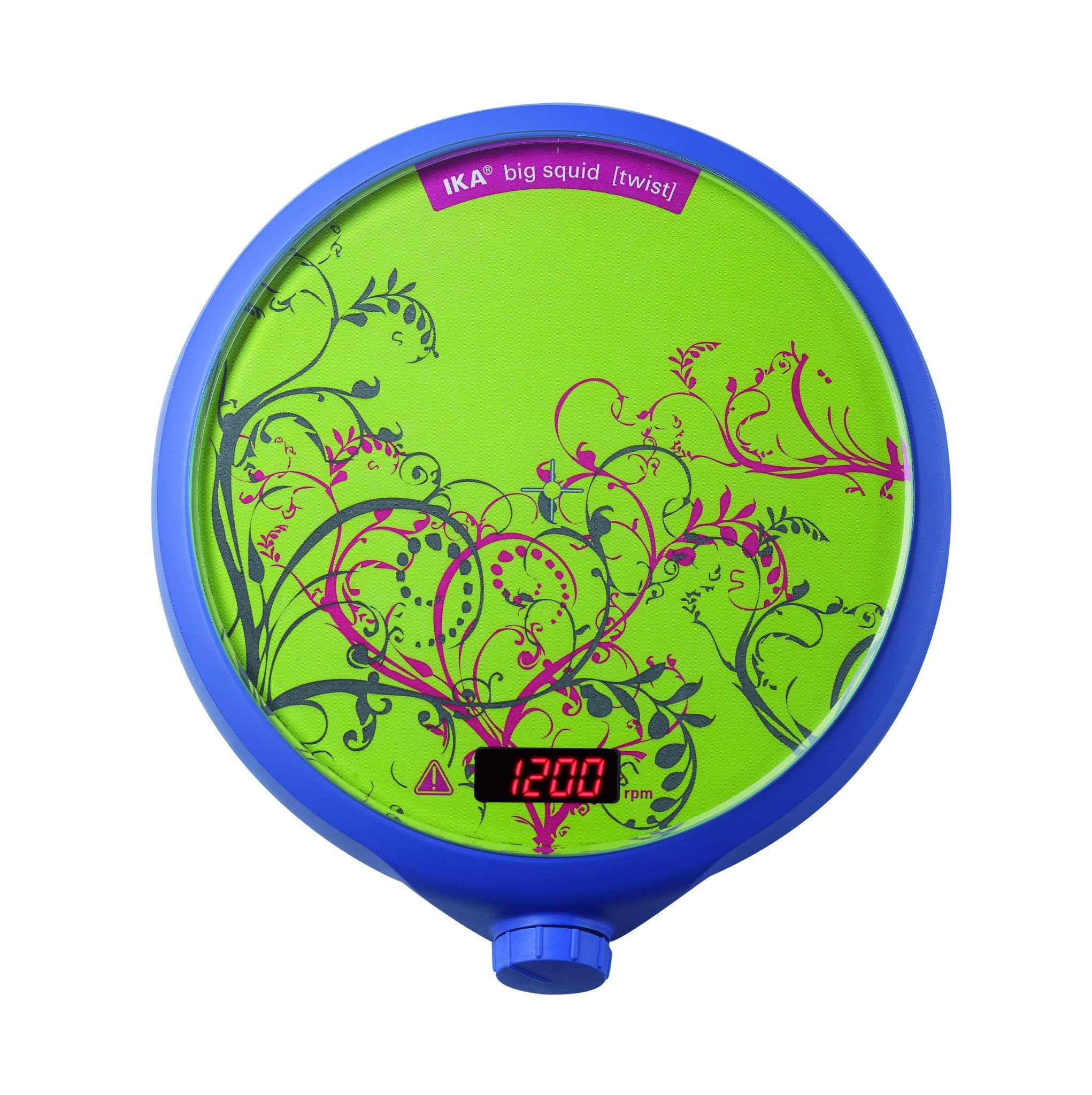

  • Twist
  • Hibiscus

The improved Magnetic stirrer w/o heating now in new design.
new: Digital speed display (LED)
new: Electronically controlled motor for more capacity
new: Higher speed range from 0 - 2.500 rpm

Outstanding chemical resistance due to glass top and synthetic bottom made of TPC-ET

Recyclable materials

 Product Overview                                                     Owner's Manual



    Specifications

    Number of stirring positions

    1

    Stirring quantity max. per stirring position (H2O)

    1.5 l

    Motor rating input

    3 W

    Motor rating output

    2 W

    Speed display

    LED

    Speed range

    0 - 2500 rpm

    Stirring bar length max.

    30 mm

    Speed control

    50 RPM Steps

    Set-up plate material

    glass

    Set-up plate dimensions

    Ø 160 mm

    Dimensions (W x H x D)

    185 x 45 x 205 mm

    Weight

    0.7 kg

    Permissible ambient temperature

    5 - 40 °C

    Permissible relative humidity

    80 %

    Protection class according to DIN EN 60529

    IP 54

    RS 232 interface

    no

    Analog output

    no

    Voltage

    100 - 240 V

    Frequency

    50/60 Hz

    Power input

    4 W

    DC Voltage

    12 V=

    Current consumption

    300 mA



    Big Squid

    Choose Your Favorite Color Scheme:

    • White
    • Leaves
    • Frozen
    • Twist
    • Hibiscus

    The improved Magnetic stirrer w/o heating now in new design.
    new: Digital speed display (LED)
    new: Electronically controlled motor for more capacity
    new: Higher speed range from 0 - 2.500 rpm

    Outstanding chemical resistance due to glass top and synthetic bottom made of TPC-ET

    Recyclable materials

     Product Overview                                                     Owner's Manual



      Specifications

      Number of stirring positions

      1

      Stirring quantity max. per stirring position (H2O)

      1.5 l

      Motor rating input

      3 W

      Motor rating output

      2 W

      Speed display

      LED

      Speed range

      0 - 2500 rpm

      Stirring bar length max.

      30 mm

      Speed control

      50 RPM Steps

      Set-up plate material

      glass

      Set-up plate dimensions

      Ø 160 mm

      Dimensions (W x H x D)

      185 x 45 x 205 mm

      Weight

      0.7 kg

      Permissible ambient temperature

      5 - 40 °C

      Permissible relative humidity

      80 %

      Protection class according to DIN EN 60529

      IP 54

      RS 232 interface

      no

      Analog output

      no

      Voltage

      100 - 240 V

      Frequency

      50/60 Hz

      Power input

      4 W

      DC Voltage

      12 V=

      Current consumption

      300 mA
