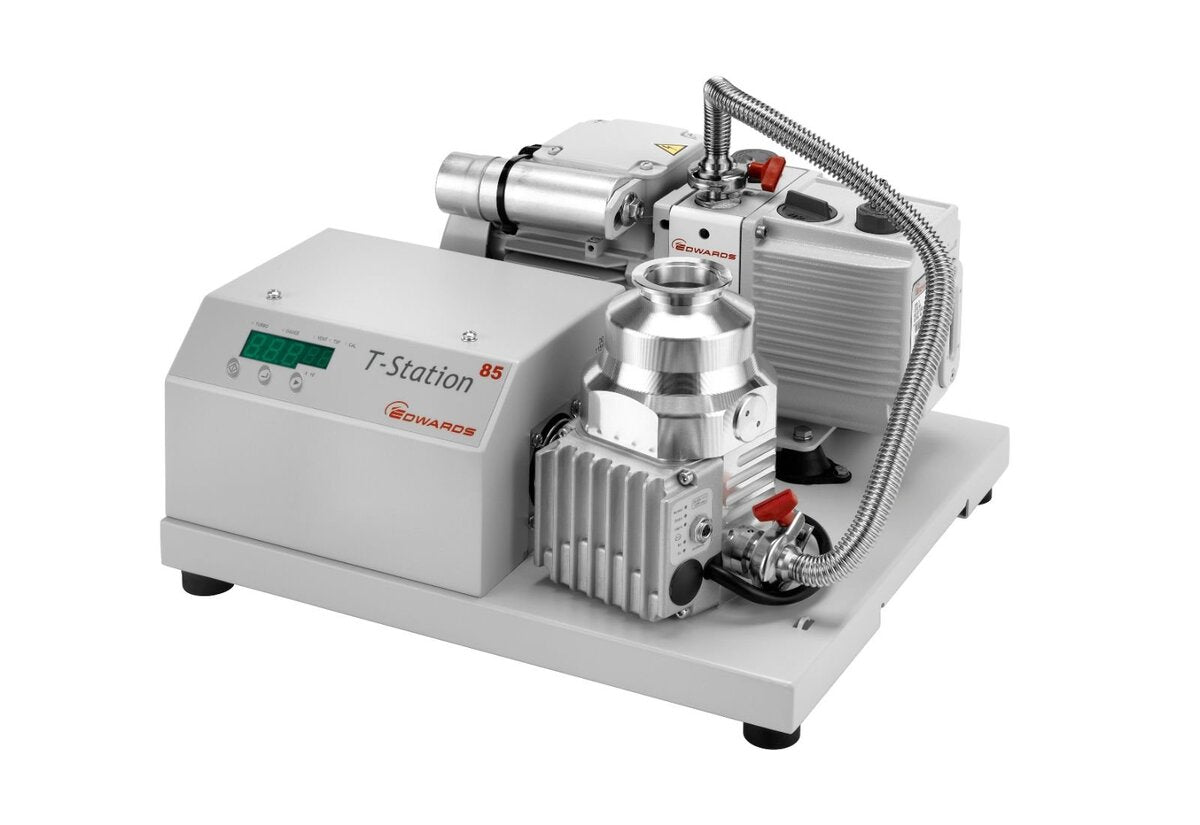

Edwards T-Station 85H Wet - NW40 100-120V TS85W1002
nEXT T-Station 85
With E2M1.5 oil sealed backing pump (1.6 m3/h)
The T-Station 85 is a low cost, compact turbomolecular pumping station that seamlessly combines an nEXT85H turbomolecular pump with either a dry diaphragm or oil sealed backing pump, and a simple controller, providing pumping speeds of 47 to 84 ls-1.
General Product Information
| Connection Vacuum Inlet Flange | DN 40 ISO-KF (NW40) |
| Weight | 0.021 |
| Connection vacuum outlet flange | 11 mm nozzle 3/8" BSPP (G) Female |
| Leak Rate | 1.000 × 10⁻⁷ |
| Power Supply Phase | 1-Ph |
| Supply Voltage | 1Ph 100-120V 50/60Hz |
| Dimension Length | 15.55 |
| IP Rating | IP20 |
| Supply Frequency | 50 Hz 60 Hz |
| Dimension Height | 10.63 |
| Dimension Width | 13.78 |
| Connection Power | IEC EN60320 C14 - Male (for C13 plug on mains cable) |
| Noise Level | 56.00 db(A) |
Environmental Conditions
| Temperature Ambient Operation Max | 313.15 |
| Temperature Ambient Operation Min. | 278.15 |
Performance Data
| Pressure Ultimate | 3.750 × 10⁻⁶ |
| Pumping Speed Nominal | 99.59 |
| Power at Atmosphere Short Term Max | 470.00 |
| Pumping Speed Ar Nominal | 93.23 |
| Compression Ratio He | 8.000 × 10⁶ |
| Compression Ratio H2 | 2.000 × 10⁵ |
| Pumping Speed Helium Nominal | 129.25 |
| Pumping Speed H2 Nominal | 103.83 |
Classification
| Product Pressure Range | High Vacuum: 1·10⁻³ - 1·10⁻⁷ mbar |
| High / Medium / Rough Vacuum Classification | High Vacuum Pump |
| Dry or Wet Pump | Wet pump |
Designed with our partners in mind, the T-Station combines a backing pump, turbomolecular pump, and a simple controller into one compact vacuum cart that can be deployed across your laboratory or R&D function with ease. The evolution of our T-Station range has seen a wider choice of both primary and turbomolecular pumping options introduced, further expanding the applications it can be used for and improving operational performance. All of our turbomolecular pumping stations are supplied fully assembled and ready to use straight from the box, making it an ideal choice if you’re looking for true turnkey functionality. There are 2 models in the range, with variants within each model. The entry level T-Station 85, and the higher capacity T-Station 300.
