Edwards RV8 Two Stage Rotary Vane Vacuum Pump – 6.0 CFM, 115/230V 1-Phase 50/60Hz (Factory Set to 115V for USA) (A65401906)
Edwards RV8 Two Stage Rotary Vane Vacuum Pump – 6.0 CFM, 115/230V 1-Phase 50/60Hz (Factory Set to 115V for USA) (A65401906)

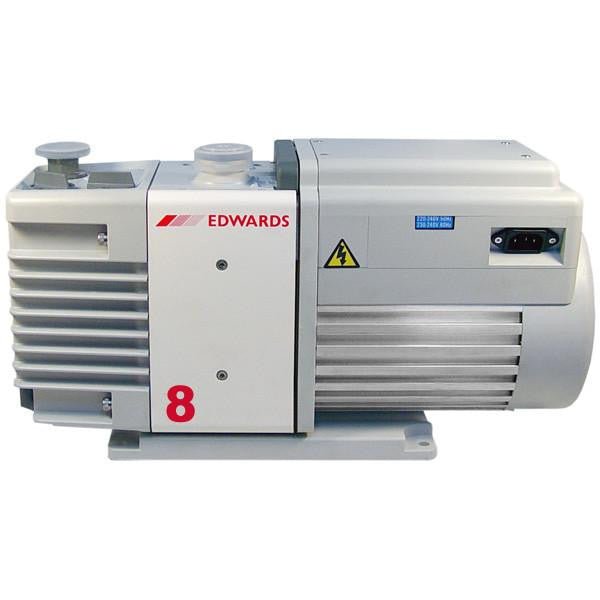

The Edwards RV8 (part number A65401906) is a versatile two-stage oil-sealed rotary vane vacuum pump from the popular RV series. This single-phase model is factory set to 115V for USA operation (switchable to 230V) with 50/60 Hz compatibility, making it an excellent plug-and-play solution for North American laboratories, universities, and light industrial facilities.
With a pumping speed of 6.0 CFM (10.2 m³/h at 60 Hz) and an excellent ultimate vacuum of 2 × 10⁻³ mbar (1.5 × 10⁻³ Torr), the RV8 delivers a strong combination of throughput, vapor handling, and quiet performance in a compact package.
The RV series is known for its reliability, high vapor tolerance, and long service intervals, making the RV8 a popular choice for general laboratory and light industrial vacuum applications.
Key Features and Benefits
- Two-stage rotary vane design for good ultimate vacuum and excellent vapor handling
- Pumping speed: 6.0 CFM (10.2 m³/h) at 60 Hz
- Quiet operation at 48 dB(A) at 50 Hz — ideal for laboratory environments
- Single-phase motor: 115/230V, 50/60 Hz, factory set to 115V for USA
- Adjustable gas ballast for improved handling of condensable vapors
- Advanced lubrication system for reliable long-term performance
- NW25 inlet flange for easy system integration
- Compact, rugged design suitable for benchtop or freestanding use
Technical Specifications
| Specification | Value |
|---|---|
| Pumping Speed (60 Hz) | 6.0 CFM / 10.2 m³/h |
| Pumping Speed (50 Hz) | 5.0 CFM / 8.5 m³/h |
| Ultimate Vacuum (without gas ballast) | 2 × 10⁻³ mbar / 1.5 × 10⁻³ Torr |
| Motor Power | 0.55 kW |
| Voltage / Frequency | 115/230V, 1-phase, 50/60 Hz (factory set to 115V) |
| Noise Level | 48 dB(A) at 50 Hz |
| Inlet / Outlet Flange | NW25 (KF25) |
| Max Water Vapor Pumping Rate | Up to 260 g/h |
| Oil Type (supplied) | Ultragrade 19 |
| Oil Capacity (min / max) | 0.6 / 1.0 liters |
| Weight | Approx. 28 kg / 62 lbs |
| Operating Temperature Range | 12 – 40°C |
Why Choose the Edwards RV8? The RV8 strikes an excellent balance between pumping speed and compactness. It offers higher throughput than the RV5 while remaining relatively quiet and easy to use. The A65401906 version is specifically configured for convenient 115V USA operation.
Applications
- Laboratory vacuum systems
- Mass spectrometry and analytical instruments
- Vacuum drying and degassing
- Vacuum ovens and freeze dryers
- Refrigeration and air conditioning service
- Light industrial processes
- General roughing and backing pump duties
What's Included
- Edwards RV8 Rotary Vane Vacuum Pump (A65401906)
- Ultragrade 19 vacuum pump oil (initial charge)
- NW25 centering ring and O-ring
Note: For corrosive or aggressive vapor applications, consider the PFPE-prepared RV8F variant.
The Edwards RV8 two-stage rotary vane vacuum pump (A65401906) delivers reliable performance, excellent vapor handling, and quiet operation for laboratory and light industrial vacuum needs.
