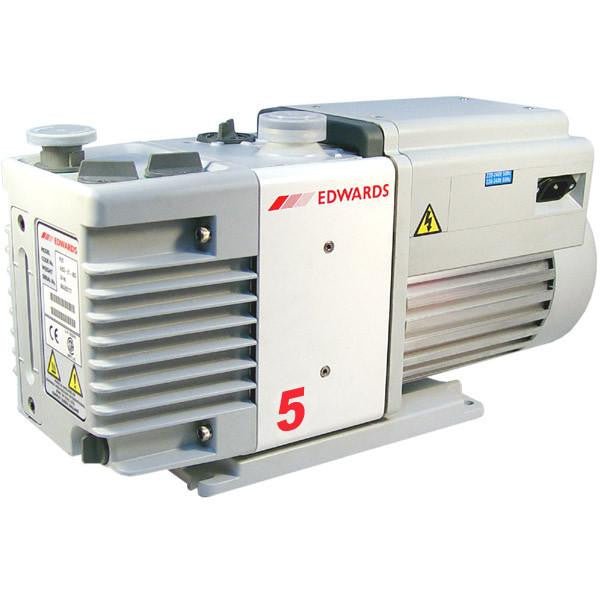

Edwards RV5F Two Stage Rotary Vane Vacuum Pump – 4.1 CFM, 115/230V 1-Phase 50/60Hz (Factory Set to 115V for USA), PFPE Prepared (A65309906)
The Edwards RV5F (part number A65309906) is a compact two-stage oil-sealed rotary vane vacuum pump from the RV series, specially PFPE prepared (F / FX version) for safe use with corrosive, aggressive, or reactive vapors and chemicals. This single-phase model is factory set to 115V for USA operation (switchable to 230V) with 50/60 Hz compatibility, making it a convenient plug-and-play solution for North American laboratories, universities, and light industrial facilities.
With a pumping speed of 4.1 CFM (6.9 m³/h at 60 Hz) and an excellent ultimate vacuum of 2 × 10⁻³ mbar (1.5 × 10⁻³ Torr), the RV5F provides reliable performance, high vapor tolerance, and quiet operation in a small footprint. The PFPE preparation allows the use of inert PFPE oils (such as Fomblin® or Krytox®), offering superior chemical resistance compared to standard hydrocarbon oil versions.
Key Features and Benefits
- Two-stage rotary vane design for good ultimate vacuum and excellent vapor handling
-
PFPE prepared (F / FX version) — ideal for corrosive and aggressive chemical vapors
- Pumping speed: 4.1 CFM (6.9 m³/h) at 60 Hz
- Quiet operation at 48 dB(A) at 50 Hz — perfect for benchtop laboratory use
- Single-phase motor: 115/230V, 50/60 Hz, factory set to 115V for USA
- Adjustable gas ballast for improved handling of condensable vapors
- Advanced lubrication system for reliable long-term performance
- NW25 inlet flange for easy system integration
- Compact, rugged design suitable for benchtop or freestanding installation
Technical Specifications
| Specification |
Value |
| Pumping Speed (60 Hz) |
4.1 CFM / 6.9 m³/h |
| Pumping Speed (50 Hz) |
3.4 CFM / 5.8 m³/h |
| Ultimate Vacuum (without gas ballast) |
2 × 10⁻³ mbar / 1.5 × 10⁻³ Torr |
| Motor Power |
0.45 – 0.55 kW |
| Voltage / Frequency |
115/230V, 1-phase, 50/60 Hz (factory set to 115V) |
| Noise Level |
48 dB(A) at 50 Hz |
| Inlet / Outlet Flange |
NW25 (KF25) |
| Max Water Vapor Pumping Rate |
Up to 220 g/h |
| Oil Type (for F version) |
PFPE (Fomblin® or Krytox® – ordered separately) |
| Oil Capacity (min / max) |
0.42 / 0.7 liters |
| Weight |
Approx. 25 kg / 55 lbs |
| Operating Temperature Range |
12 – 40°C |
Why Choose the Edwards RV5F? The RV series is well-known for its versatility, high vapor tolerance, and reliability. The F (PFPE-prepared) variant dramatically improves chemical resistance, making it the preferred choice for aggressive vapor applications while maintaining the quiet, compact performance that RV pumps are famous for.
Applications
- Chemical and pharmaceutical vacuum processes
- Aggressive vapor handling
- Laboratory vacuum systems
- Vacuum drying and degassing
- Mass spectrometry and analytical instruments
- Small vacuum ovens and light industrial use
What's Included
- Edwards RV5F Rotary Vane Vacuum Pump (A65309906)
- Initial fill of standard oil (for testing/break-in)
- NW25 centering ring and O-ring
Important Notes:
-
PFPE oil (Fomblin® Y VAC 06/6 or equivalent) is not supplied and must be ordered separately for corrosive service.
- Power cord / mains cable is not included.
The Edwards RV5F two-stage rotary vane vacuum pump (PFPE prepared) delivers compact size, strong chemical resistance, quiet operation, and reliable performance for demanding laboratory and light industrial vacuum applications.
