Edwards RV3 Two Stage Rotary Vane Vacuum Pump – 2.6 CFM, 115/230V 1-Phase 50/60Hz (Factory Set to 115V for USA) (A65201906)
Edwards RV3 Two Stage Rotary Vane Vacuum Pump – 2.6 CFM, 115/230V 1-Phase 50/60Hz (Factory Set to 115V for USA) (A65201906)

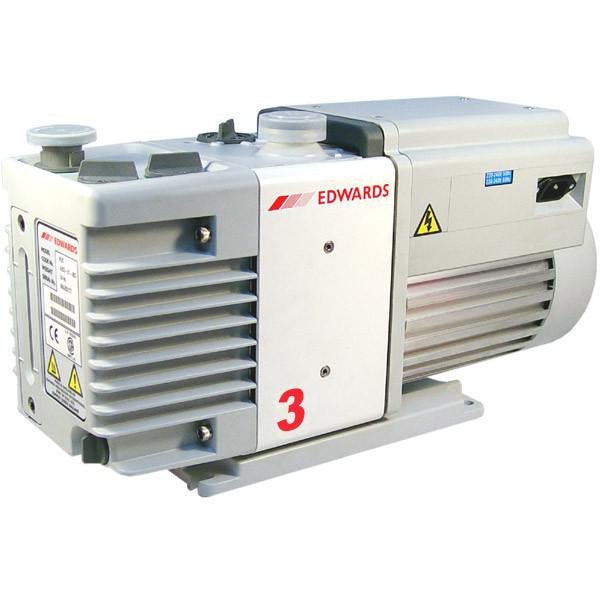

The Edwards RV3 (part number A65201906) is a compact two-stage oil-sealed rotary vane vacuum pump from the popular RV series. This single-phase model is factory set to 115V for USA operation (switchable to 230V) with 50/60 Hz compatibility, making it an excellent plug-and-play choice for North American laboratories, universities, and light industrial applications.
With a pumping speed of 2.6 CFM (3.9 m³/h at 60 Hz) and an excellent ultimate vacuum of 2 × 10⁻³ mbar (1.5 × 10⁻³ Torr), the RV3 delivers reliable performance, high vapor tolerance, and very quiet operation in a small, benchtop-friendly package.
The RV series is known for its versatility, excellent vapor handling capability, and long-term reliability, making the RV3 ideal for a wide range of laboratory vacuum needs.
Key Features and Benefits
- Two-stage rotary vane design for good ultimate vacuum and high vapor handling
- Pumping speed: 2.6 CFM (3.9 m³/h) at 60 Hz
- Very quiet operation at 48 dB(A) at 50 Hz — perfect for benchtop lab environments
- Single-phase motor: 115/230V, 50/60 Hz, factory set to 115V for USA
- Adjustable gas ballast for improved handling of condensable vapors
- Advanced lubrication system for reliable long-term performance
- NW25 inlet flange for easy system integration
- Compact and lightweight design suitable for benchtop use
Technical Specifications
| Specification | Value |
|---|---|
| Pumping Speed (60 Hz) | 2.6 CFM / 3.9 m³/h |
| Pumping Speed (50 Hz) | 2.3 CFM / 3.3 m³/h |
| Ultimate Vacuum (without gas ballast) | 2 × 10⁻³ mbar / 1.5 × 10⁻³ Torr |
| Motor Power | 250 / 300 W (approx. 0.45 / 0.55 kW) |
| Voltage / Frequency | 115/230V, 1-phase, 50/60 Hz (factory set to 115V) |
| Noise Level | 48 dB(A) at 50 Hz |
| Inlet / Outlet Flange | NW25 (KF25) |
| Max Water Vapor Pumping Rate | Up to 220 g/h |
| Oil Type (supplied) | Ultragrade 19 |
| Oil Capacity (min / max) | 0.42 / 0.7 liters |
| Weight | Approx. 25 kg / 55 lbs |
| Operating Temperature Range | 12 – 40°C |
Why Choose the Edwards RV3? The RV series stands out for its excellent balance of size, performance, and reliability. The A65201906 version is specifically configured for easy 115V USA operation. It is a great choice for users needing a compact, quiet, and versatile vacuum pump for general laboratory work.
Applications
- Laboratory vacuum systems
- Mass spectrometry and analytical instruments
- Vacuum drying and degassing
- Small vacuum ovens
- Leak detection
- General roughing and backing pump duties
What's Included
- Edwards RV3 Rotary Vane Vacuum Pump (A65201906)
- Ultragrade 19 vacuum pump oil (initial charge)
- NW25 centering ring and O-ring
Note: Power cord / mains cable is not included. For corrosive or aggressive vapor applications, consider the PFPE-prepared RV3F variant (A65209906).
The Edwards RV3 two-stage rotary vane vacuum pump (A65201906) delivers compact size, quiet operation, excellent vapor handling, and reliable performance for everyday laboratory vacuum needs.
