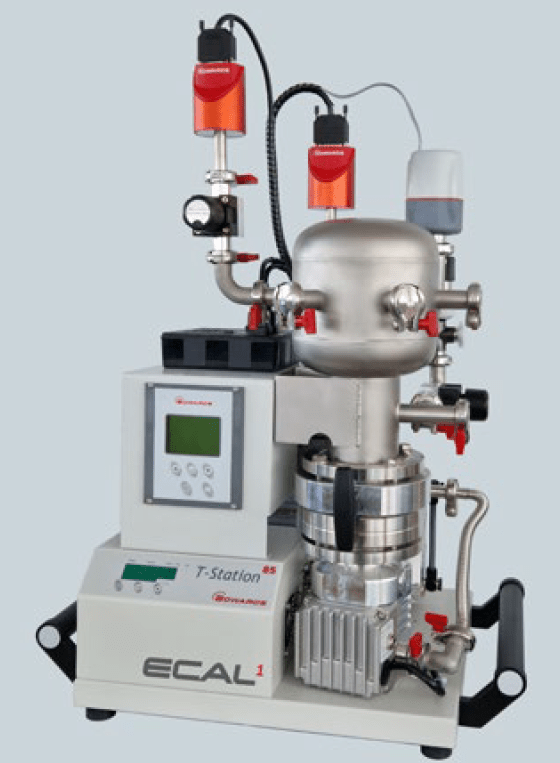

Edwards ECAL1 Calibration System NZA638000
Calibration System ECAL1 is a fully automatic pumping system based on the Edwards T-Station 85H. A vacuum chamber equipped with two reference gauges is attached.
| TECHNICAL DATA |
| Units Standard calibration system |
| Calibration pressure range mbar between 1000 to 10-4 * |
| Ultimate vacuum mbar < 5 x 10-8 ** |
| Ports for calibration vacuum chamber 3x NW16 for calibration gauges / 1x NW16 for gas admit |
| Type of protection (to IEC34-5: 1981) IP 20 |
| Ambient operating temperature range °C 5 to 40 |
| Ambient storage temperature range °/°C -30 to 70 |
| Maximum ambient operating humidity °C max. 90% RH non-condensing at 40 |
| Maximum operating altitude m max. 2000 |
| Dimensions mm 527(W) x 690 (H) x 375 (D) |
| Mass kg 40 |
| Mains connection m EU Schuko VDE / 10A (2m) / UK BS1363/ 13A (2 m) / JAPAN Plug NEMA |
| 5-15P / 15A (2m) / US plug NEMA 5-15P / 15A (2m) |
| * depending on the number and measuring range of the reference pressure gauges |
|
** for clean, dry and empty chamber The reference pressure gauges are connected and controlled via a TIC instrument controller. The TIC instrument controller is equipped with an intuitive easy-to-use graphical interface via a touch |
