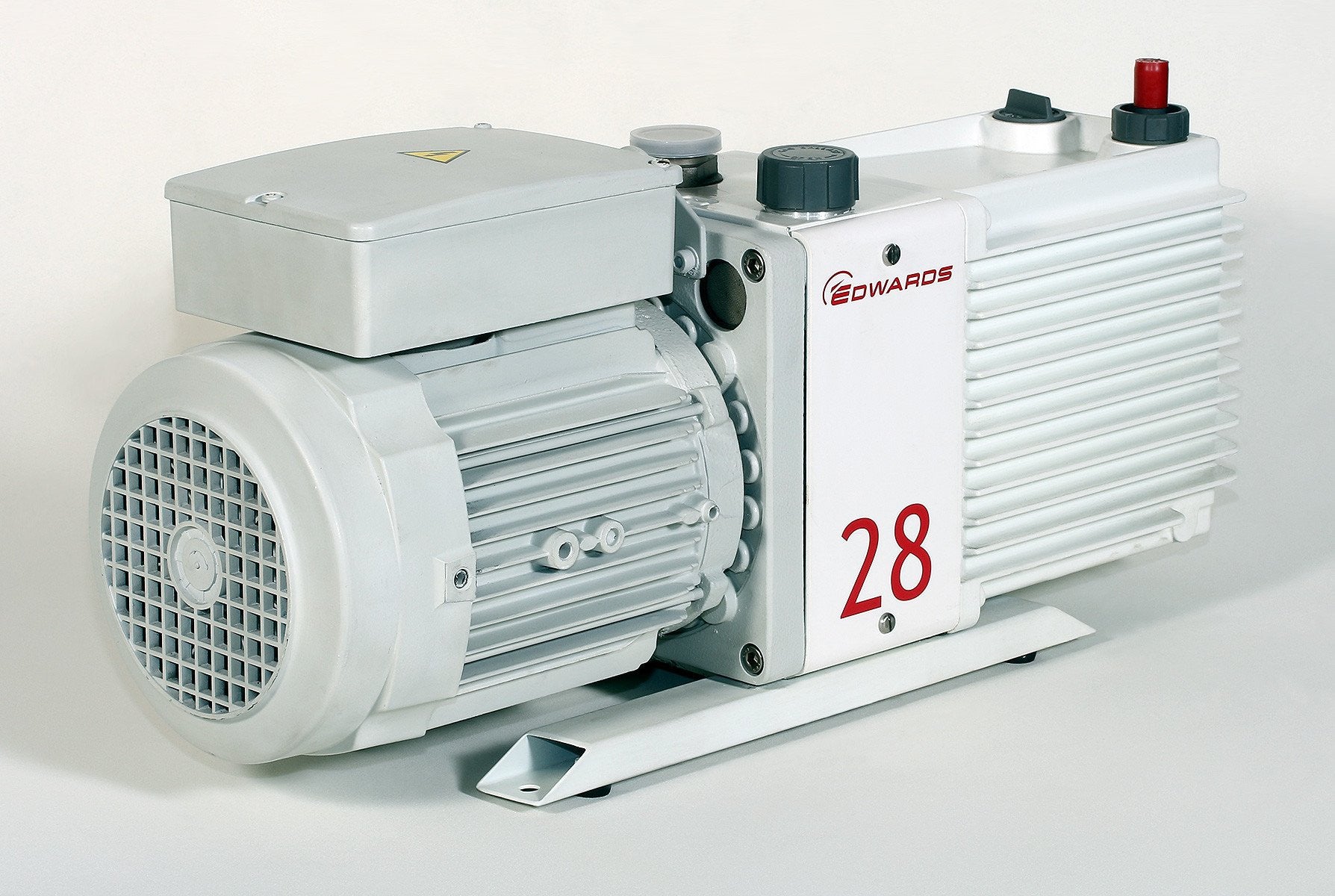

Edwards E2M28 Vacuum Pump, 115/200-230 V, 1-ph, 50/60 Hz with IEC60320 connector fitted A37317984

Price Each

Quantity

Price:

$ 5,892.25

 $ 8,653.00
Quantity:
Add to Cart



Currently in stock

Edwards E2M28 Vacuum Pump, 115/200-230 V, 1-ph, 50/60 Hz with IEC60320 connector fitted A37317984

The Edwards EM range of oil-sealed rotary pumps - renowned for their high ultimate vacuum, rapid pumping speed, quiet operation and ability to handle vapour - have become the industry standard for laboratory and light industrial applications.
The E1M18 and E2M18 pumps are direct drive, sliding vane pumps. The pump is oil sealed and designed for reliable, long-term operation. The pump is a freestanding unit with the drive provided through a flexible coupling by either a single-phase or three-phase (four-pole) motor.

Supplied with: Ultragrade 19 oil, NW25 O-ring and centering ring.

Technical Data

Displacement (swept volume)
50 Hz 32.2 m3h-1 / 19 ft3min-1
60 Hz 38.9 m3h-1 / 22.3 ft3min-1
Speed (Pneurop 6602)
50 Hz 27.5 m3h-1 / 16.2 ft3min-1
60Hz 33.0 m3h-1 / 19.5 ft3min-1
Ultimate vacuum (total pressure)
without gas ballast 1 x 10-3 mbar / 7.5 x 10-4 Torr
with gas ballast 1.5 x 10-2 mbar / 1.1 x 10-2 Torr
with Fomblin® 1 x 10-2 mbar / 7.5 x 10-3 Torr
Inlet connection NW25 flange
Outlet connection** Nozzle 15 mm external Ø removable from 3/4 in BSP tapped hole
Max allowed pressure at outlet 0.5 bar gauge / 7 psig
Max inlet pressure for water vapour 30 mbar / 23 Torr
Max water vapour pumping rate 0.7 kg h-1
Operating temperature range 13 – 40 °C
Nominal rotation speed 1440 / 1720 rpm
Motor power 50 Hz 0.75 kW
Motor power 60 Hz 0.90 kW
Power Connector 1-ph* IEC EN60320 C19
Weight 44 kg / 97 lbs
Noise 57 dB(A) @ 50 Hz
Oil capacity - max 1.5 litre
Oil capacity - min 1.2 litre
Recommended oil (supplied) Ultragrade 19
