Product Gallery IKA Rotary Evaporator RV 8 with Dry Ice Condensor - Chemtech Scientific

Accepted at Checkout

Last 5 Products Reviewed

IKA Rotary Evaporator RV 8 with Dry Ice Condensor

Price Each

Quantity

Price:

$ 4,370.00

Quantity:
Add to Cart

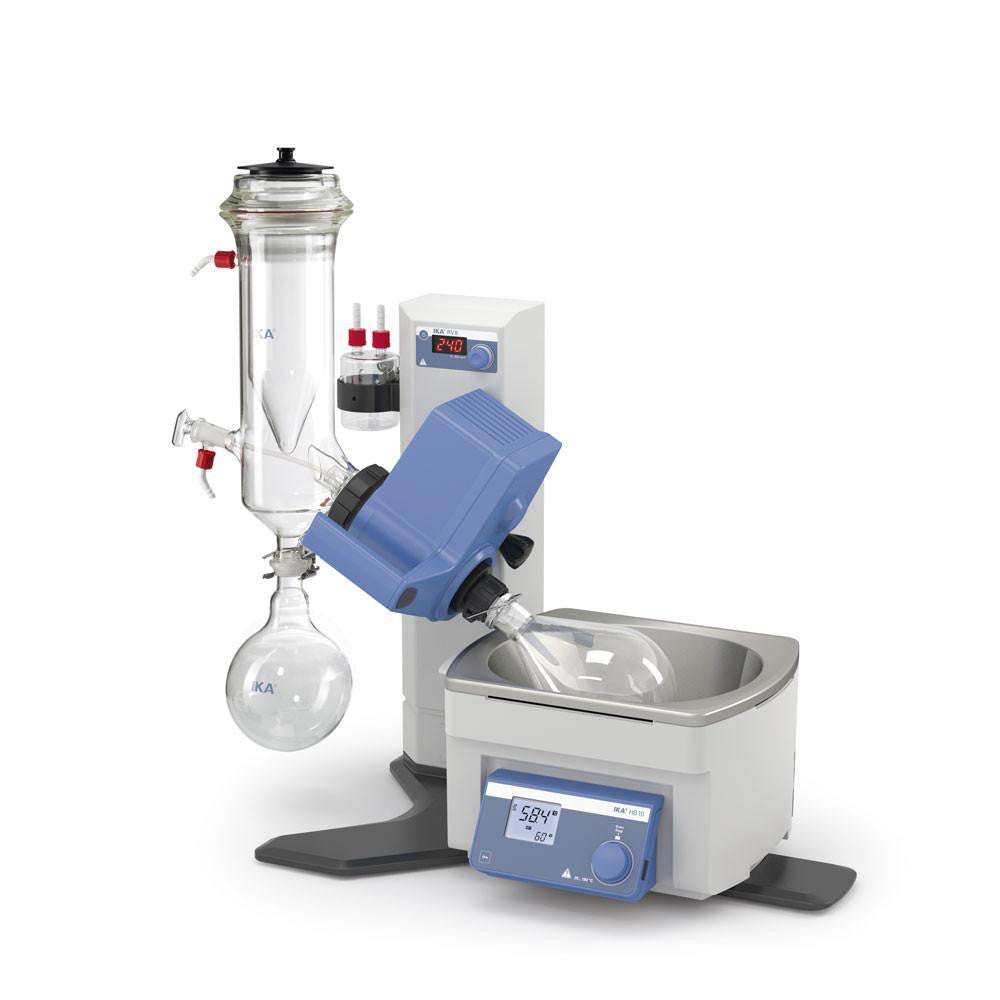

Rotary Evaporator RV 8 with Dry Ice Condenser

The IKA Rotary Evaporator RV 8 Series is the new family member in the IKA Line-up. This new entry model provides a high quality yet very cost effective solution. The manual lift, with ambidextrous design, allows for precise positioning of the glassware. Digital displays for rotation speed and heating bath temperature allow for optimal control of all distilling processes. New clamp mechanism to simplify the changing of evaporation flasks.

  • Manual lift with integrated safety “lift-out-function“
  • Water/oil heating bath with integrated ergonomic carrying handles
  • Key-button with locking function for the heating bath temperature
  • Adjustable immersion angle
  • Digital displays for rotation speed and heating bath temperature
  • Single-hand operation; ambidextrous design
  • Speed range 5 - 300 rpm
  • Additional user safety through reduced 24 V power requirements within the unit
  • Compatible with the complete range of IKA RV 10 glassware
  • New clamp mechanism


    **
    Package description: With heating bath HB 10 and RV 10.4 Dry Ice Condenser

    Specifications

    Type of cooling

    vertical

    Cooling surface

    620 cm2

    Motor principle

    DC

    Speed range

    5 - 300 rpm

    Reversible direction of rotation

    no

    Speed tolerance set rotation speed < 100rpm

    1 ±rpm

    Speed tolerance set rotation speed > 100rpm

    1 ±%

    Lift

    manual

    Stroke

    120 mm

    Heating temperature range

    Room temp. - 180 °C

    Heat output

    1300 W

    Heat control accuracy

    1 ±K

    Bath volume max.

    3 l

    Vacuum controller integrated

    no

    Timer

    no

    Dimensions (W x H x D)

    510 x 490 x 345 mm

    Weight

    15.5 kg

    Permissible ambient temperature

    5 - 40 °C

    Permissible relative humidity

    80 %

    Protection class according to DIN EN 60529

    IP 20

    RS 232 interface

    no

    USB interface

    no

    Analog output

    no

    Voltage

    100 - 240 V

    Frequency

    50/60 Hz

    Power input

    1400 W

    DC Voltage

    24 V=







    Rotary Evaporator RV 8 with Dry Ice Condenser

    The IKA Rotary Evaporator RV 8 Series is the new family member in the IKA Line-up. This new entry model provides a high quality yet very cost effective solution. The manual lift, with ambidextrous design, allows for precise positioning of the glassware. Digital displays for rotation speed and heating bath temperature allow for optimal control of all distilling processes. New clamp mechanism to simplify the changing of evaporation flasks.

    • Manual lift with integrated safety “lift-out-function“
    • Water/oil heating bath with integrated ergonomic carrying handles
    • Key-button with locking function for the heating bath temperature
    • Adjustable immersion angle
    • Digital displays for rotation speed and heating bath temperature
    • Single-hand operation; ambidextrous design
    • Speed range 5 - 300 rpm
    • Additional user safety through reduced 24 V power requirements within the unit
    • Compatible with the complete range of IKA RV 10 glassware
    • New clamp mechanism


      **
      Package description: With heating bath HB 10 and RV 10.4 Dry Ice Condenser

      Specifications

      Type of cooling

      vertical

      Cooling surface

      620 cm2

      Motor principle

      DC

      Speed range

      5 - 300 rpm

      Reversible direction of rotation

      no

      Speed tolerance set rotation speed < 100rpm

      1 ±rpm

      Speed tolerance set rotation speed > 100rpm

      1 ±%

      Lift

      manual

      Stroke

      120 mm

      Heating temperature range

      Room temp. - 180 °C

      Heat output

      1300 W

      Heat control accuracy

      1 ±K

      Bath volume max.

      3 l

      Vacuum controller integrated

      no

      Timer

      no

      Dimensions (W x H x D)

      510 x 490 x 345 mm

      Weight

      15.5 kg

      Permissible ambient temperature

      5 - 40 °C

      Permissible relative humidity

      80 %

      Protection class according to DIN EN 60529

      IP 20

      RS 232 interface

      no

      USB interface

      no

      Analog output

      no

      Voltage

      100 - 240 V

      Frequency

      50/60 Hz

      Power input

      1400 W

      DC Voltage

      24 V=
