Product Gallery Ai 1.9 CF Vacuum Chamber NO HEATING FUNCTION SST Tubing/Valves 110V - Chemtech Scientific 1.9 CF Vacuum Chamber NO HEATING FUNCTION SST Tubing/Valves 110V - Chemtech Scientific 1.9 CF Vacuum Chamber NO HEATING FUNCTION SST Tubing/Valves 110V - Chemtech Scientific

Last 5 Products Reviewed

Ai 1.9 CF Vacuum Chamber NO HEATING FUNCTION SST Tubing/Valves 110V

Price Each

Quantity

Price:

$ 0.00

Quantity:
Request Pricing

Introducing the new Ai AccuTemp 1.9 cubic foot vacuum chambers (no heating function), come standard with stainless steel tubing, stainless steel vacuum & vent valve, oil-filled vacuum gauge, and two year warranty. Every one of our vacuum chambers goes through a 2-time 24-hour vacuum leak test, and is 100% quality controlled in New Jersey or Nevada before leaving our facilities.

This vacuum chamber comes with NO shelves or shelf holders.



Features

  • All stainless steel internal tubingprovides higher ultimate vacuum, holds vacuum 10 times longer, and require minimum maintenance.
  • Oil-filled mechanical vacuum gaugeprovides more accurate reading, longer gauge life and minimizes shipping damage.

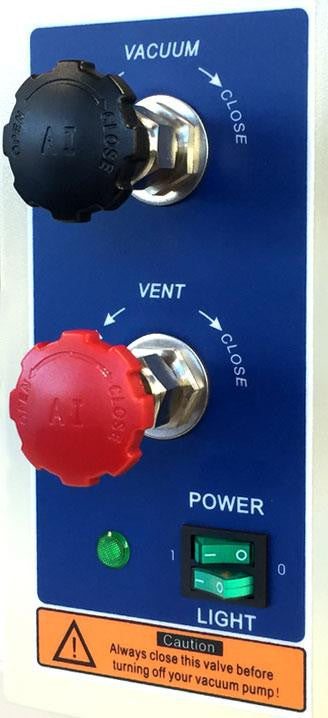

  • All stainless steel vacuum and vent valvesgives you cleaner connection, more accurate control and long term durability.
  • Adjustable gas back fill capabilitywith needle valve and vent port.
  • Dual layer observation window with 1/2" tempered safety glass.
  • 3" thermal insulation prevents heat loss and minimizes the enclosure's outer surface temperature.
  • Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
  • All units shipped from our New Jersey or Nevada location for quick delivery, and come with two year warrantyand lifetime US-based parts and service support.
  • Guaranteed US based phone and email assistance within 30 minutes from our engineers.

Manufactured in accordance with

  • ISO 9001:2000
  • ISO 12100-1:2003, ISO 12100-2:2003
  • EN1050:1996, EN294:1992, EN60204-1:2006
  • CE

Vacuum oven specifications

 Electrical requirements

 110V +/-10% 50/60Hz 1-PH, 20 watts

 Chamber

 Size: 16.5 x 14.5 x 14"  Material: Stainless steel  Capacity: 1.9 cubic foot

 Vacuum

 Ultimate vacuum level: better than 500 microns/millitorrs  (may vary based on your altitude. Mechanical gauge range: 0 to 30 inch mercury  Vacuum port: KF25 flange x 1  Vent port: 3/8" hose barb

 Weight

 Unit: 140 Lbs, shipping: 200 Lbs

 Dimensions (WxDxH)

 Unit: 28 x 20 x 21.75"  With handle and vacuum port: 28 x 23 x 21.75"  Shipping: 32 x 27 x 28"

 Door gasket material

 Silicone

 Observation window

 1/2" tempered safety glass

 In-door lights

 White LED

 CE compliance

 Yes



Standard package

 Part description

 Quantity

Part image

 1.9 cu ft vacuum chamber

1 pc

 KF25 quick clamp and centering ring

1 set

 User's manual

1 pc
