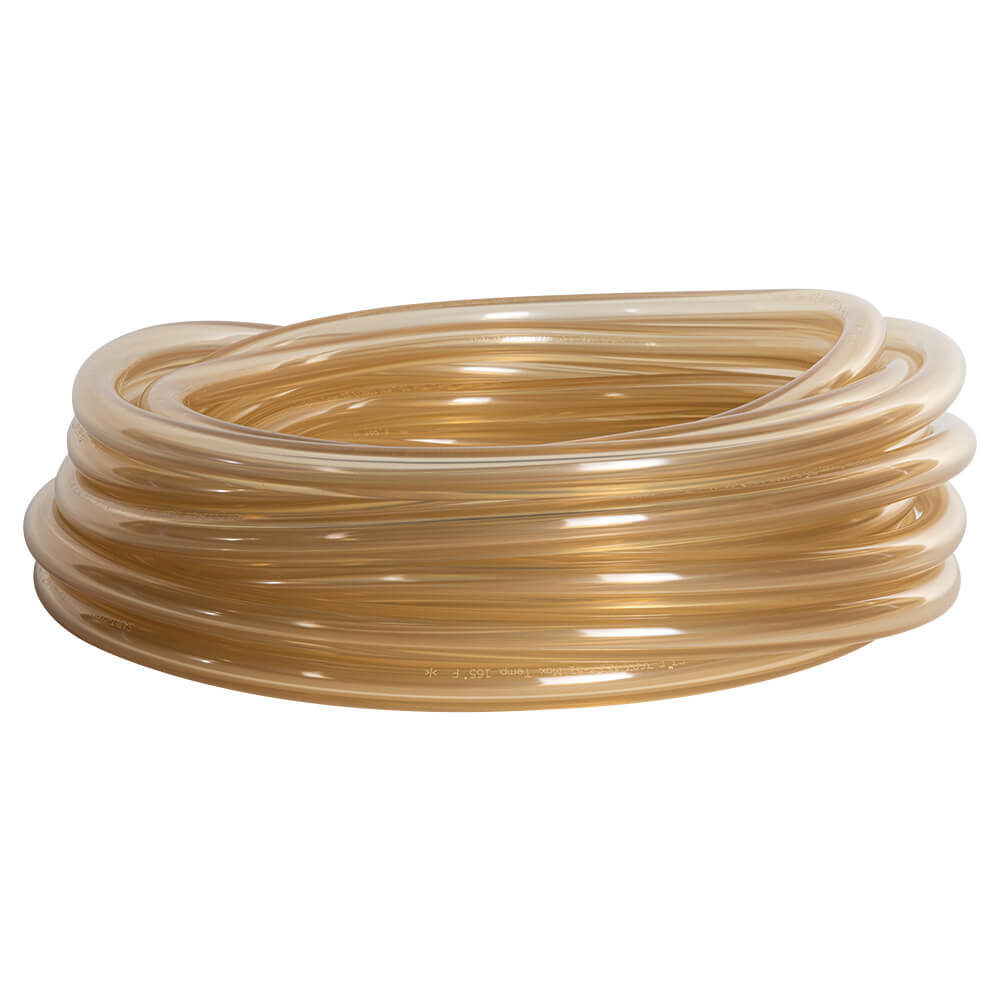

1/2" ID x 1-1/8" OD x 5/16" Wall Tygon® S3™ E-3603 Vacuum Tubing CS54704

CS54704

Tygon^® S3^™ E-3603, vacuum tubing has extra-heavy walls that will withstand a full vacuum at room temperature. The glassy-smooth inner bore helps prevent buildup to facilitate cleaning, and coils are marked at 1' (30.4 cm) intervals for easy measuring. The Tygon^® S3^™ E-3603 vacuum tubing has a tensile strength of 1,750 psi, ultimate elongation of 425%, and specific gravity of 1.21.

• BPA & phthalate-free
• Autoclavable (steam 30 minutes at 15 psi, 121°C); sterilize with ethylene oxide
• Minimum bend radius: 7/8"
• Maximum pressure rating @ 73°F: 45 psi
• Maximum vacuum rating @ 73°F: 29.9 in. Hg (759mm Hg) (27 in. Hg (686mm Hg) @ 140°F)
• Durometer hardness (shore A): 56
• Temperature range: -51°F to 165°F
• 10/2011/EU compliant for many foods & beverages
• Meets FDA, NSF, 3-A & USP Class VI standards
• Priced is per 5 foot, sold in 5' intervals - 50' max. length
• Country of Origin: USA
