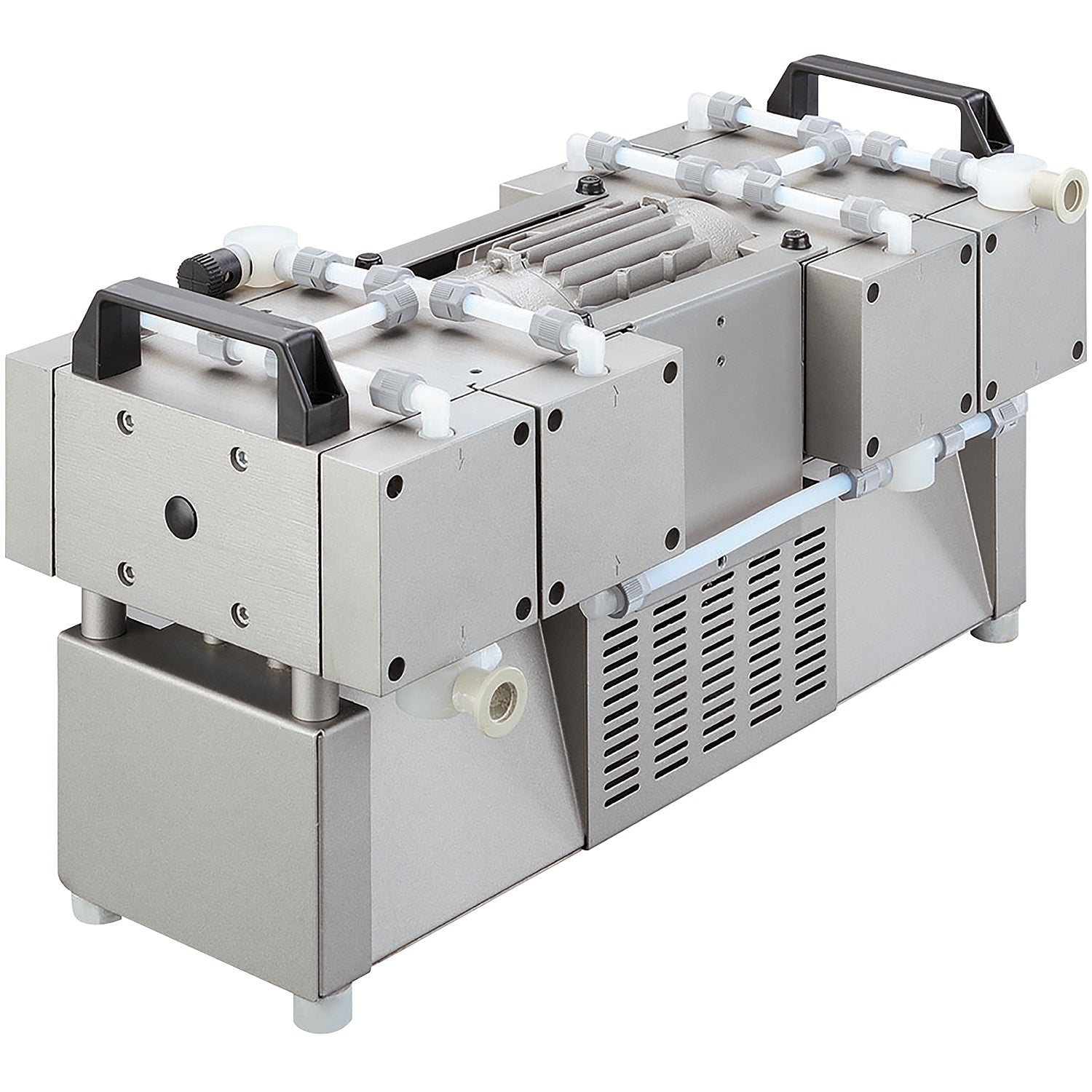

Welch 2064B-01 Oil-Free PTFE High Flow Vacuum Pump
Welch-Ilmvac 2064B-01 Dry Chemical Duty Vacuum PumpThe Welch-Ilmvac 2064B-01 is a powerful, dry, chemical duty vacuum pump. The strong flow of 173 lit/min, along with the deep ultimate vacuum of 6 Torr, makes this quiet diaphragm pump the perfect networked vacuum pump. The Ilmvac chemical duty pumps can be used for any harsh chemical service. The Ilmvac PTFE pumps are designed for quick and easy, infrequent maintenance. The Ilmvac PTFE pumps are light weight and quiet diaphragm membrane vacuum pumps providing excellent performance for rotary evaporators, vacuum ovens, degassing, mixing and networked vacuum projects. Key Features
Ideal Applications
The Welch-Ilmvac 2064B-01 delivers clean, reliable vacuum without oil contamination or the mess associated with traditional rotary vane pumps. Need help with setup or system design? Email support@chemtechsci.com or call (484) 424-9415. |
|
| What's included | 1/4" OD hose barb |
| Common accessory, not included | Vacuum Controller |
| Pumping Speed | 173 Lit/min. (6.1 CFM) |
| Max. Vacuum | 6 Torr (8 mbar) 29.7" Hg |
| Tubing Needed | 1/4" ID |
| Inlet Connection | UNIBARB |
| Exhaust | 1/4" OD |
| Dimensions LxWxH inches | 21x11x12 |
| Weight | 72 LBS |
| Wiring | 115V, 60 hz |
Welch-Ilmvac 2064B-01 Dry Chemical Duty Vacuum PumpThe Welch-Ilmvac 2064B-01 is a powerful, dry, chemical duty vacuum pump. The strong flow of 173 lit/min, along with the deep ultimate vacuum of 6 Torr, makes this quiet diaphragm pump the perfect networked vacuum pump. The Ilmvac chemical duty pumps can be used for any harsh chemical service. The Ilmvac PTFE pumps are designed for quick and easy, infrequent maintenance. The Ilmvac PTFE pumps are light weight and quiet diaphragm membrane vacuum pumps providing excellent performance for rotary evaporators, vacuum ovens, degassing, mixing and networked vacuum projects. Key Features
Ideal Applications
The Welch-Ilmvac 2064B-01 delivers clean, reliable vacuum without oil contamination or the mess associated with traditional rotary vane pumps. Need help with setup or system design? Email support@chemtechsci.com or call (484) 424-9415. |
|
| What's included | 1/4" OD hose barb |
| Common accessory, not included | Vacuum Controller |
| Pumping Speed | 173 Lit/min. (6.1 CFM) |
| Max. Vacuum | 6 Torr (8 mbar) 29.7" Hg |
| Tubing Needed | 1/4" ID |
| Inlet Connection | UNIBARB |
| Exhaust | 1/4" OD |
| Dimensions LxWxH inches | 21x11x12 |
| Weight | 72 LBS |
| Wiring | 115V, 60 hz |
