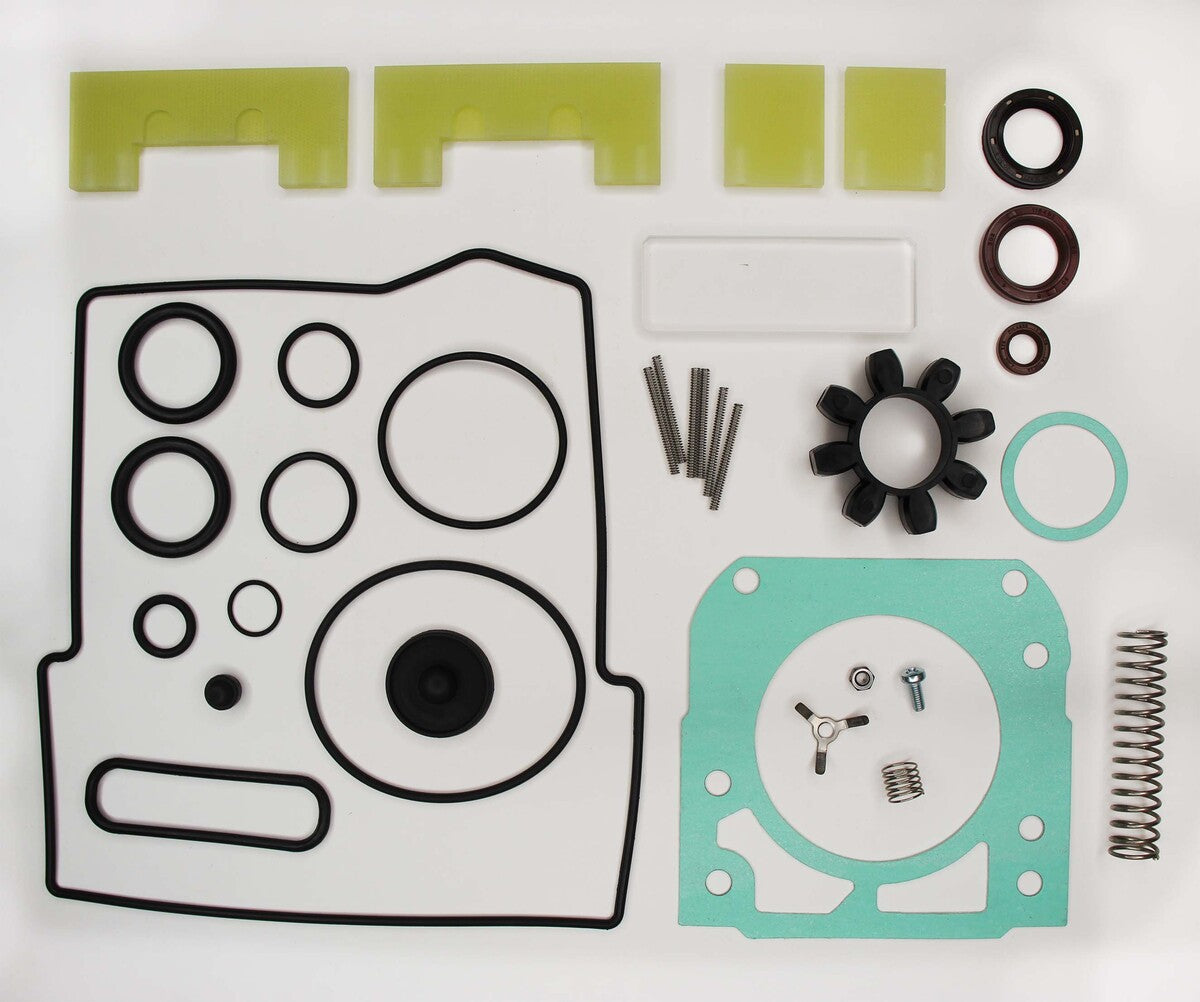

Service Kit, Welch CRVpro 24, WSK006
Used on Welch CRVpro 24 two stage rotary vane vacuum pumps
Part number alternatives: S3194-99
Oil Capacity: 2200 ml
Typical Applications:
- Glove Box
General product classifications
| Brand | Welch |
| Family | CRVpro |
| Pump models | CRVpro24 |
| Category | Repair Kits |
| Subcategory | Overhaul Kits |
| Country of origin | US |
| Part number alternatives | S3194-99 |
| PART NUMBER | DESCRIPTION | QUANTITY |
|---|---|---|
| 230099G | Vane,GX,Small,CRV Pro 16,24,30 | 2 |
| 230101G | Vane,GX,Large,CRVpro 24 | 2 |
| 300220 | O'ring,Formed,CRVpro 16/24/30 | 1 |
| 310156 | Seal,Shaft,Double Lip | 1 |
| 310157 | Seal,Shaft,Single Lip | 1 |
| 380053 | Plate,Valve,SS | 1 |
| 400083 | Screw,M4x10 Lg,Philip Pan Head | 1 |
| 420071 | Washer, Lock, Tripod, Large | 1 |
| 490081 | Spring,Vane,CRVpro | 6 |
| 410018 | Nut,Hex,M4x.7 | 1 |
| 490080 | Spring,comp,CRVpro | 1 |
| 490082 | Spring,comp,CRVpro | 1 |
| 500030 | Sight Glass,Rect, CRV 16/24/30 | 1 |
| 320539 | O'ring,Formed,Sight Glass | 1 |
| 300219 | Gasket,Case | 1 |
| 390026 | Valve, Nib, FKM | 1 |
| 26501032 | Coupling Element | 1 |
| 390027 | Valve, FKM, Top Hat | 1 |
| 300224 | Gasket,Ring | 1 |
| 02124025 | O-Ring,Viton,28 X 5 MM | 2 |
| 310155 | Seal,Shaft,Mini | 1 |
| 91311690100 | O-Ring, Viton, 14 x 3 mm | 1 |
| 320086 | O-Ring,Viton,14.5 X 1.5 MM | 1 |
| 320540 | O-Ring,FKM,21 x 2.6 mm | 1 |
| 320541 | O-Ring,FKM,26 x 2.5 mm | 1 |
| 320182 | O-Ring,Viton,75x3.0mm | 1 |
| 320114 | O-Ring,Viton,52 X 2.5 MM | 1 |
