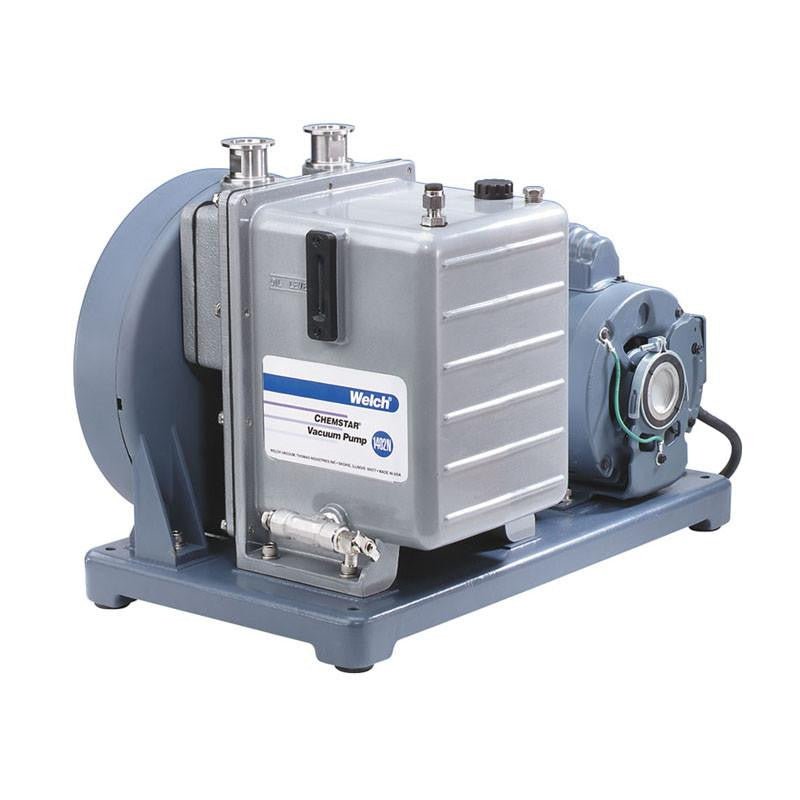

Welch 1376N-60 Chemstar Vacuum Pump
The Welch 1376N-60 Chemstar Vacuum Pump have a Teflon lined oil case and additional chemically resistant parts, making the Chemstar pump the best choice for harsh process emissions where an oil sealed vacuum pump is necessary.
ChemStar high vacuum pump Model 1376N provides versatile effectiveness for corrosive gas pumping or problematic drying operations. Use in pilot plant, scale-up operations, harsh chemical vessel evacuations, or light industrial operations. throughout the laboratory. With ultimate vacuum <0.001 torr, and maximum 300 lpm flow, use Model 1376N for large vacuum ovens (> 9 ft3), freeze drying generating corrosive vapors, etc.
Need technical advice or compatibility confirmation? Email support@chemtechsci.com or call (484) 424-9415.
| What's included | 3 liters Gold oil, 8995G-11 |
| Common accessory, not included | Exhaust filter 1417P-10 |
| Pumping Speed | 10.6 CFM (300 l/min) |
| Max. Vacuum | 0.001 Torr |
| Oil Capacity | 2.25 qt(2.1 l) |
| Tubing Needed | 13/16"(21 mm) |
| Exhaust / Intake Flange | NW 25 |
| Pump RPM | 525 |
| Dimensions LxWxH | 19.3"x12.3"x15.6" |
| Weight | 156 lb (71 kg) |
| Wiring | 230V, 60 hz |
The Welch 1376N-60 Chemstar Vacuum Pump have a Teflon lined oil case and additional chemically resistant parts, making the Chemstar pump the best choice for harsh process emissions where an oil sealed vacuum pump is necessary.
ChemStar high vacuum pump Model 1376N provides versatile effectiveness for corrosive gas pumping or problematic drying operations. Use in pilot plant, scale-up operations, harsh chemical vessel evacuations, or light industrial operations. throughout the laboratory. With ultimate vacuum <0.001 torr, and maximum 300 lpm flow, use Model 1376N for large vacuum ovens (> 9 ft3), freeze drying generating corrosive vapors, etc.
Need technical advice or compatibility confirmation? Email support@chemtechsci.com or call (484) 424-9415.
| What's included | 3 liters Gold oil, 8995G-11 |
| Common accessory, not included | Exhaust filter 1417P-10 |
| Pumping Speed | 10.6 CFM (300 l/min) |
| Max. Vacuum | 0.001 Torr |
| Oil Capacity | 2.25 qt(2.1 l) |
| Tubing Needed | 13/16"(21 mm) |
| Exhaust / Intake Flange | NW 25 |
| Pump RPM | 525 |
| Dimensions LxWxH | 19.3"x12.3"x15.6" |
| Weight | 156 lb (71 kg) |
| Wiring | 230V, 60 hz |
