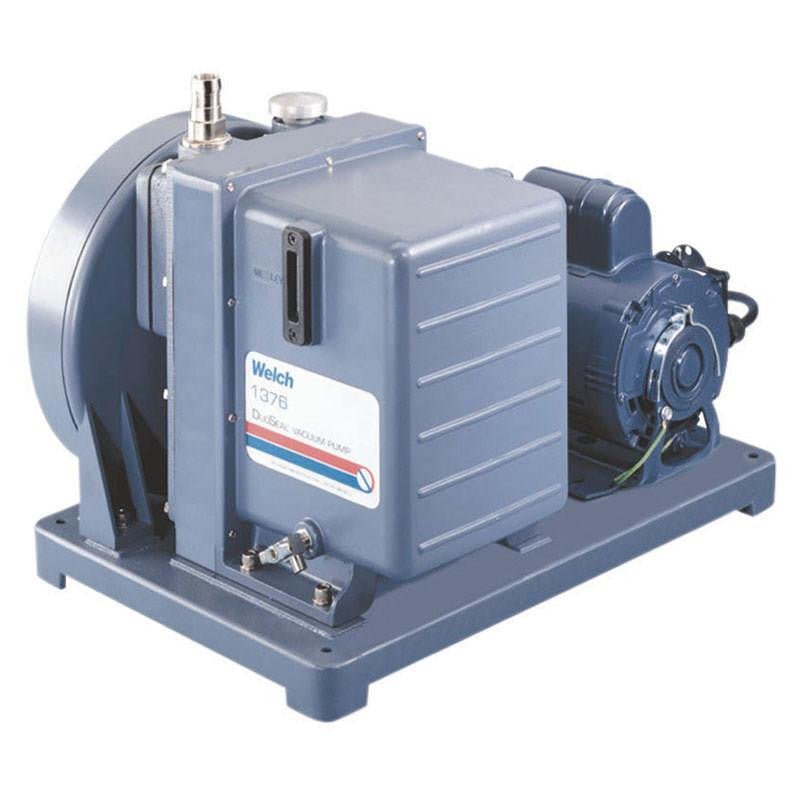

Welch 1376M-01 DUOSEAL Vacuum Pump – 10.6 CFM | 3-Phase 230V/460V
|
Welch 1376M-01 DUOSEAL Vacuum Pump – 10.6 CFM (3-Phase) The Welch 1376M-01 is a rugged and robust vacuum pump for applications requiring pressures < 1 Torr. The 1376M-01 achieves < 0.001 Torr with a pumping speed of 300 liters/min (10.6 CFM). Two stage, oil sealed vacuum pumps should not be operated continuously at pressures above 1 Torr. Operating this vacuum pump at higher pressure will induce excessive oil spraying from the exhaust of the vacuum pump causing premature failure and void warranty. Please consult your Chemtech Scientific Representative for consultation, should the ultimate pressure of your process run above 1 Torr. This is the fully mounted 3-Phase Motor version (230V / 460V, 60Hz), complete with base and motor. Key Features
Ideal Applications
The Welch 1376M-01 is a proven performer from the trusted DUOSEAL series. Questions about voltage, wiring, or service? Email support@chemtechsci.com or call (484) 424-9415. |
|
| What's included | 3 qts DuoSeal oil |
| Pumping Speed | 10.6 CFM (300 l/min) |
| Max. Vacuum | 0.001 torr |
| Oil Capacity | 2.5 qt(2.4 l) |
| Tubing Needed | 13/16(21) |
| Exhaust / Intake threads | 1-20 |
| Pump RPM | 525 |
| Dimensions LxWxH | 20"x14"x15" |
| Weight | 156 lb (71 kg) |
| Wiring | 3-Phase Motor 230V, 460V, 60Hz |
|
Welch 1376M-01 DUOSEAL Vacuum Pump – 10.6 CFM (3-Phase) The Welch 1376M-01 is a rugged and robust vacuum pump for applications requiring pressures < 1 Torr. The 1376M-01 achieves < 0.001 Torr with a pumping speed of 300 liters/min (10.6 CFM). Two stage, oil sealed vacuum pumps should not be operated continuously at pressures above 1 Torr. Operating this vacuum pump at higher pressure will induce excessive oil spraying from the exhaust of the vacuum pump causing premature failure and void warranty. Please consult your Chemtech Scientific Representative for consultation, should the ultimate pressure of your process run above 1 Torr. This is the fully mounted 3-Phase Motor version (230V / 460V, 60Hz), complete with base and motor. Key Features
Ideal Applications
The Welch 1376M-01 is a proven performer from the trusted DUOSEAL series. Questions about voltage, wiring, or service? Email support@chemtechsci.com or call (484) 424-9415. |
|
| What's included | 3 qts DuoSeal oil |
| Pumping Speed | 10.6 CFM (300 l/min) |
| Max. Vacuum | 0.001 torr |
| Oil Capacity | 2.5 qt(2.4 l) |
| Tubing Needed | 13/16(21) |
| Exhaust / Intake threads | 1-20 |
| Pump RPM | 525 |
| Dimensions LxWxH | 20"x14"x15" |
| Weight | 156 lb (71 kg) |
| Wiring | 3-Phase Motor 230V, 460V, 60Hz |
