Welch 1376M-01 Vacuum Pump

Price Each

Quantity

Price:

$ 5,082.92

 $ 6,124.00
Quantity:
Add to Cart

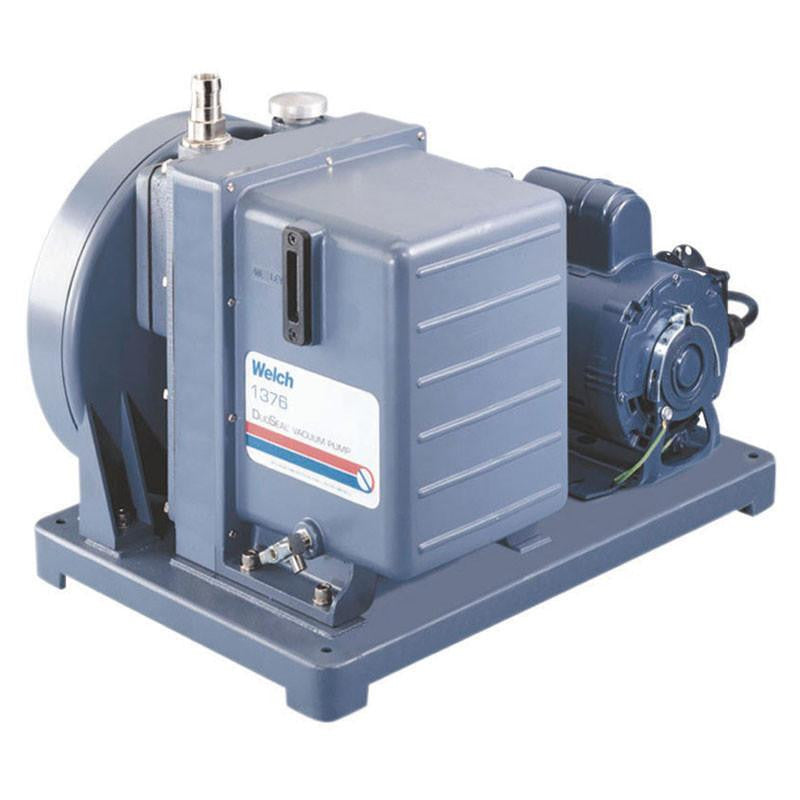

The Welch 1376M-01 vacuum pump is a rugged and robust vacuum pump for applications requiring pressures < 1 Torr. The 1376M-01 achieves < 0.001 Torr with a pumping speed of 300 liters/min (10.6 CFM).

Two stage, oil sealed vacuum pumps should not be operated continuously at pressures above 1 Torr. Operating this vacuum pump at higher pressure will induce excessive oil spraying from the exhaust of the vacuum pump causing premature failure and void warranty. Please consult your Chemtech Scientific Representative for consultation, should the ultimate pressure of your process run above 1 Torr.

What's included 3 qts DuoSeal oil
Pumping Speed 10.6 CFM (300 l/min)
Max. Vacuum 0.001 torr
Oil Capacity 2.5 qt(2.4 l)
Tubing Needed 13/16(21)
Exhaust / Intake threads 1-20
Pump RPM 525
Dimensions LxWxH 20"x14"x15"
Weight 156 lb (71 kg)
Wiring 3-Phase Motor 230V, 460V, 60Hz

The Welch 1376M-01 vacuum pump is a rugged and robust vacuum pump for applications requiring pressures < 1 Torr. The 1376M-01 achieves < 0.001 Torr with a pumping speed of 300 liters/min (10.6 CFM).

Two stage, oil sealed vacuum pumps should not be operated continuously at pressures above 1 Torr. Operating this vacuum pump at higher pressure will induce excessive oil spraying from the exhaust of the vacuum pump causing premature failure and void warranty. Please consult your Chemtech Scientific Representative for consultation, should the ultimate pressure of your process run above 1 Torr.

What's included 3 qts DuoSeal oil
Pumping Speed 10.6 CFM (300 l/min)
Max. Vacuum 0.001 torr
Oil Capacity 2.5 qt(2.4 l)
Tubing Needed 13/16(21)
Exhaust / Intake threads 1-20
Pump RPM 525
Dimensions LxWxH 20"x14"x15"
Weight 156 lb (71 kg)
Wiring 3-Phase Motor 230V, 460V, 60Hz
