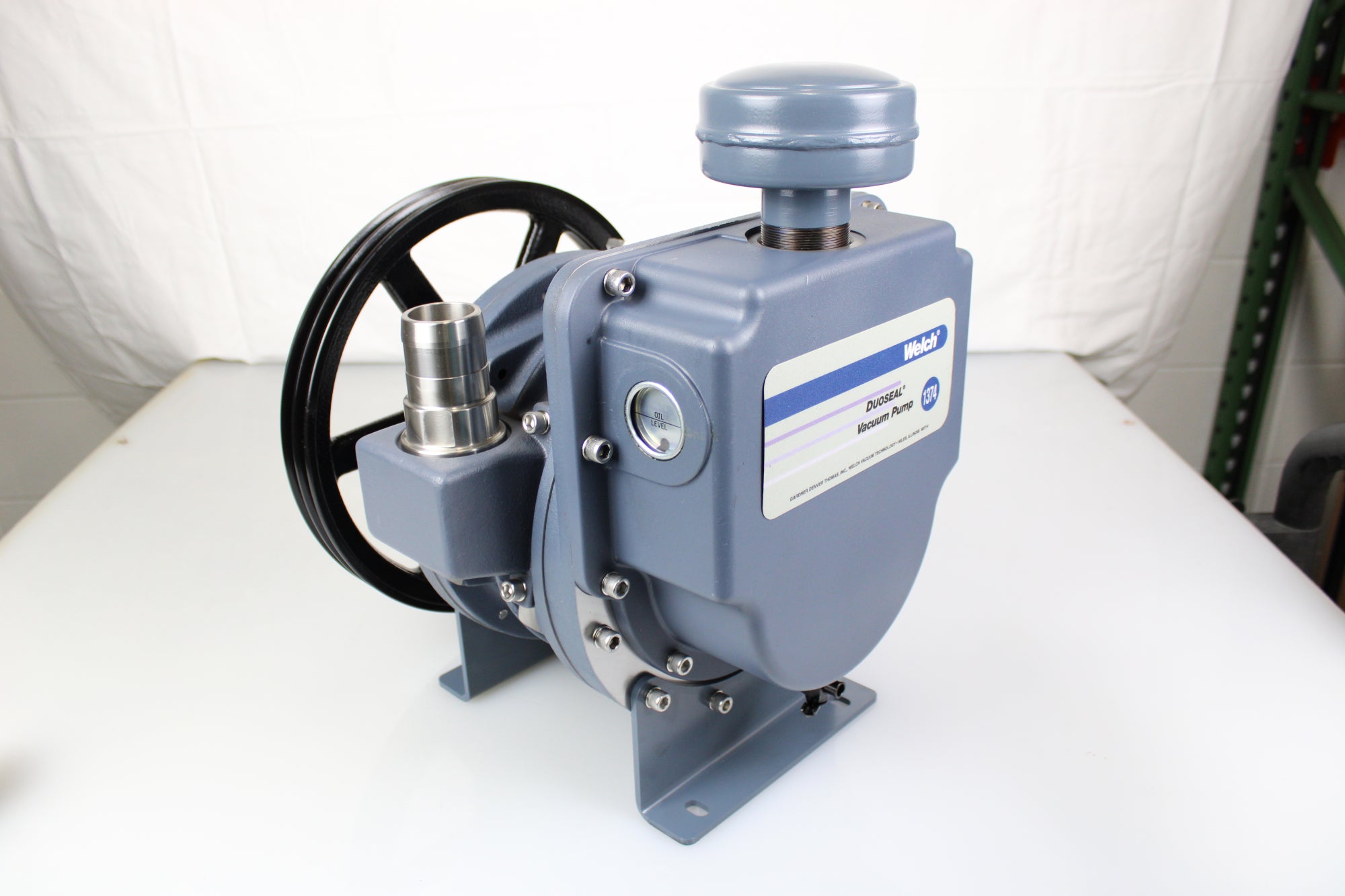

Welch DuoSeal Unmounted Pump 1374
This product is an unmounted pump and a component to a complete belt driven vacuum pump. The Welch DuoSeal Unmounted Pump 1374 requires a base, motor and belt to generate vacuum. This product can only be used as a drop in replacement for the pump component of a complete vacuum pump.
| Pumping Speed | 23 CFM (650 l/min) |
| Max. Vacuum | 0.001 torr |
| Oil Capacity | 1.25 qt(1.2 l) |
| Tubing Needed | 1-5/8(41) |
| Exhaust / Intake threads | 1.75-20 |
| Pump RPM | 510 |
| Dimensions LxWxH | 26"x13.7"x18.8" |
| Weight | 85 lb (100 kg) |
This product is an unmounted pump and a component to a complete belt driven vacuum pump. The Welch DuoSeal Unmounted Pump 1374 requires a base, motor and belt to generate vacuum. This product can only be used as a drop in replacement for the pump component of a complete vacuum pump.
| Pumping Speed | 23 CFM (650 l/min) |
| Max. Vacuum | 0.001 torr |
| Oil Capacity | 1.25 qt(1.2 l) |
| Tubing Needed | 1-5/8(41) |
| Exhaust / Intake threads | 1.75-20 |
| Pump RPM | 510 |
| Dimensions LxWxH | 26"x13.7"x18.8" |
| Weight | 85 lb (100 kg) |
