DASH TriSENS High Vacuum Gauge

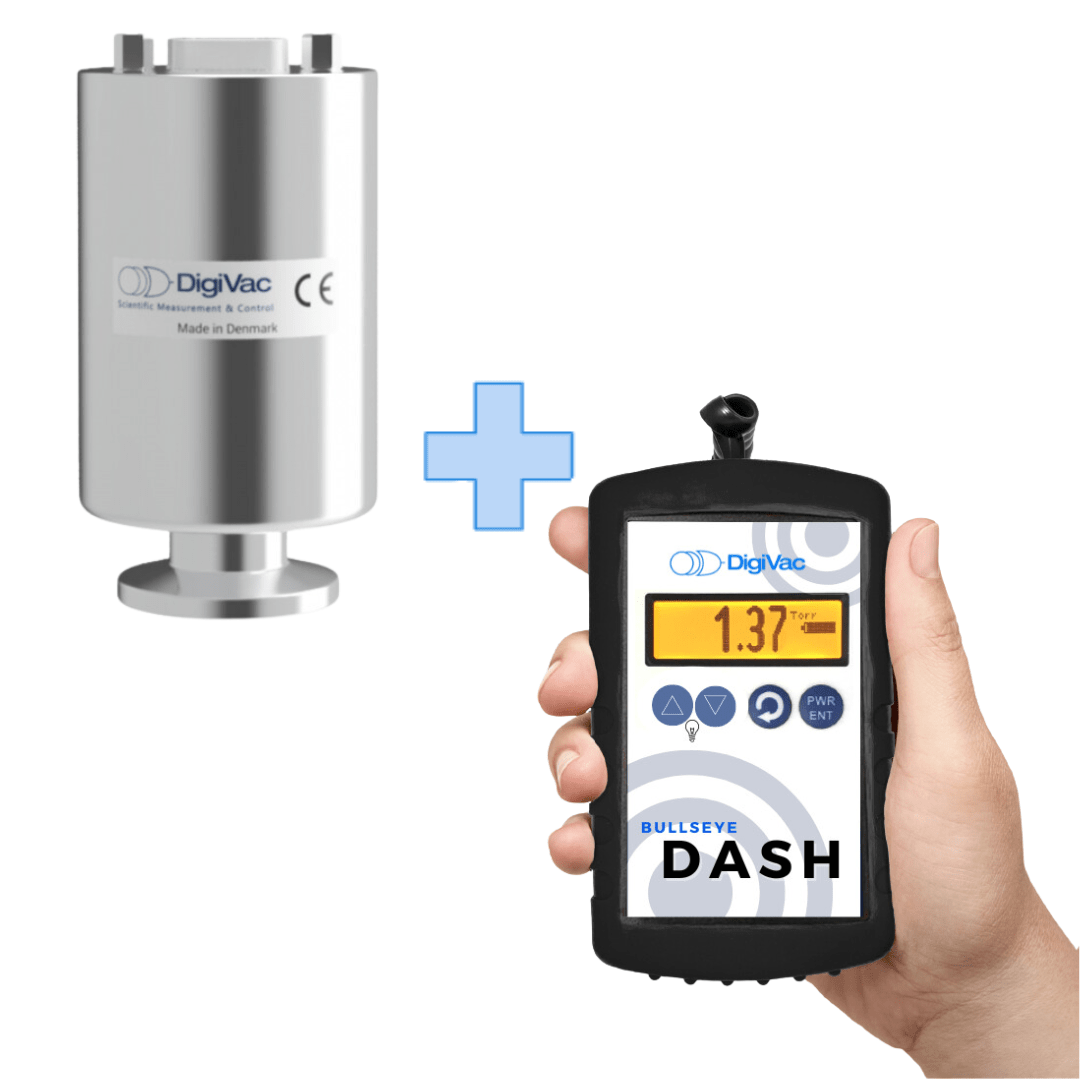

DASH TriSENS High Vacuum Gauge | Includes the DASH Battery Powered Vacuum Gauge with TriSENS DPCP Sensor
The DASH portable high vacuum gauge paired with the triple sensor gauge combines 3 very useful applications in one: let’s you know when you system is clean and has reached high vacuum, using a 10 Torr capacitance manometer for highly accurate process control, and a piezo sensor for accuracy at rough vacuum to atmosphere
The DASH TriSENS high vacuum gauge is the only Portable Battery operated high vacuum gauge with a LED pressure indicator. The all-in-one ultra wide range vacuum sensor combines 3 vacuum technologies: the novel MEMS pirani, Capacitive (Capacitance Manometer) and Piezo technology to deliver a measurement range of 7.5 x 10 -6 to 1000 Torr.
The Digivac TriSENS Vacuum Sensor Delivers High Vacuum Measurement + Process Control + Overpressure Indication All in One.
With the combined usage of the ultra wide range TriSENS DPCP and DASH you no longer will have to use multiple sensors to interpret the process and data.
Bullseye DASH high vacuum gauge Stands For:
- D – Direct Measurement of Capacitance Manometer
- A – Active Monitoring
- S – Scientific Applications
- H – Historical Data Tracking, High (Vacuum)
Portable and Precise
- Includes a powerful magnet and kickstand to enable hands-free operation
- Solid state electronics built into a handheld gauge that operates using AA batteries (4) and lasts 20 hours when used with a porter CM or 7 hours with a standard ambient capacitance manometer
- Versatility with 12 different measuring units (micron, Torr, Inches of Hg, kPa, Inches of H20, millitorr, mbar, Pa, PSIA, mm of Hg, bar, and mm of H2O)
- This Portable Capacitance Manometer has the option to be powered with a Micro-USB power supply
- Calibrated under actual vacuum against a NIST standard (NIST certification and documentation is optional)
DPCP Quantum | TriSENS Vacuum Sensor
The Digivac TriSENS Vacuum Sensor Delivers High Vacuum Measurement + Process Control + Overpressure Indication All in One
Deep & Wide Vacuum Measurement
Highly accurate direct pressure measurement down to 10 microns (.01 Torr) combined with high vacuum measurement down to 10-6
High Vacuum Gauge Measurement range: 7.5×10-6 to 1000 Torr
Contamination Containment
Integrated baffle helps protect sensor elements from particulate contamination and increase its longevity
Visual Process Indicator
Multi-color LEDs to indicate pressure range. Includes a bright yellow overpressure indicator to help you avoid system damage. This is very useful when not using a display controller
The DPCP Quantum | TriSENS Vacuum Sensor establishes new standards with an all-in-one wide range measurement solution for a wide selection of vacuum applications. This transducer is an overall cost-effective solution with an ultra-wide 9 decade range that includes 5 decades of gas independent measurement. The Digivac TriSENS: Quantum Pirani, Capacitance, Piezo all-in-one gauge
High Vacuum Gauge Advantages
- Deep & wide measuring range of 9 decades delivered by an all-in-one gauge that combines pirani,
capacitance manometer, and piezo technology - 6 decades of gas independent measurement| 5×10-3 to 1333 mbar
- Reliable solid-state relay for process control
- 0-10V for PLC Input
- LED Color Pressure Indicator
- Robust ceramic capacitance diaphragm gauge
- Mountable in any orientation without impact on performance
Applications
- PVD Coating Equipment
- Freeze Drying endpoint detection
- Load lock control
- Mass Spectrometry
- Scanning electron microscopy
- Semiconductor
- Research
- Vacuum pump service
- Heat treatment, Vacuum furnaces
Why is the Quantum Gauge Series a Quantum Leap for Vacuum Measurement?
The Quantum Gauge Series is a quantum leap in simplicity and range for vacuum gauging. Smart pairings of sensor technologies that deliver what people really need.
All-in-one, highly accurate wide range vacuum measurement at a cost-effective price point.
Accuracy Specifications:
