Product Gallery Major Rebuild Kit with Vanes 3238

Accepted at Checkout

Last 5 Products Reviewed

Major Rebuild Kit with Vanes 3238

Price Each

Quantity

Price:

$ 1,015.56

 $ 1,419.60
Quantity:
Add to Cart

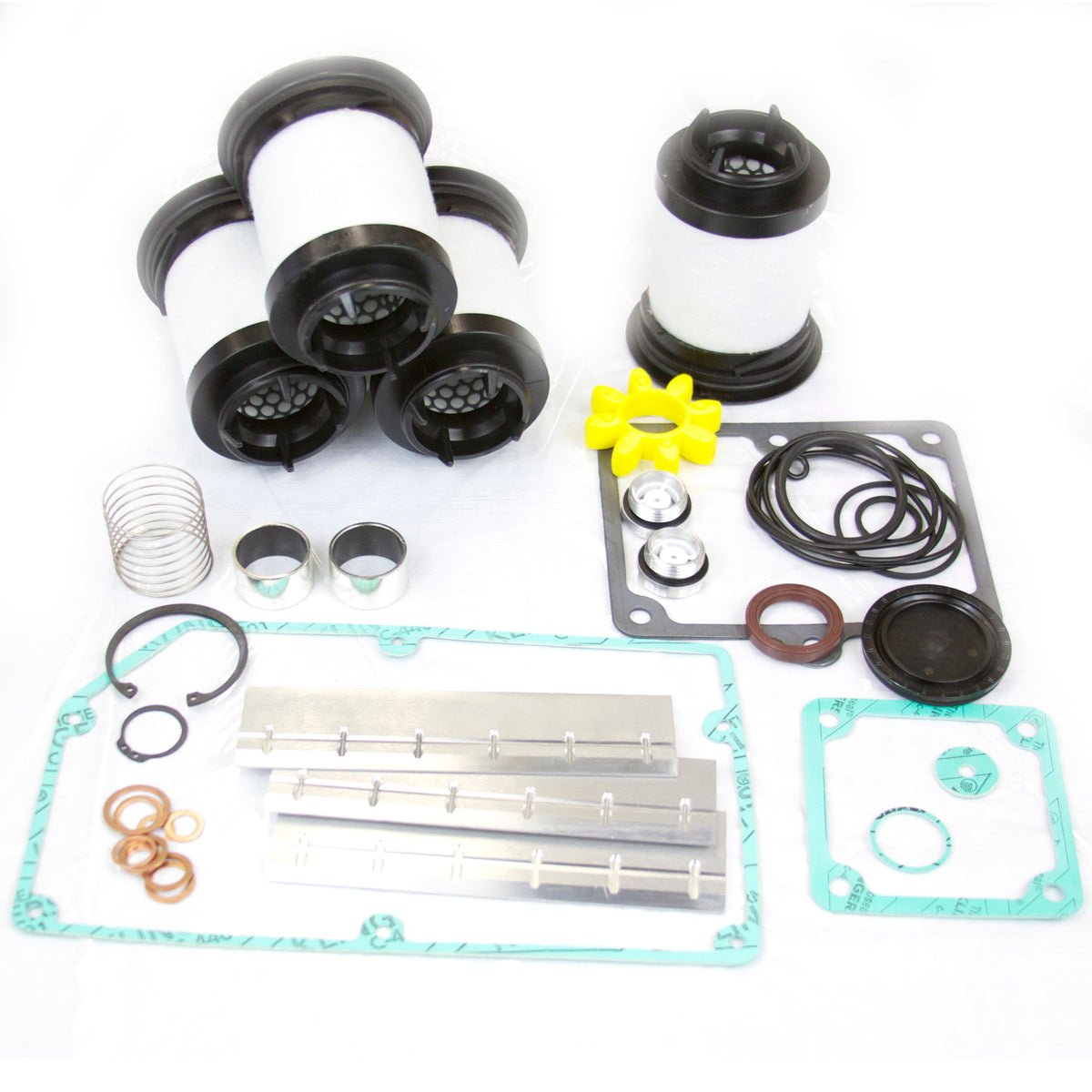

Major Rebuild Kit with Vanes includes; exhaust filters & access panel O-rings & gaskets, O-rings, Vanes, bearings, couplings, sight glass & other components for major overhaul.

General product classifications

Brand Rietschle
Family V-VC
Pump models VC150
Category Repair Kits
Subcategory Major Kit
Country of origin US
Manual page RIETSCHLE-86


PART NUMBER DESCRIPTION QUANTITY
320231 O-ring, 53.57 x 3 mm - Viton, Part# 320231 1
527601 Inlet Gasket, Rietschle, V-VC, VC100, VC150, Part# 527601 1
527832 Rectangular Gasket, Rietschle, V-VC, VC100, VC150, Part# 527832 1
731468 Rietschle Exhaust filter for V VC pump, Part# 731468 4
725013 Sight Glass Assembly, Rietschle, V-VCA-VCE, V-VC, Part# 725013 2
716292 Compression Spring, Steel - Rietschle V - VC, Part# 716292 1
704532 ring Gasket, Copper, Rietschle, V-VC, Part# 704532 4
320229 O-ring, 29.87 x 1.5 mm - Buna, Part# 320229 1
300121 Ring Gasket, Rietschle, V-VCA-VCE, V-VC, Part# 300121 1
212967 Plate Valve Assembly with Viton O-ring, Rietschle, V-VC, Part# 212967 1
320379 O-ring, 157 x 3 mm - Viton, Part# 320379 2
82018 O-ring, 53.34 x 5.33 mm - Viton, Part# 82018 1
704044 Oil Cap Sealing ring Gasket-Rietschle V-VCA-VCE, V-VC, Part# 704044 1
704038 Ring Gasket, Rietschle, V-VC, Part# 704038 1
704021 ring Gasket, Copper, Rietschle, V-VCA-VCE, V-VC, Part# 704021 1
704014 Ring Gasket, Copper, Rietschle, V-VC, Part# 704014 1
704020 ring Gasket, Copper, Rietschle, V-VCA-VCE, V-VC, Part# 704020 4
622009 Retaining ring, External, 23.2 ID x 1.18 mm, Rietschle, V-VC, Part# 622009 1
604725 Shaft Seal, Viton - 30 x 42 x 7mm, Rietschle, V-VC, Part# 604725 1
622730 Retaining ring, Internal, Steel 2.35 ID x 0.078, Rietschle, V-VC, Part# 622730 1
600080 Shaft Sleeve, Steel- Rietschle, V-VC, Part# 600080 2
528129 Vane - Aluminium Alloy, Rietschle, V - VC, VC100, VC150, Part# 528129 3
527986 Rectangular Gasket-Rietschle V-VC, Part# 527986 1
PL70100330 Spider Coupling, Trasco 28, Leybold, V-VC, Part# PL70100330 1

Major Rebuild Kit with Vanes includes; exhaust filters & access panel O-rings & gaskets, O-rings, Vanes, bearings, couplings, sight glass & other components for major overhaul.

General product classifications

Brand Rietschle
Family V-VC
Pump models VC150
Category Repair Kits
Subcategory Major Kit
Country of origin US
Manual page RIETSCHLE-86


PART NUMBER DESCRIPTION QUANTITY
320231 O-ring, 53.57 x 3 mm - Viton, Part# 320231 1
527601 Inlet Gasket, Rietschle, V-VC, VC100, VC150, Part# 527601 1
527832 Rectangular Gasket, Rietschle, V-VC, VC100, VC150, Part# 527832 1
731468 Rietschle Exhaust filter for V VC pump, Part# 731468 4
725013 Sight Glass Assembly, Rietschle, V-VCA-VCE, V-VC, Part# 725013 2
716292 Compression Spring, Steel - Rietschle V - VC, Part# 716292 1
704532 ring Gasket, Copper, Rietschle, V-VC, Part# 704532 4
320229 O-ring, 29.87 x 1.5 mm - Buna, Part# 320229 1
300121 Ring Gasket, Rietschle, V-VCA-VCE, V-VC, Part# 300121 1
212967 Plate Valve Assembly with Viton O-ring, Rietschle, V-VC, Part# 212967 1
320379 O-ring, 157 x 3 mm - Viton, Part# 320379 2
82018 O-ring, 53.34 x 5.33 mm - Viton, Part# 82018 1
704044 Oil Cap Sealing ring Gasket-Rietschle V-VCA-VCE, V-VC, Part# 704044 1
704038 Ring Gasket, Rietschle, V-VC, Part# 704038 1
704021 ring Gasket, Copper, Rietschle, V-VCA-VCE, V-VC, Part# 704021 1
704014 Ring Gasket, Copper, Rietschle, V-VC, Part# 704014 1
704020 ring Gasket, Copper, Rietschle, V-VCA-VCE, V-VC, Part# 704020 4
622009 Retaining ring, External, 23.2 ID x 1.18 mm, Rietschle, V-VC, Part# 622009 1
604725 Shaft Seal, Viton - 30 x 42 x 7mm, Rietschle, V-VC, Part# 604725 1
622730 Retaining ring, Internal, Steel 2.35 ID x 0.078, Rietschle, V-VC, Part# 622730 1
600080 Shaft Sleeve, Steel- Rietschle, V-VC, Part# 600080 2
528129 Vane - Aluminium Alloy, Rietschle, V - VC, VC100, VC150, Part# 528129 3
527986 Rectangular Gasket-Rietschle V-VC, Part# 527986 1
PL70100330 Spider Coupling, Trasco 28, Leybold, V-VC, Part# PL70100330 1
